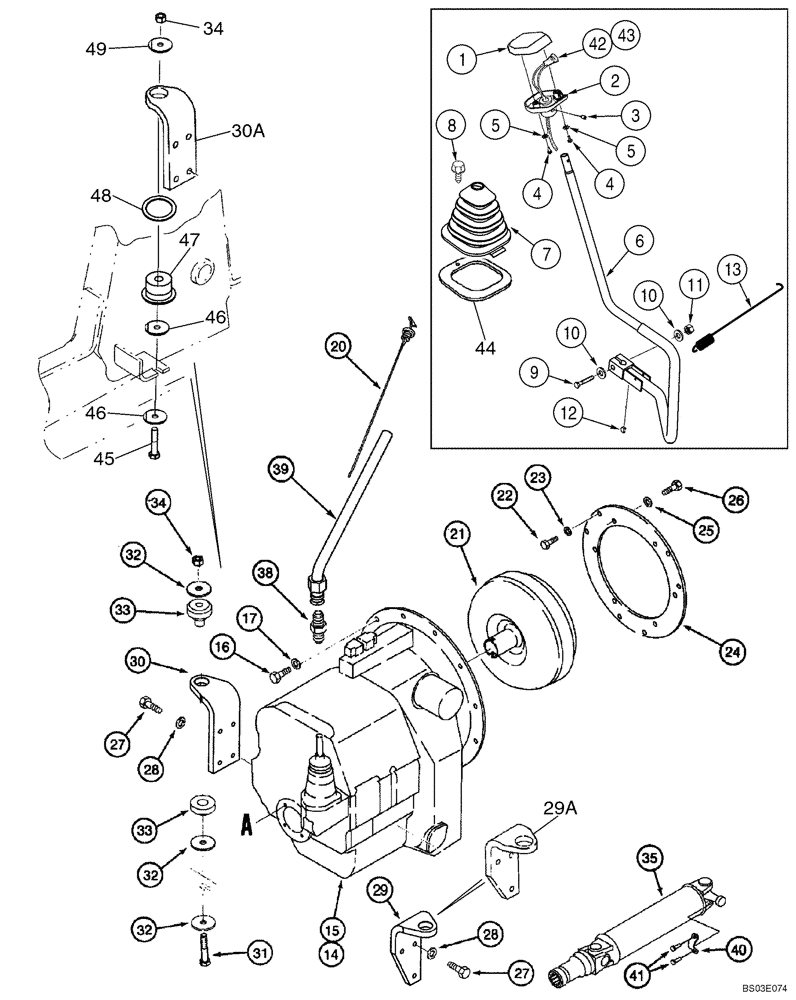

Запчасти Case 580SM (06-12) - TRANSMISSION - MOUNTING (MODELS WITHOUT POWERSHIFT) (06) - POWER TRAIN

309747A1

KNOB

Gear Shift Lever, Includes NSS Gasket, Incl. Ref 1, 2, 4, 5

1шт.

NSS

NOT SOLD SEPARAT

GASKET, Knob

2шт.

1

187714A1

KNOB

Upper

1шт.

2

187715A1

KNOB

Lower

1шт.

3

484-6316

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

1шт.

4

459-11014

SCREW,Pan HD, #10 - 32 x 7/8"

Use With Loctite 242

2шт.

5

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

6

379314A4

LEVER

Gear Shift

1шт.

7

400588A2

BOOT

1шт.

8

87310096

BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer

1шт.

9

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

12

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

13

380537A2

SPRING,Extension, 20.10mm x 38mm L

1шт.

14

329076A3

TRANSMISSION

Two Wheel Drive Models, Replaces 329076A1, 329076A2; See Figure 06-14 - 06-23

1шт.

14

329076A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

14

329076A3C

CORE-TRANSMISSION

Return Part Number

1шт.

15

329079A3

TRANSMISSION

Four Wheel Drive Models, Replaces 329079A1, 329079A2; See Figure 06-14 - 06-24

1шт.

15

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

15

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

20

370630A1

DIPSTICK,669mm L

1шт.

21

1995137C1

CONVERTER

Torque Converter, New

1шт.

21

1995137C1R

REMAN-TORQUE CONVERT

ER Remanufactured, Component Parts Not Serviced Separately

1шт.

21

1995137C1C

CORE-TORQUE CONVERTR

Core-Torque Converter Return Part Number, Use To Return Core For Credit When Using a Remanufactured Assembly

1шт.

22

428-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

6шт.

23

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

6шт.

24

A178706

PLATE

Adapter, Torque Converter to Engine Flywheel

1шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

26

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

6шт.

27

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Replaces 614-12040 40 mm long bolt used on some models

7шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

29

371729A1

MOUNTING PARTS

Right-Hand Bracket, 38.29 mm (1-1/2 in) Diameter Hole; If Used

1шт.

29a

411713A1

MOUNTING PARTS

Right-Hand Bracket, 60.5 mm (2-3/8 in) Diameter Hole; If Used

1шт.

30

371728A1

MOUNTING PARTS

Left-Hand Bracket, 38.29 mm (1-1/2 in) Diameter Hole; If Used

1шт.

30a

411714A1

MOUNTING PARTS

Left-Hand Bracket, 60.5 mm (2-3/8 in) Diameter Hole; If Used

1шт.

31

814-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

If used

2шт.

32

D35009

WASHER

Special, If Used

6шт.

33

117846A1

INSULATOR BLOCK,16.69mm ID x 64.8mm OD x 84.6mm L

Two Piece, Engine Mounting, Rear; If Used

2шт.

34

832-10416

NUT,M16 x 2, Cl 8

2шт.

35

367860A3

DRIVE SHAFT

Transmission to Rear Axle, See Figure 06-47

1шт.

38

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

39

395344A1

TUBE,25.4mm OD x 397.85 L

Dipstick

1шт.

40

90-6682T1

CLAMP

2шт.

41

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16; Replaces D137627 Bolt

4шт.

42

123097A1

SWITCH

Push Button, Clutch Cutout

1шт.

43

123809A2

WIRE HARNESS

Clutch Cutout, Transmission Gear Shift Lever

1шт.

44

410561A1

SEAL,133mm L

Shift Lever Boot, Cab Models

1шт.

45

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

If used

2шт.

46

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

If Used

4шт.

47

411623A1

RUBBER MOUNTING

One Piece (19.6 mm ID) If Used

2шт.

48

413459A1

SHIM

If Used

2шт.

49

413460A1

SHIM

If Used

2шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.
