(06-08) - AXLE, FRONT DRIVE - RING AND PINION

Запчасти Case 580SM (06-08) - AXLE, FRONT DRIVE - RING AND PINION (06) - POWER TRAIN

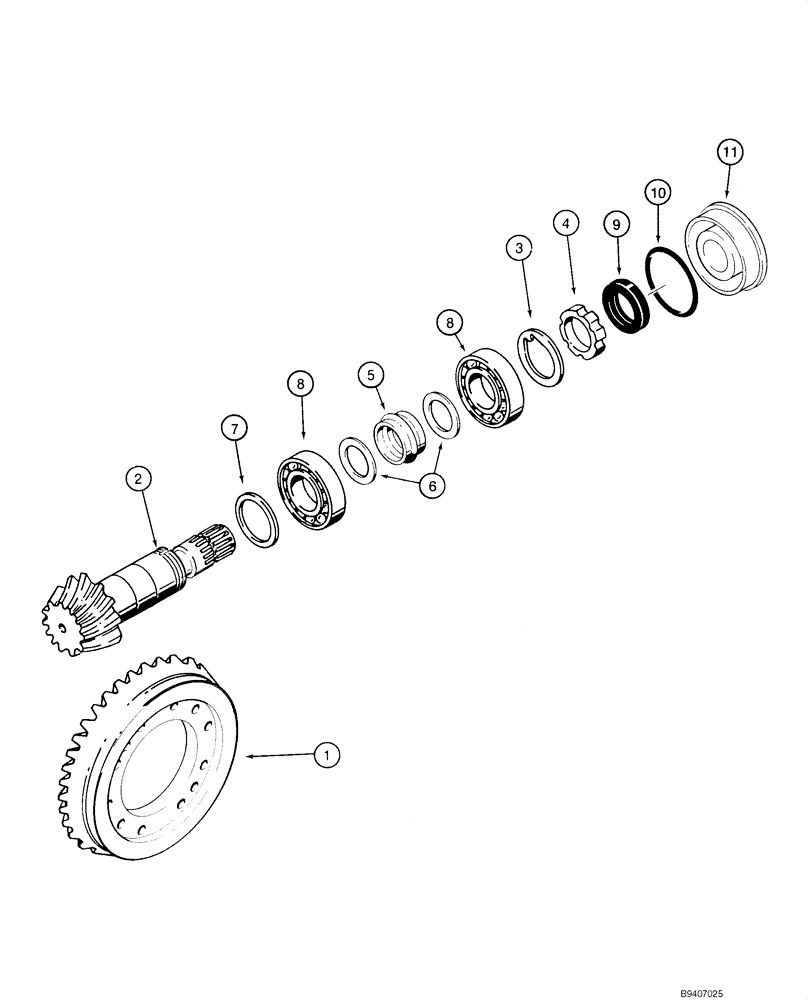

Схема запчастей Case 580SM - (06-08) - AXLE, FRONT DRIVE - RING AND PINION (06) - POWER TRAIN
8
6
11
3
8
9
2
7
10
1
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

381380A1

4WD AXLE ASSY

Front, Models Without Powershift Transmission, Prior to P.I.N. JJG0281494, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08; No Longer Available, Order 427084A1 Axle

1шт.

Repair and exchange component available - call Avatar Components, 1-800-453-3544, ext. 122.

1шт.

427084A1

4WD AXLE ASSY

Front, Models Without Powershift Transmission, P.I.N. JJG0281494 & After; Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08

1шт.

381381A1

4WD AXLE ASSY

Front, Models With Powershift Transmission, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08; No Longer Available, Order 381381A2 Axle

1шт.

381381A2

4WD AXLE ASSY

Front, Models With Powershift Transmission, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08

1шт.

144460A1

GEAR SET

Ring and Pinion, Incl Ref 1 - 6; 381380A1 or 427084A1 Axle

1шт.

311046A1

GEAR-SET

KIT, Ring and Pinion, Incl. Ref 1 - 6; 381381A1 or 381381A2 Axle

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Gear

1шт.

2

NSS

NOT SOLD SEPARAT

Gear, Pinion Gear

1шт.

3

K261065

LOCK WASHER

1шт.

4

K261014

RING NUT,M40 x 1.5

Ring

1шт.

5

1349058C1

SPACER

Collapsible

1шт.

6

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

7

140954A1

SHIM,2.50mm Thk

(0.098")

1шт.

7

140953A1

SHIM,2.60mm Thk

(0.102")

1шт.

7

140951A1

SHIM,2.70mm Thk

(0.106")

1шт.

7

140949A1

SHIM,2.80mm Thk

(0.110")

1шт.

7

140948A1

SHIM,2.90mm Thk

(0.114")

1шт.

7

140943A1

SHIM,3.00mm Thk

(0.118")

1шт.

7

140944A1

SHIM,3.10mm Thk

(0.122")

1шт.

7

140945A1

SHIM,3.20mm Thk

(0.125")

1шт.

7

140946A1

SHIM,3.30mm Thk

(0.129")

1шт.

7

140947A1

SHIM,3.40mm Thk

(0.133")

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

2шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

Oil

1шт.

10

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

11

128570A1

FLANGE

Cover, Differential

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Differential Cover to Differential Carrier

1шт.
