Запчасти Case 580SM (06-06) - AXLE, FRONT DRIVE - PLANETARY (06) - POWER TRAIN

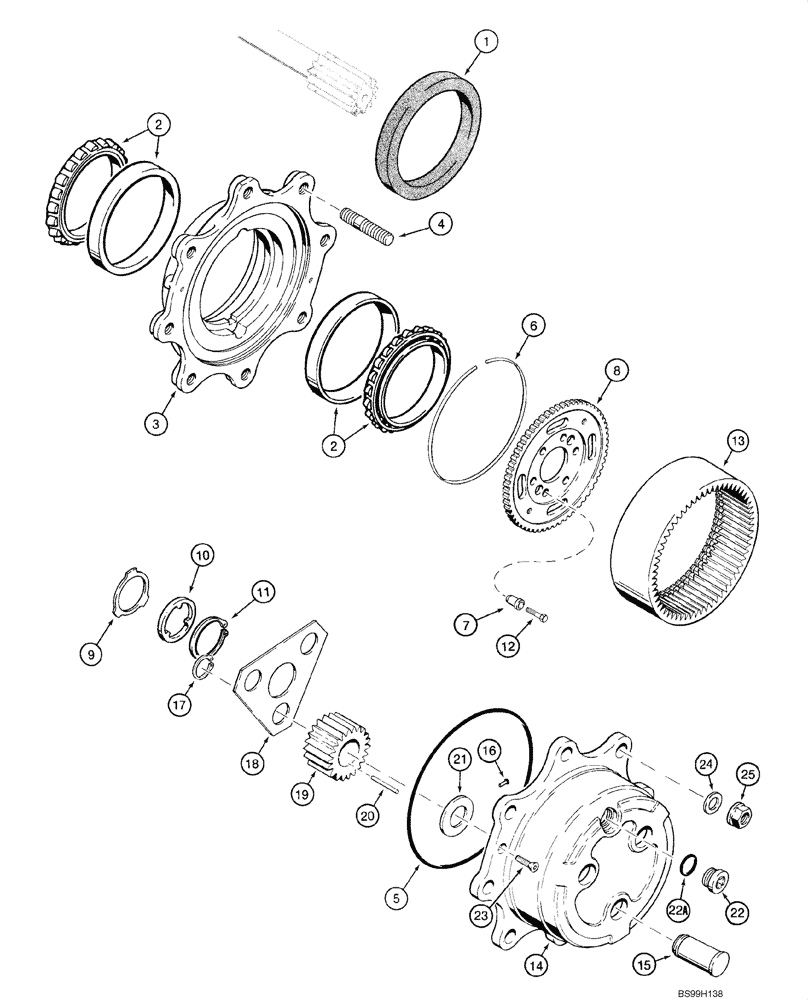

Схема запчастей Case 580SM - (06-06) - AXLE, FRONT DRIVE - PLANETARY (06) - POWER TRAIN
20
6
2
18
9
8
4
2
24
13
16
12
22
17
1
15
19
21
10
25
5
7
22a
11
23
3
14

Артикул

Название

Примечание

Количество

381380A1

4WD AXLE ASSY

Front, Models Without Powershift Transmission, Prior to P.I.N. JJG0281494, Incl. Ref 1 - 25; Also Includes Parts On Figures 06-02 - 06-08; No Longer Available, Order 427084A1 Axle

1шт.

Repair and exchange component available - call Avatar Components, 1-800-453-3544, ext. 122.

1шт.

427084A1

4WD AXLE ASSY

Front, Models Without Powershift Transmission, P.I.N. JJG0281494 & After; Incl. Ref 1 - 25; Also Includes Parts On Figures 06-02 - 06-08

1шт.

381381A1

4WD AXLE ASSY

Front, Models With Powershift Transmission, Incl. Ref 1 - 25; Also Includes Parts On Figures 06-02 - 06-08; No Longer Available, Order 381381A2 Axle

1шт.

381381A2

4WD AXLE ASSY

Front, Models With Powershift Transmission, Incl. Ref 1 - 25; Also Includes Parts On Figures 06-02 - 06-08

1шт.

1

311569A1

OIL SEAL,130mm ID x 160mm OD x 14mm Thk

Triple Lip; 381380A1, 381381A2, or 427084A1 Axle

2шт.

1

138867A1

OIL SEAL

381381A1 Axle Only

2шт.

2

1966169C1

BEARING CONE,95 mm ID x 135 mm OD x 20 mm

4шт.

3

144466A1

HUB

Incl. Ref 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Hub

1шт.

4

100556A1

STUD

8шт.

B17575

FLUID

89 ml, RTV Silicone, Planetary, Serial Range: Cover-Hub

1шт.

5

100552A1

O-RING,215.57mm ID x 220.81mm OD x 2.62mm Thk

2шт.

6

100559A1

SPECIAL RING

2шт.

7

116426A1

BUSHING

12шт.

8

116427A1

GEAR

CARRIER, Ring Gear

2шт.

9

190684A1

THRUST WASHER

2шт.

10

190682A1

THRUST WASHER

2шт.

11

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

2шт.

12

116425A1

BOLT

12шт.

13

100561A1

GEAR

Ring

2шт.

14

100554A1

PINION CARRIER

PLANETARY, Includes 100553A1, Ref 14 - 22A

2шт.

14

100553A1

HOUSING ASSY.

Carrier, Incl. Ref 14 - 16

2шт.

14

NSS

NOT SOLD SEPARAT

Carrier

1шт.

15

NSS

NOT SOLD SEPARAT

Shaft, Pinion

3шт.

16

K395093

HEADED PIN,12mm OD x 15mm L

Lock

1шт.

17

800-1134

SNAP RING,M34, Ext

6шт.

18

100555A1

LARGE PLATE

Retainer

2шт.

19

K395114

GEAR

Sun - Not Shown

2шт.

19

100562A1

GEAR, PLANETARY

Pinion Gear

6шт.

B17575

FLUID

89 ml, Black RTV Silicone, Planetary, Serial Range: Cover-Hub

1шт.

20

114295A1

10 NEEDLE BRG KIT

9шт.

21

K395091

THRUST WASHER

6шт.

22

100557A1

PLUG, DRAIN,M30 x 2

Incl. Ref 22A

2шт.

22a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

23

K395082

SCREW,M8 x 20mm

4шт.

24

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

Not Included In Assembly, Purchase Separately

16шт.

25

825-11418

NUT,M18 x 1.5, Cl 8

M18, Not Included In Assembly, Purchase Separately

16шт.

Выбрано товаров: 38
