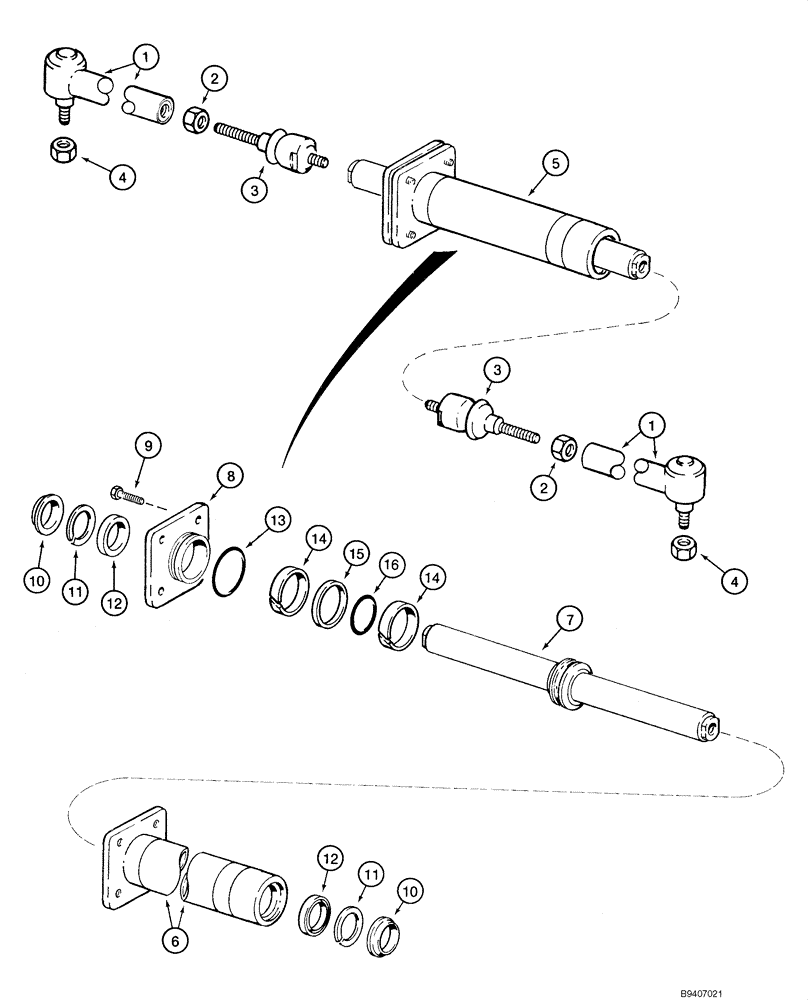

Запчасти Case 580SM (06-04) - AXLE, FRONT DRIVE - CYLINDER, STEERING (06) - POWER TRAIN

381380A1

4WD AXLE ASSY

Front, Models Without Powershift Transmission, Prior to P.I.N. JJG0281494, Incl. Ref 1 - 16; Also Includes Parts On Figures 06-02 - 06-08; No Longer Available, Order 427084A1 Axle

1шт.

Repair and exchange component available - call Avatar Components, 1-800-453-3544, ext. 122.

1шт.

427084A1

4WD AXLE ASSY

Front, Models Without Powershift Transmission, P.I.N. JJG0281494 & After; Incl. Ref 1 - 16; Also Includes Parts On Figures 06-02 - 06-08

1шт.

381381A1

4WD AXLE ASSY

Front, Models With Powershift Transmission, Incl. Ref 1 - 16; Also Includes Parts On Figures 06-02 - 06-08; No Longer Available, Order 381381A2 Axle

1шт.

87417389R

REMAN-FRONT AXLE

1шт.

87417389C

CORE-FRONT AXLE 4WD

Return Number

1шт.

381381A2

4WD AXLE ASSY

Front, Models With Powershift Transmission, Incl. Ref 1 - 16; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87417389R

REMAN-FRONT AXLE

1шт.

87417389C

CORE-FRONT AXLE 4WD

Return Number

1шт.

144457A1

STEERING ARM

Incl Ref. 1-3

2шт.

1

87710157

STEERING TIE-ROD,26mm OD x 265mm L

Ball Joint

1шт.

2

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

M18

1шт.

3

112509A1

BALL JOINT

1шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

M18

2шт.

5

144458A1

CYLINDER

Steering, 4WD, Incl. Ref 6 - 16, Order D149739 Kit to Service Seals

1шт.

5

85805978R

REMAN-HYD CYLINDER

580SM LOADER BACKHOE (NORTH AMERICA), Steering, Reman For New PN 144458A1

1шт.

5

85805978C

CORE-HYD CYLINDER

Return Number

1шт.

6

D149738

STEERING CYLINDER

TUBE

1шт.

7

144459A1

ROD

Piston

1шт.

8

D149737

GLAND

GLAND

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Cylinder, Serial Range: Flange-Cylinder

1шт.

9

114296A1

BOLT

For Service Order 100524A1 Bolt and 892-11012 Washer

4шт.

10

NSS

NOT SOLD SEPARAT

Seal, Wiper

2шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

12

NSS

NOT SOLD SEPARAT

Seal

2шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

D149739

SEAL PACKAGE

Incl. Ref 10 - 16

1шт.
