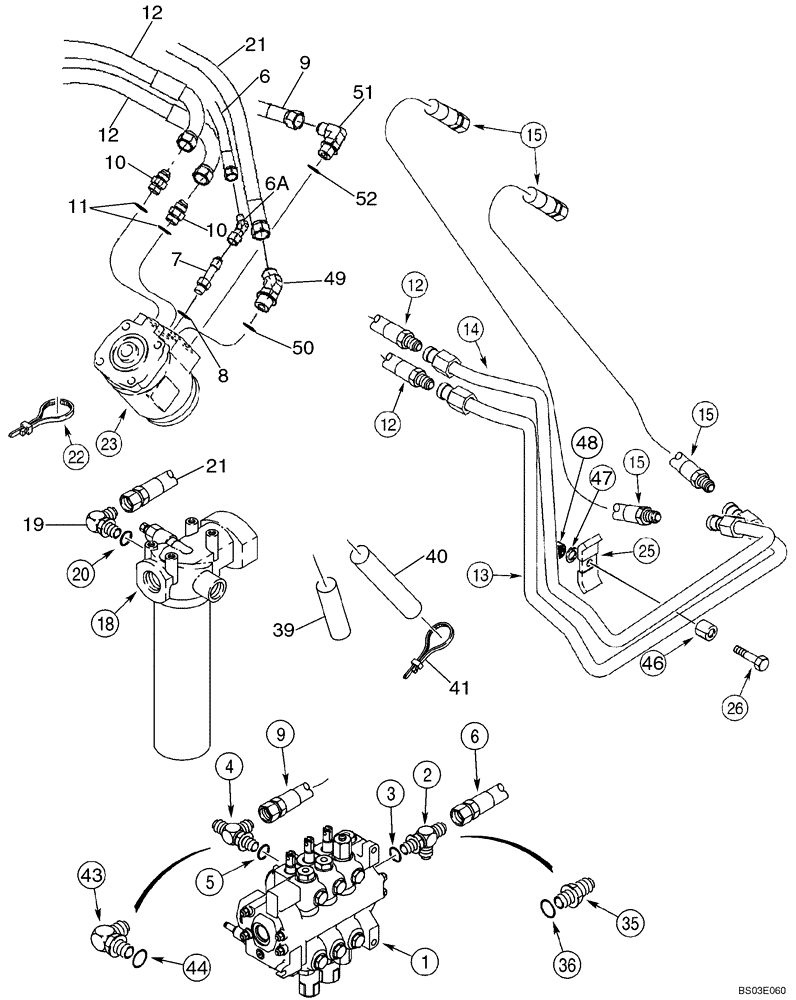

Запчасти Case 580SM (05-02) - HYDRAULICS - STEERING (05) - STEERING

1

REF

INSTRUCTION

For Loader Control Valve Options, See Figures 08-28, 08-29

1шт.

2

282428A1

VALVE PRESSURE RELIE

Check, Incl. Ref 3; Models with Hand Held Auxiliary Hydraulics, If Used

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

Incl. Ref 5, Lower Inlet Port; Models With Hand Held Auxiliary Hydraulics

1шт.

4

218-5292

TEE,37 Degree, 3/4"-16, 7/8"-14 O-Ring Run, 3/4"-16

Tee, Incl. Ref 5; Models With Loader Tool Quick Coupler, See Figure 08-22, 08-23

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

409403A1

HOSE ASSY.

1605 mm (63-3/16 in), Steering Pilot, Steering Control Valve Small Center Port to Loader Control Valve

1шт.

6a

218-5170

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Female JIC

1шт.

7

218-5027

HYD CONNECTOR,7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x Or, Incl. Ref 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

224423A1

HYDRAULIC HOSE,9.65 mm ID x 1300.00 mm

Steering pressure, Loader control valve to steering control valve lower RH port

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

409402A1

HOSE ASSY.

700 mm (27-9/16 in)

2шт.

13

414755A1

HYD TUBE

Lower, To Steering Cylinder Right-Hand Port Hose; Replaces 397949A2

1шт.

14

414753A1

HYD TUBE

Upper, To Steering Cylinder Left-Hand Port Hose; Replaces 397947A3

1шт.

15

144219A1

HOSE,9.53mm ID x 485mm L

485 mm (19-1/8 in), To Steering Cylinder

2шт.

18

122536A1

HYDRAULIC OIL FILTER

Hydraulic Oil, See Figure 08-53

1шт.

19

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Elbow, 90 deg, 3/4 fl x 9/16 Or, Incl. Ref 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

409404A1

HOSE ASSY.

1570 mm (61-13/16 in), Return, Steering Control Valve Upper Right-Hand, Serial Range: Port-Filter

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, If Used

1шт.

23

377805A1

PUMP

Steering Control Valve, Includes 396591A1, 396592A1, 396593A1

1шт.

23

377805A1R

REMAN-STEERING VALVE

Reman For New P/N 377805A1

1шт.

23

377805A1C

CORE-STEERING VALVE

Return Part Number

1шт.

396591A1

KIT

Seal

1шт.

396592A1

KIT

Anticavitation

1шт.

396593A1

KIT

Bolt

1шт.

25

D143846

CLAMP

2шт.

26

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

M10 x 50

2шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref 36, Models Without Auxiliary Hydraulics, If Used

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

D132982

PADDLE,26.87mm ID x 400mm L

Sleeve, 400 mm (15-3/4 in)

3шт.

40

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

Sleeve, 460 mm (18-1/8 in)

2шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

43

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 44, Models Without Auxiliary Hydraulics, If Used

1шт.

44

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

46

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

47

892-11010

LOCK WASHER,M10

2шт.

48

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

49

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 50

1шт.

50

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

51

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 52

1шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
