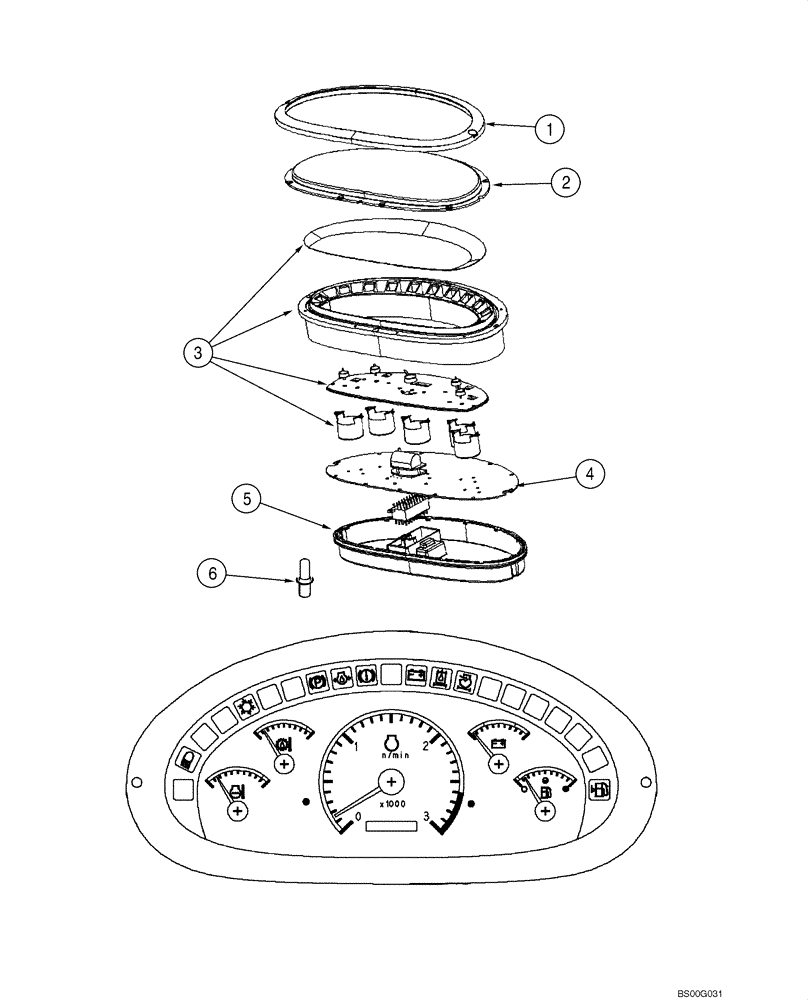

Запчасти Case 580SM (04-13) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

395943A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Incl. Ref 1 - 6

1шт.

87339012R

REMAN-INSTR CLUSTER

580SM; Reman for New P/N 395943A1

1шт.

87339012C

CORE-CLUSTER, INSTR

Return Number

1шт.

1

370755A1

BEZEL

Black

1шт.

NSS

NOT SOLD SEPARAT

No. 6 x 1/4, Screw; Trim

2шт.

2

370756A1

LENS

Clear; Includes O-Ring Which Is Not Serviced Separately

1шт.

3

NSS

NOT SOLD SEPARAT

Includes Overlay, Seal and Gauges Which Are Not Serviced Separately

1шт.

4

NSS

NOT SOLD SEPARAT

Circuit Board; Includes Seal and Hourmeter Which Are Not Serviced Separately

1шт.

NSS

NOT SOLD SEPARAT

No. 6 x 3/8, Screw

25шт.

5

370760A1

REAR COVER

Rear; Includes O-Ring Which Is Not Serviced Separately

1шт.

NSS

NOT SOLD SEPARAT

No. 6 x 3/4, Screw; Rear Cover

2шт.

6

388053A2

BULB,14V, 1W

1W, 14V; Includes Socket

1шт.
