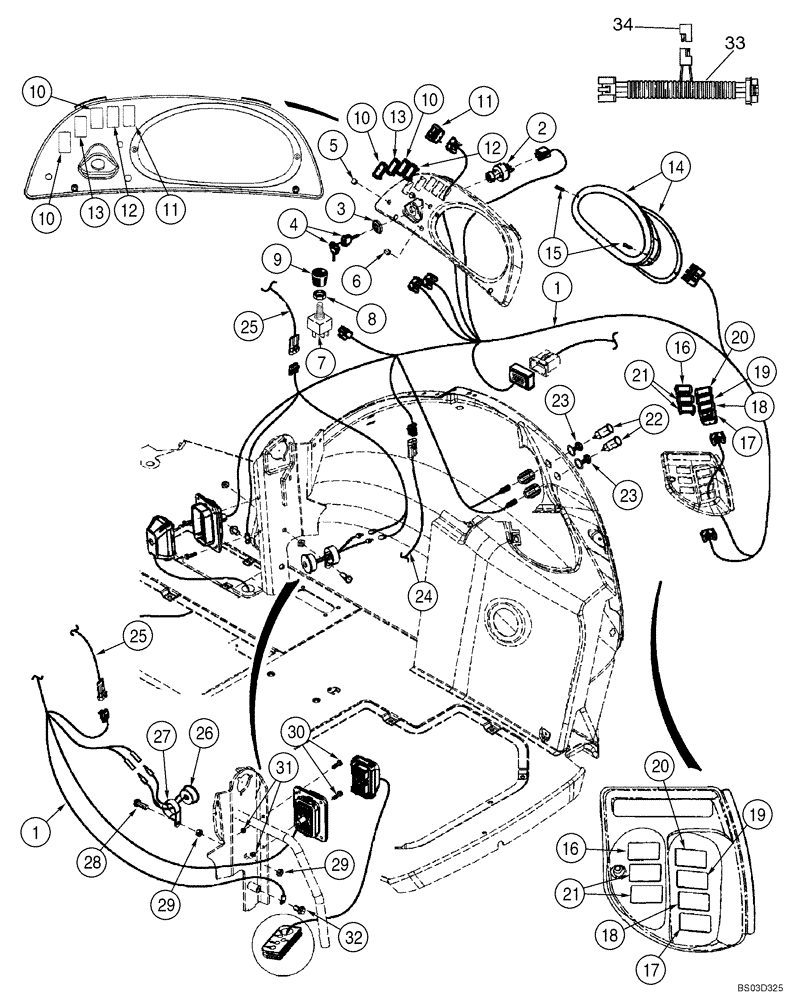

Запчасти Case 580SM (04-10) - HARNESS, SIDE CONSOLE - SWITCHES (04) - ELECTRICAL SYSTEMS

1

396017A1

HARNESS

Side Console

1шт.

282775A1

IGNITION SWITCH

Incl. Ref 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Switch; Without Keys

1шт.

3

NSS

NOT SOLD SEPARAT

Nut

1шт.

4

1964831C2

IGNITION KEY

Padded

1шт.

5

397569A1

PLUG

7/16 in, Dome; If Used; For Air Conditioning Switch and Knob, See Figure 09-66

2шт.

6

397570A1

PLUG

1/2 in, Dome; If Used; For Heater Switch and Knob, See Figure 09-65

1шт.

7

245258A1

ROTARY SWITCH

Blower; If Used

1шт.

121415A1

FUSE,25A, Mini, Clear

Blower and Wiper

1шт.

8

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

9

400379A1

KNOB,23mm

1шт.

10

86000535

PLUG,1.427" x .62", Plastic

If Used

1-4шт.

11

133715A1

LIGHT SWITCH

Rear Work Lamps

1шт.

12

235002A1

ROCKER SWITCH

Ride Control; If Used

1шт.

13

133716A1

ROCKER SWITCH

Four Wheel Drive; Models Without Powershift Transmission; If Used

1шт.

13

239408A1

SWITCH

Four Wheel Drive; Models With Powershift Transmission; If Used

1шт.

121412A1

FUSE,10A, Mini, Red

1шт.

14

395943A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT See Figure 04-13

1шт.

87339012R

REMAN-INSTR CLUSTER

580SM; Reman for New P/N 395943A1

1шт.

87339012C

CORE-CLUSTER, INSTR

Return Number

1шт.

15

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

2шт.

16

86000535

PLUG,1.427" x .62", Plastic

If Used

1-6шт.

17

386852A2

SWITCH

Horn

1шт.

18

386788A1

WINDSHIELD WIPER SWI

Rear Window Washer; If Used

1шт.

19

386786A1

ROCKER SWITCH

Rear Wiper; If Used

1шт.

20

284058A1

SWITCH

Backhoe Auxiliary Hydraulics Hi/Low Flow; If Used

1шт.

21

386789A2

SWITCH

Backhoe Quick Coupler and Hydraulic Backhoe Bucket Coupler; If Used

2шт.

22

283779A1

POWER SOCKET,12V

2шт.

23

283781A1

CAP,Polyester Elastomer

Power Plug Outlet

2шт.

L71879

DIODE ELEMENT,400V, 3A

1шт.

25

NSS

NOT SOLD SEPARAT

Harness; Loader Control Lever; Included In Loader Control Lever Handle

1шт.

26

D137468

BUZZER

Engine Water Temperature, Engine Oil Pressure and Parking Brake; Alarm May Be Mounted On Other Side of Loader Control Bracket

1шт.

27

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1-3/4

1шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

30

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

31

832-10406

NUT,M6 x 1, Cl 8

2шт.

32

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

390520A2

HARNESS

Chassis Options; Chassis Options Include Ride Control Solenoids, Hand Held Auxiliary Hydraulics Solenoid

1шт.

L71879

DIODE ELEMENT,400V, 3A

4шт.

87422908

SERVICE KIT

Kit, Service; "No Stop" Issue; Incl. Ref 33, 34 and Instruction Sheet; If Used

1шт.

33

87418406

WIRE HARNESS

Wire, Jumper; Incl. Ref 34

1шт.

34

L71879

DIODE ELEMENT,400V, 3A

1шт.
