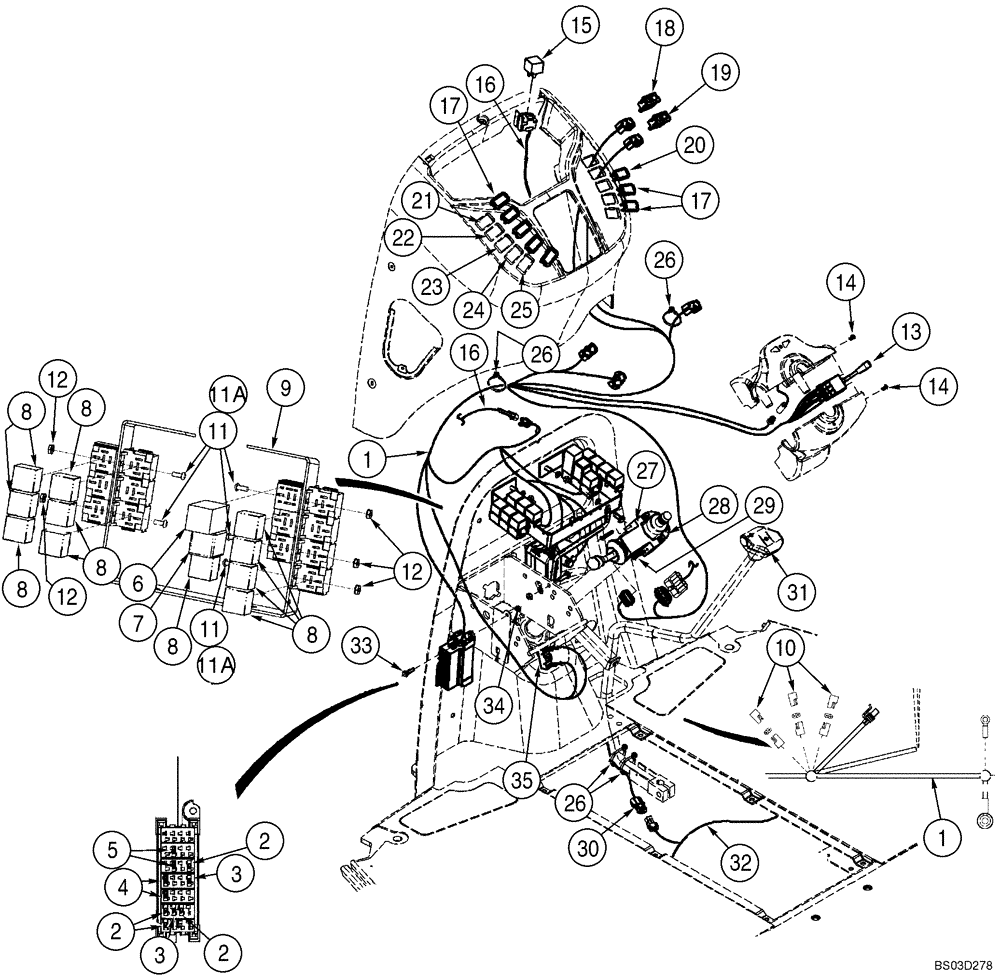

Запчасти Case 580SM (04-07) - HARNESS, FRONT CONSOLE - SWITCHES (04) - ELECTRICAL SYSTEMS

1

396015A1

HARNESS

Front Console, Incl. Ref 13

1шт.

2

121412A1

FUSE,10A, Mini, Red

Red

4шт.

3

121413A1

FUSE,15A, Mini, Blue

Blue

2шт.

4

121414A1

FUSE,20A, Mini, Yellow

Yellow

2шт.

5

121416A1

FUSE,30A, Mini, Green

Green

2шт.

6

87578455

RELAY,12V, Turn Signal and Hazard

Flasher, Hazard; Turn Signal; Replaces D147166

1шт.

7

347706A3

RELAY,12V, 5A

Sealed Time Delay, Shuttle Interlock Timing Relay, Forward Reverse Control

1шт.

8

314451A1

RELAY

40 amp, 12V

11шт.

9

361900A1

BRACKET

Relay Mounting

1шт.

10

L71879

DIODE ELEMENT,400V, 3A

3шт.

11

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

6шт.

11a

490-1106

SCREW,Cross Pan Hd, #10-32 x 3/8"

No 10 x 3/8

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF; With External Tooth Lock Washer

7шт.

13

389487A1

LIGHT SWITCH

Turn Signal/Driving Lamp High/Low Beam

1шт.

14

84178909

SCREW,M4 x 12mm

M4 x 12

2шт.

15

314451A1

RELAY

40 amp, 12V; Air Conditioning; Attaches To Front Console Options Harness

1шт.

16

390519A3

HARNESS

Front Console Options; Front Options Include Hand Held Auxiliary Hydraulics Switch; Front Windshield Washer Switch; Loader Tool Quick Coupler Switch, and Air Conditioner Relay; Includes L71879

1шт.

L71879

DIODE ELEMENT,400V, 3A

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

Mounts Relay Recepticle

1шт.

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF; Mounts Relay Recepticle

1шт.

17

86000535

PLUG,1.427" x .62", Plastic

Accessory; If used

2-8шт.

18

386849A1

ROCKER SWITCH

Front Work Lamps

1шт.

19

386850A1

ROCKER SWITCH

Hazard Lamps

1шт.

20

386851A1

BEACON SWITCH

Rotating Beacon; If Used

1шт.

21

191532A1

SWITCH

Hand Held Auxiliary Hydraulics; If Used

1шт.

22

386785A1

WINDSHIELD WIPER SWI

Front Wiper; If Used

1шт.

23

386787A1

WINDSHIELD WASHER SW

Front, If Used

1шт.

24

398675A2

ROCKER SWITCH

Loader Tool Quick Coupler; If Used

1шт.

25

386791A1

SWITCH

Cold Start; If Used

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

27

278328A1

SWITCH

Shuttle Shift; Transmission Forward/Neutral/Reverse Switch; Models Without Powershift Transmission

1шт.

27

231520A2

SWITCH

Shuttle Shift; Transmission Forward/Neutral/Reverse Switch; Models With Powershift Transmission

1шт.

28

366889A2

HALF-COLLAR

HALF COLLAR Shuttle Lever; Includes Threaded Insert

1шт.

29

397990A1

SCREW,Phillips Drive, Pan HD, M5 x 0.8 x 35mm

M5 x 35

2шт.

30

123809A2

WIRE HARNESS

Clutch Cutout; Transmission Gear Shift Lever; For Lever, See Figure 06-12

1шт.

31

123097A1

SWITCH

Clutch Cutout; For Lever and Knob, See Figure 06-12

1шт.

32

396014A1

HARNESS

Engine, Includes L71879

1шт.

L71879

DIODE ELEMENT,400V, 3A

3шт.

33

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

34

832-10406

NUT,M6 x 1, Cl 8

1шт.

35

D148108

SWITCH

Brake Lamp; Includes Hardware; For Mounting, See Figure 07-03

1шт.

390520A2

HARNESS

Chassis Options; Chassis Options Include Ride Control Solenoids, Hand Held Auxiliary Hydraulics Solenoid

1шт.

L71879

DIODE ELEMENT,400V, 3A

4шт.
