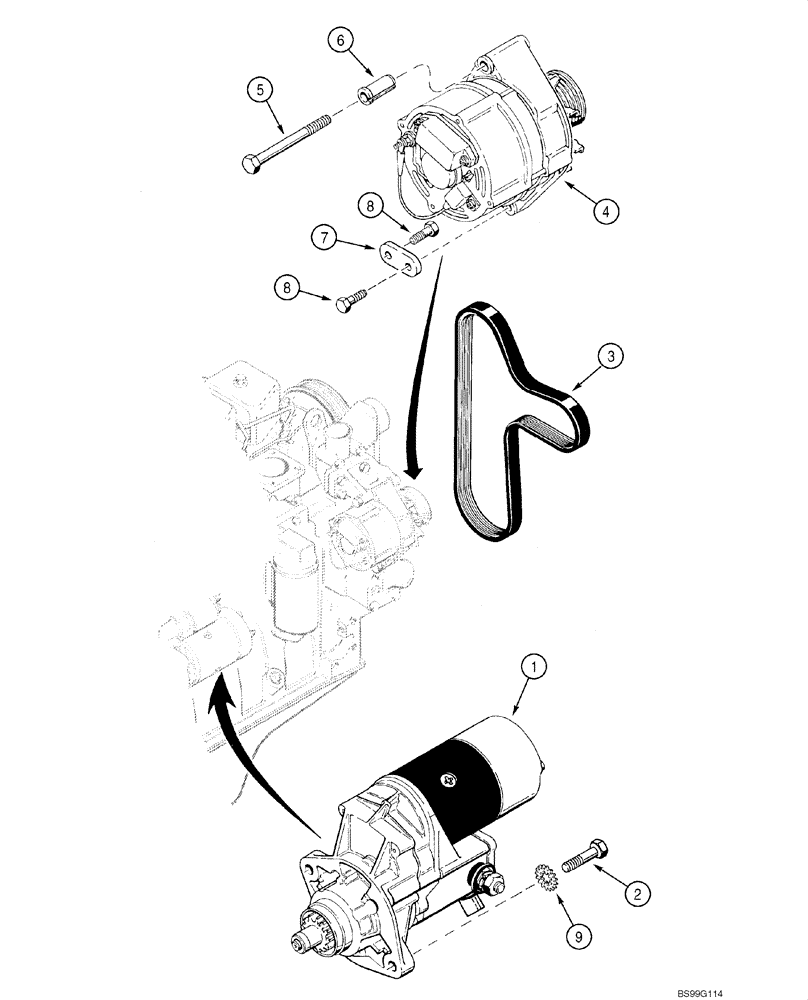

Запчасти Case 580SM (04-03) - STARTER MOUNTING - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

86982709

STARTER MOTOR,12V, 2.5kW

See Figure 04-01; Replaces 1987559C1

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 86982709

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

1

87350916

REMAN-STARTER

Remanufactured Starter, North America Only; Parts On This Page Do Not Apply to Remanufactured Assy

1шт.

1

87350918

CORE-STARTER

Return Number, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

3

86982450

V-BELT

Alternator And Fan

1шт.

4

A187873

ALTERNATOR,12V, 65A

12V, 65 amp; See Figure 04-02

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

6

J902469

SPACER

1шт.

7

J903089

SUPPORT

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

9

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

Ground Strap

2шт.
