Запчасти Case 580SM (02-21) - FLYWHEEL AND HOUSING - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

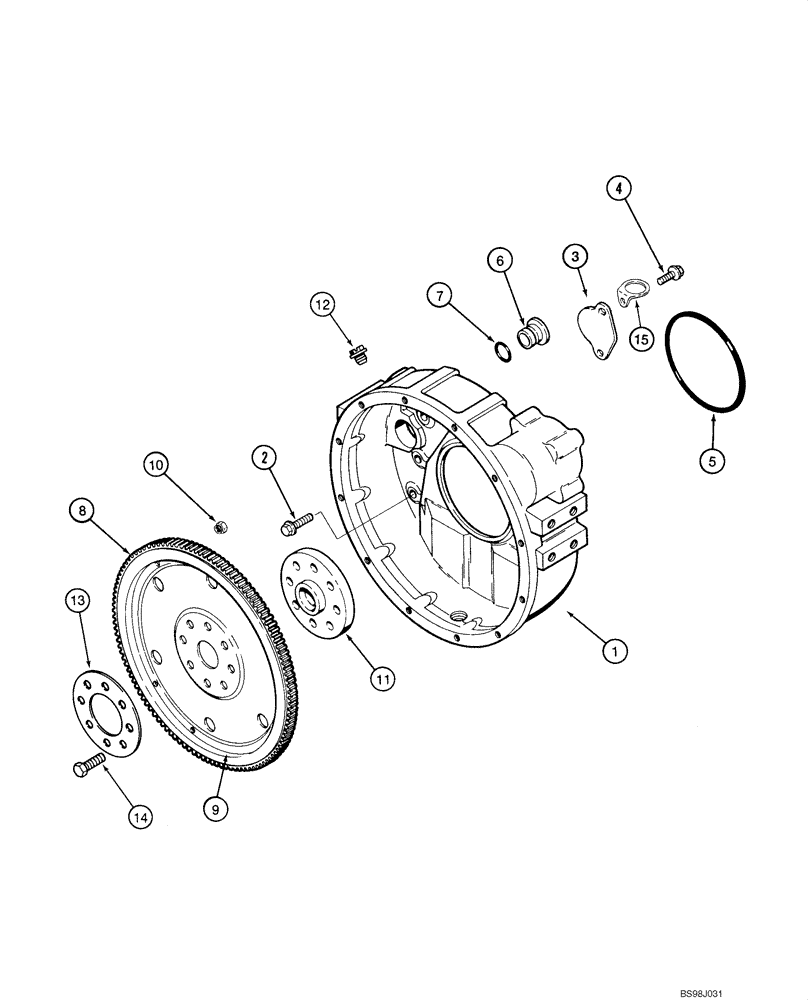

Схема запчастей Case 580SM - (02-21) - FLYWHEEL AND HOUSING - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
14
13
3
9
7
1
4
12
6
5
8
11
2
10
15

Артикул

Название

Примечание

Количество

1

J930886

HOUSING ASSY.

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

3

J925234

PLATE

1шт.

4

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16

2шт.

5

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

6

J910248

PLUG

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

J934937

FLYWHEEL

Incl. 8 - 10; Models Without Powershift Transmission

1шт.

8

NSS

NOT SOLD SEPARAT

Gear

1шт.

9

NSS

NOT SOLD SEPARAT

Plate

1шт.

10

NSS

NOT SOLD SEPARAT

Nut

6шт.

11

J913689

FLANGE

Models Without Powershift Transmission

1шт.

12

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

13

J923049

PLATE

Replaces J904361; Models Without Powershift Transmission

1шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

15

J928989

CLIP

1шт.

J287008

ENGINE FLYWHEEL

Incl. 16; Models With Powershift Transmission; Replaces J910284; Not Illustrated

1шт.

16

J901774

GEAR,Flywheel

159 T

1шт.

17

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

Models With Powershift Transmission; Not Illustrated

8шт.

Выбрано товаров: 19
