Запчасти Case 580SM (02-18) - CAMSHAFT - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

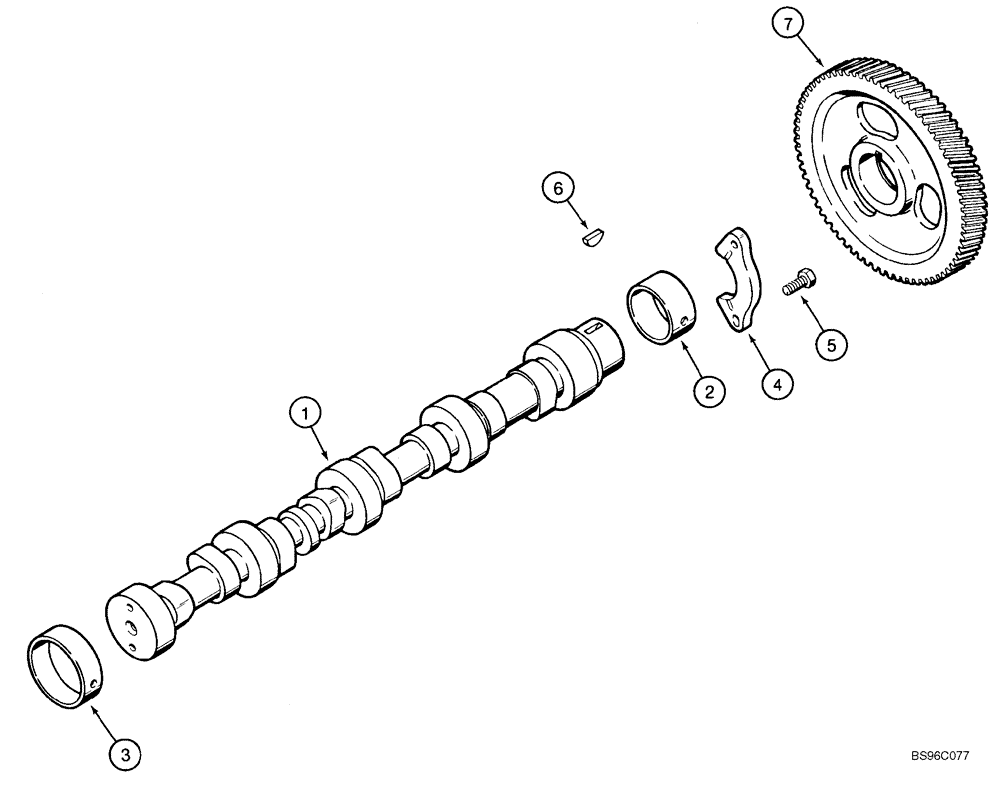

Схема запчастей Case 580SM - (02-18) - CAMSHAFT - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
2
4
3
6
7
1
5

Артикул

Название

Примечание

Количество

1

J929885

CAMSHAFT

1шт.

1

J929885R

REMAN-CAMSHAFT

580SM LOADER BACKHOE (NORTH AMERICA), 4T-390 EMISSIONS CERTIFIED ENGINE

1шт.

1

J929885C

Return Number

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

Front

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

Intermediate And Rear; Service Repair Only

4шт.

4

J927155

SUPPORT

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

7

J929028

GEAR

1шт.

Выбрано товаров: 9
