Запчасти Case 580SM (09-78) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS

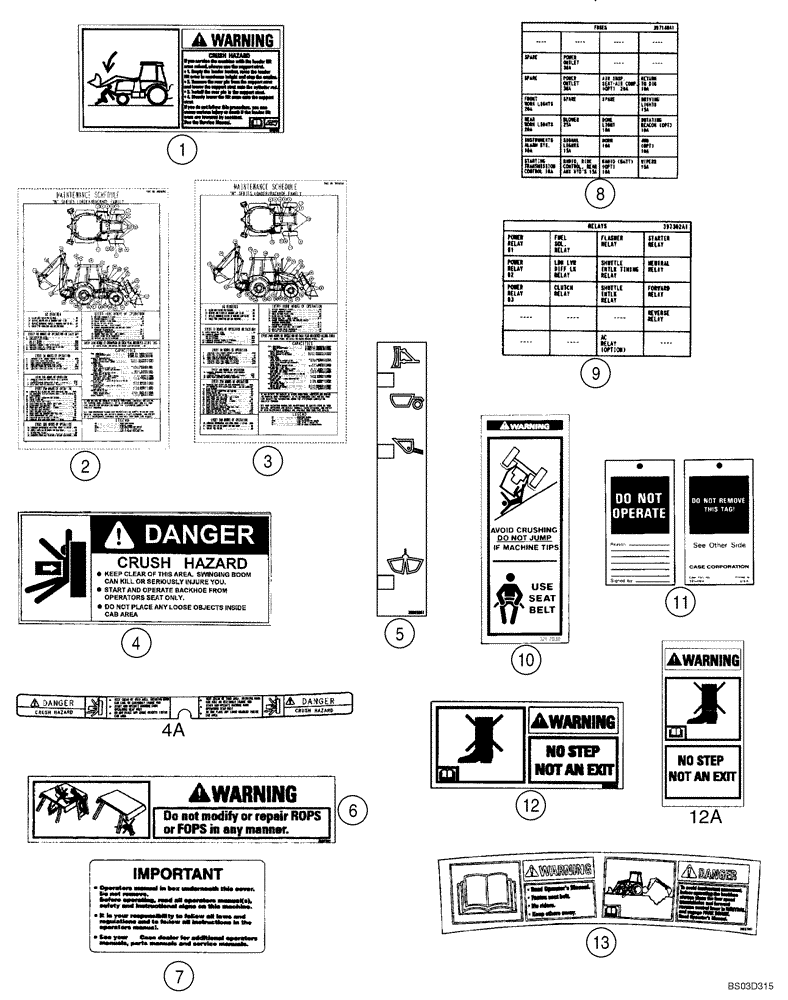

Схема запчастей Case 580SM - (09-78) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS
3
2
13
10
4a
6
5
12a
4
1
11
7
12
9
8

Артикул

Название

Примечание

Количество

1

398576A1

WARNING DECAL

Crush Hazard; Loader Arm Support Strut

1шт.

2

404804A1

DECAL

Maintenance Schedule; Supplied by Parts and Components; Used With D138954 2WD Front Axle; If Used

1шт.

2

419752A1

DECAL

Maintenance Schedule; If Used

1шт.

2

451598A1

DECAL

Maintenance Schedule; With Balanced Engine; If Used

1шт.

3

398587A1

Maintenance Schedule; Supplied by Parts and Components; Used With 377979A1 2WD Front Axle

1шт.

4

398664A1

DECAL

Crush Hazard; Keep Clear Of This Area; Swinging Boom; If Used

2шт.

4a

86992981

DANGER DECAL

Crush Hazard; If Used

1шт.

5

398658A1

DECAL

Clam Bucket Position

1шт.

6

389729A1

WARNING DECAL

Do Not Modify or Repair ROPS or FOPS In Any Manner

1шт.

7

398662A1

IMPORTANT DECAL

Operator's Manual In Box Underneath This Cover; Glove Box Lid

1шт.

8

398594A1

DECAL

Fuse Location

1шт.

9

398596A1

DECAL

Relay

1шт.

10

398672A1

WARNING DECAL

Avoid Crushing; Do Not Jump / Use Seat Belt

2шт.

11

298521A1

TAG

Do Not Operate

1шт.

12

398585A1

DECAL

50 x 110 mm; No Step / Not An Exit; If Used

2шт.

12a

86992980

WARNING DECAL

54 x 110 mm; No Step/Not An Exit; If Used

2шт.

13

398598A1

WARNING DECAL

Warning/Danger; Read the Operator's Manual

1шт.

Выбрано товаров: 17
