Запчасти Case 580SM (09-77) - DECALS - ENGLISH (09) - CHASSIS/ATTACHMENTS

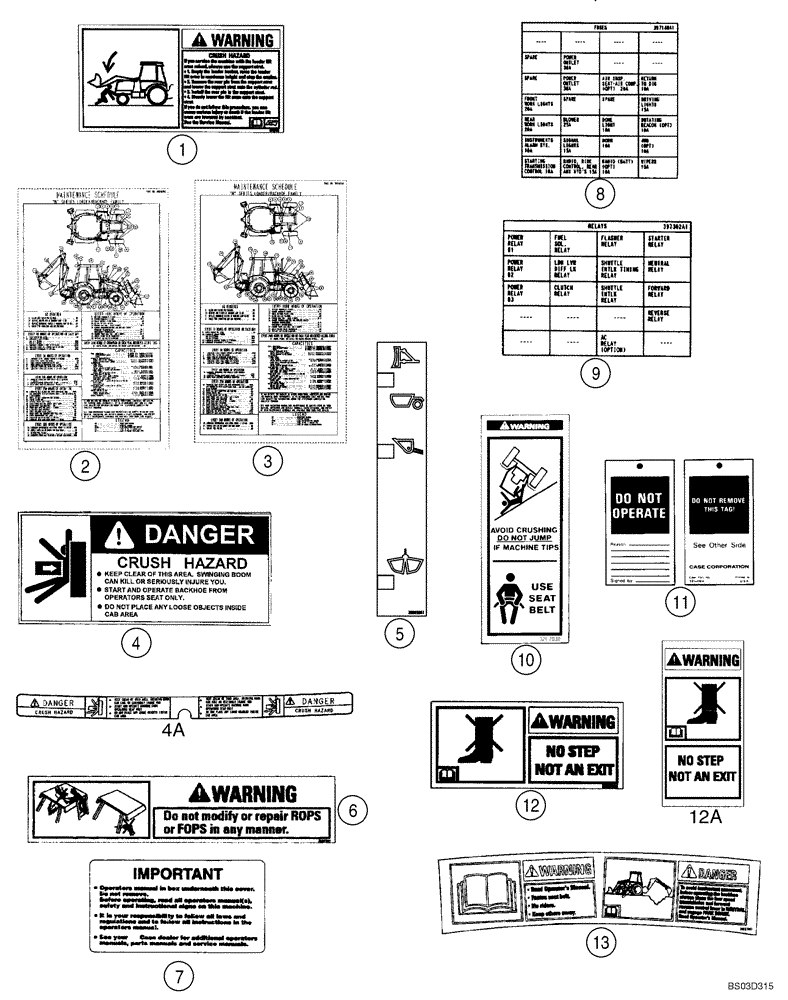

Схема запчастей Case 580SM - (09-77) - DECALS - ENGLISH (09) - CHASSIS/ATTACHMENTS
13
12a
4a
5
3
4
12
11
8
6
7
1
2
10
9

Артикул

Название

Примечание

Количество

1

384264A1

WARNING DECAL

Crush Hazard; Loader Arm Support Strut

1шт.

2

392568A3

DECAL

Maintenance Schedule; Supplied by Parts and Components; Used With D138954 2WD Front Axle; If Used

1шт.

2

419751A1

DECAL

Maintenance Schedule; If Used

1шт.

2

451597A1

DECAL

Maintenance Schedule; With Balanced Engine: If Used

1шт.

2

87410200

DECAL

Maintenance Schedule; With Balanced Engine: If Used

1шт.

3

399427A1

DECAL

Maintenance Schedule; Supplied by Parts and Components; Used With 377979A1 2WD Front Axle

1шт.

4

313238A1

DECAL

Crush Hazard; Keep Clear Of This Area; Swinging Boom; If Used

2шт.

4a

86992976

DANGER DECAL

Crush Hazard; If Used

1шт.

5

398658A1

DECAL

Clam Bucket Position

1шт.

6

383972A1

WARNING DECAL,195mm x 37mm H

Do Not Modify or Repair ROPS or FOPS In Any Manner

1шт.

7

144193A3

IMPORTANT DECAL

Operator's Manual In Box Underneath This Cover; Glove Box Lid; Replaces 144193A3

1шт.

8

397148A1

DECAL

Fuse Location

1шт.

9

397302A1

DECAL

Relay

1шт.

10

321-7030

WARNING DECAL

Avoid Crushing; Do Not Jump / Use Seat Belt

2шт.

11

321-4614

TAG

Do Not Operate

1шт.

12

384271A1

DECAL

No Step / Not An Exit; If Used

2шт.

12a

86992975

WARNING DECAL

No Step/Not An Exit; If Used

2шт.

13

392374A1

WARNING DECAL

Warning/Danger; Read the Operator's Manual

1шт.

Выбрано товаров: 18
