Запчасти Case 580SM (09-76) - DECALS (09) - CHASSIS/ATTACHMENTS

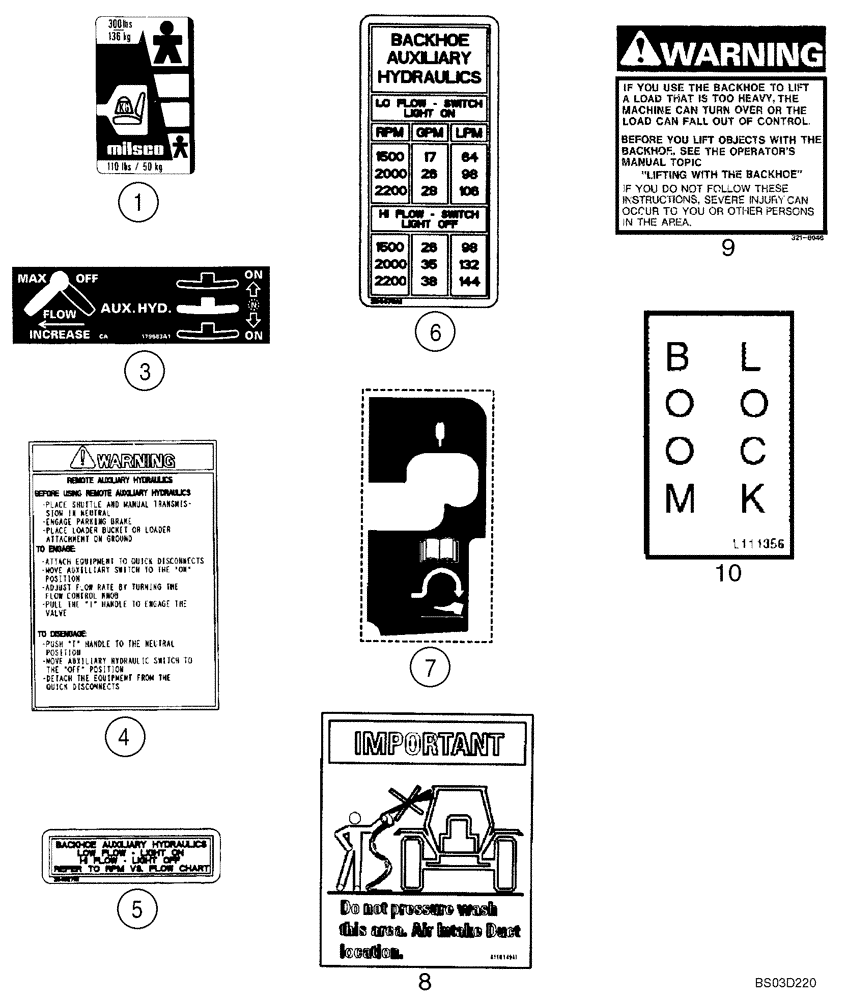

Схема запчастей Case 580SM - (09-76) - DECALS (09) - CHASSIS/ATTACHMENTS
4
10
1
7
6
3
5
8
9

Артикул

Название

Примечание

Количество

1

116534A1

KIT

Decal; Seat Weight Adjustment; Included In Seat Assy

1шт.

3

179683A1

DECAL

Hand Held Auxiliary Hydraulics

1шт.

4

192300A1

DECAL

Remote Auxiliary Hydraulics

1шт.

5

284627A1

DECAL

Backhoe Auxiliary Hydraulics; Low Flow - Light On/Hi Flow - Light Off

1шт.

6

284479A1

DECAL

Backhoe Auxiliary Hydraulics; Lo Flow/Hi Flow

1шт.

7

397489A1

DECAL

Backhoe Auxiliary Hydraulic Control

1шт.

8

411049A1

IMPORTANT DECAL

Do Not Pressure Wash This Area

1шт.

9

321-6046

WARNING DECAL

If You Use The Backhoe To Lift A Load That Is Too Heavy

2шт.

10

L111356

DECAL

Boom Lock

1шт.

Выбрано товаров: 9
