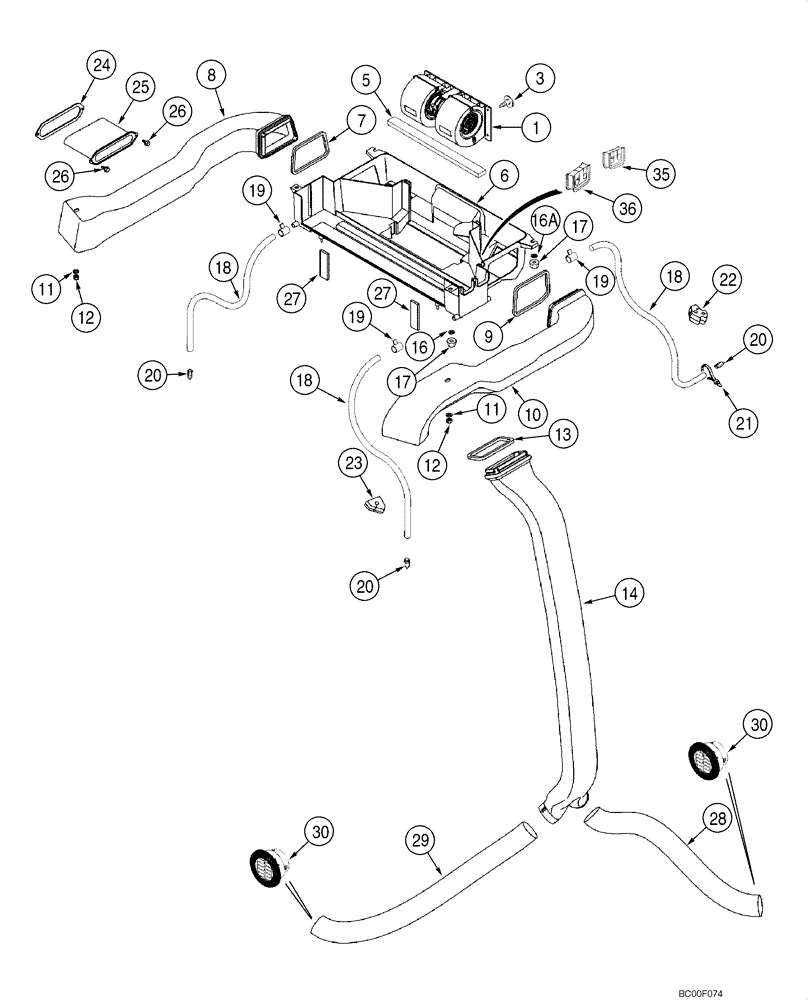

Запчасти Case 580SM (09-64) - CAB - BLOWER HOUSING, VENTILATION DUCTS, DRAIN LINES (09) - CHASSIS/ATTACHMENTS

1

377220A2

BLOWER ASSY.

Component Parts Not Serviced Separately; See Figure 04-10, Ref 7

1шт.

1

377220A2R

REMAN-BLOWER

1шт.

1

377220A2C

CORE-BLOWER

Return Number

1шт.

359504A1

RESISTOR

Blower Motor, Consists Of A Multi-Tapped Ceramic Resistor And A Thermal Fuse (kysor number 222979)

1шт.

3

182697A1

FASTENER

1шт.

5

181981A1

SEALING STRIP

6 x 20 x 355 mm; Adhesive Back; Under Blower

1шт.

6

360251A3

HOUSING

Heat & Air; Incl. 373995A1

1шт.

373995A1

INSERT

2шт.

7

368805A1

FOAM INSULATION

Left-Hand Duct

1шт.

8

360253A3

AIR DUCT

LH

1шт.

9

369249A1

RUBBER SEAL,183mm L

Right-Hand Duct

1шт.

10

360254A3

AIR DUCT

RH

1шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

13

368807A1

RUBBER SEAL,8mm Thk

1шт.

14

360255A1

DUCT

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

18

87615800

TUBE,16.88 mm ID x 549.00 mm

Drain; Replaces 368821A1

4шт.

19

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

20

365789A1

DRAIN VALVE

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

2шт.

22

383794A2

PLUG

2шт.

23

383795A2

PLUG

2шт.

24

381113A2

INSULATOR,3mm Thk

1шт.

25

381111A2

SLEEVE

1шт.

26

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

2шт.

27

377230A3

SEAL,94mm L

16 mm thk; Fresh Air Duct To Ventilation Housing; Replaces 377230A2, 8 mm thk Seal

3шт.

28

375392A1

AIR DUCT

750 mm; Cut from 236559A1

1шт.

29

368818A1

AIR DUCT,63.5mm ID x 1015mm L

1015 mm; Cut from 236559A1

1шт.

30

398986A1

VENT

2шт.

35

403225A1

SEAL,62mm L

Heater Tubes At Housing

1шт.

36

403193A1

SEAL,62mm L

Air Conditioning Tubes At Housing

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
