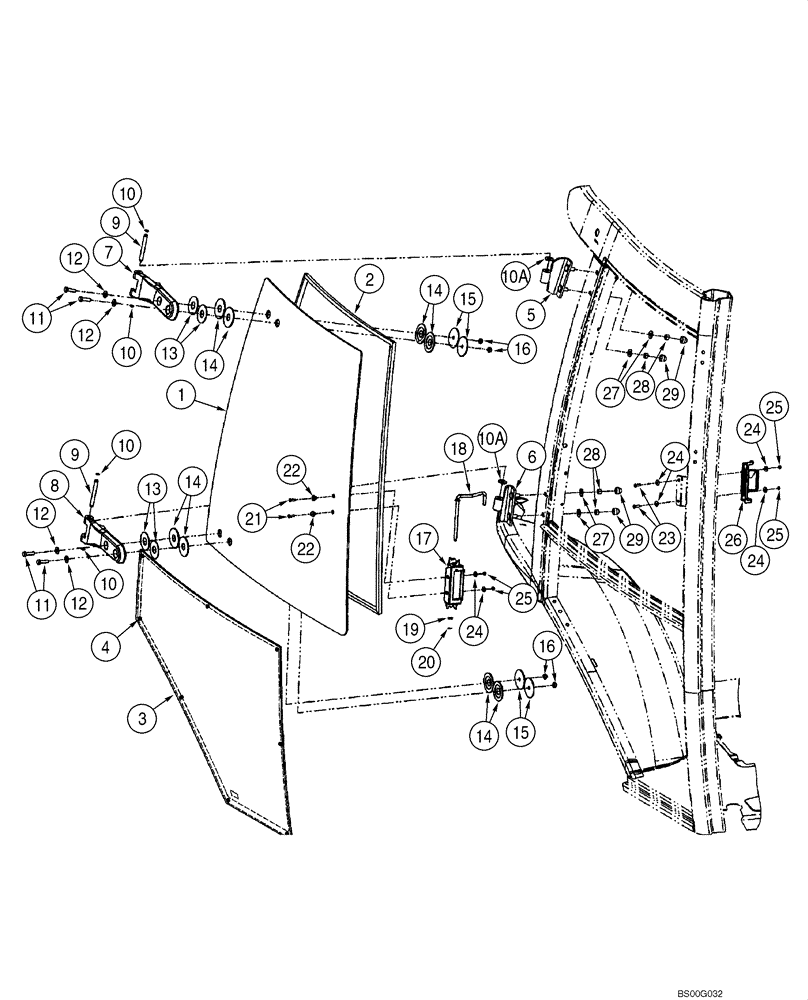

Запчасти Case 580SM (09-58) - CAB - WINDOW, RIGHT-HAND, FOR SINGLE DOOR CAB FRAMES (09) - CHASSIS/ATTACHMENTS

341746A1

WINDOW ASSY

Right-Hand; Incl. Ref 1 - 29

1шт.

1

360046A1

GLASS,CAB

Upper

1шт.

2

394864A1

SEAL, GLASS,804.4mm L

1шт.

3

338428A1

GLASS

Lower

1шт.

4

391827A1

SPACER,11.1mm D

Cut Bumpers In Half For 8 Locations

4шт.

5

394701A1

HINGE

Upper

1шт.

6

394702A1

HINGE

Lower

1шт.

7

364134A1

HINGE

Plastic; Upper

1шт.

8

364135A1

HINGE

Plastic; Lower

1шт.

9

394865A1

PIN

2шт.

10

393330A1

SNAP RING

4шт.

10a

391845A1

WASHER,11.1mm ID x 25.4mm OD x 1.6mm Thk

Nylon

2шт.

11

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

12

895-30107

WASHER,M8 x 20 x 2

4шт.

13

376334A1

WASHER,22mm ID x 55mm OD x 2.8mm Thk

Yellow

4шт.

14

376336A1

RUBBER WASHER

8шт.

15

376332A1

WASHER,9mm ID x 60mm OD x 3.4mm Thk

Black

4шт.

16

832-10508

NUT,M8 x 1.25, Cl 8

4шт.

17

368147A1

HANDLE

Slam Latch

1шт.

18

391849A1

ROD

Used With 100-39001 Ring; 391849A1 Rod No Longer Available, Order 87534372 Rod & 87534717 Push-On Nut

1шт.

19

906086R1

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

1шт.

20

100-39001

SNAP RING,#X31, Ext, E-Type

1шт.

21

140-104

SCREW,Cross Pan Hd, #8 - 32 x 3/4"

Use nut 87653

2шт.

22

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Nylon

2шт.

23

179-166

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

Use nut F45165

2шт.

23

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

Use nut F45165

2шт.

24

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

6шт.

25

87653

NUT,#8-32

2шт.

25a

F45165

SPECIAL NUT,#10-24

No. 10

4шт.

26

368146A1

LATCH

Slam Latch

1шт.

27

397064A1

SPECIAL WASHER

3/8 x 7/8 x 1/16 thk

4шт.

28

232-4246

NUT,3/8"-16, GC

4шт.

29

396841A1

CAP,3/8 Inch x 18.03mm L

4шт.
