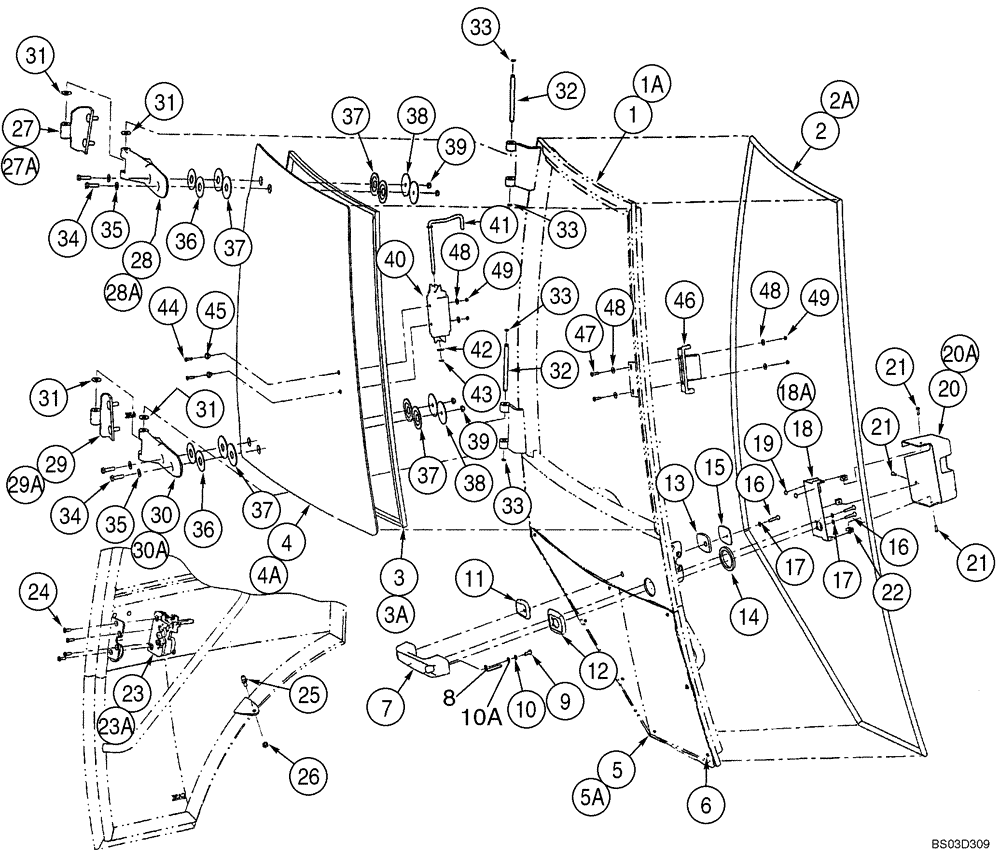

Запчасти Case 580SM (09-56) - CAB - DOORS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

Left-Hand and Right-Hand Cab Doors; Left-Hand Door Not Illustrated

1шт.

394585A2

RH CAB DOOR

Right-Hand Door; Incl. Ref 1 - 49, Except Where Noted For Left-Hand Door; Replaces 394585A1 and 394585A2

1шт.

341743A3

LH CAB DOOR

Left-Hand Door; Incl. Ref 1A - 49, Except Where Noted For Right-Hand Door; Replaces 341743A1 and 341743A2

1шт.

1

NSS

NOT SOLD SEPARAT

Frame; Right-Hand Door

1шт.

1a

NSS

NOT SOLD SEPARAT

Frame; Left-Hand Door

1шт.

2

394707A1

RUBBER STRIP

Right-Hand Door

1шт.

2a

390838A1

RUBBER STRIP

Left-Hand Door

1шт.

3

394708A1

DOOR SEAL,Window, 2926mm L

Window; Upper; Right-Hand Door

1шт.

3a

391850A1

SEAL, GLASS,717.8mm L

Window; Upper; Left-Hand Door

1шт.

4

394700A1

GLASS

Upper; Right-Hand Door

1шт.

4a

338429A1

GLASS

Upper; Left-Hand Door

1шт.

5

338427A1

GLASS,CAB

Lower; Right-Hand Door

1шт.

5a

338426A1

GLASS,CAB

Lower; Left-Hand Door

1шт.

6

391827A1

SPACER,11.1mm D

4 Per Door; Cut Bumpers In Half For 8 Locations

4шт.

7

60-7083T1

HANDLE

Outer

1шт.

8

442718A1

BUTTON

Release; Replaces 391846A1

1шт.

9

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1шт.

10

492-11025

LOCK WASHER,1/4"

1шт.

10a

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

11

315276A1

BEZEL

Small

1шт.

12

315273A1

BEZEL

Large

1шт.

13

391847A1

SEAL,57mm L

Small

1шт.

14

391838A1

SEAL,50.8mm ID x 65mm OD x 6mm Thk

Large

1шт.

15

391848A1

BACK PLATE

1шт.

16

393203A1

SCREW

3шт.

17

393202A1

WASHER

6 mm

3шт.

18

394704A1

BRACKET

Cover Mounting; Right-Hand Door

1шт.

18a

391841A1

BRACKET

Cover Mounting; Left-Hand Door

1шт.

19

391827A1

SPACER,11.1mm D

2шт.

20

394705A1

COVER

Latch; Right-Hand Door

1шт.

20a

391842A1

COVER

Latch; Left-Hand Door

1шт.

21

390-100

SCREW,Cross Pan Hd, #10 - 32 x 5/8"

3шт.

22

393209A1

SPRING NUT

3шт.

23

382777A1

LATCH

Right-Hand Door; Replaces 394703A1

1шт.

23a

382775A1

LATCH

Left-Hand Door; Replaces 391835A1

1шт.

24

569-4

SCREW,Hex Soc Flat Hd, M6 x 20, 8.8

4шт.

25

3234063R1

BALL STUD,M10 x 1.5

M10

1шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

27

394701A1

HINGE

Upper; Right-Hand Door

1шт.

27a

390840A1

HINGE

Upper; Left-Hand Door

1шт.

28

364134A1

HINGE

Plastic; Upper; Right-Hand Door

1шт.

28a

364132A1

HINGE

Plastic; Upper; Left-Hand Door

1шт.

29

394702A1

HINGE

Lower; Right-Hand Door

1шт.

29a

390841A1

HINGE

Lower; Left-Hand Door

1шт.

30

364135A1

HINGE

Plastic; Lower; Right-Hand Door

1шт.

30a

364133A1

HINGE

Plastic; Lower; Left-Hand Door

1шт.

31

391845A1

WASHER,11.1mm ID x 25.4mm OD x 1.6mm Thk

Nylon

4шт.

32

391843A1

PIN,10mm OD x 130mm L

2шт.

33

442773A1

CIRCLIP,7.42mm ID x 16.8mm OD x 0.9mm Thk

Replaces 393330A1

4шт.

34

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

35

895-30107

WASHER,M8 x 20 x 2

4шт.

36

376334A1

WASHER,22mm ID x 55mm OD x 2.8mm Thk

55 mm OD; Yellow

4шт.

37

376336A1

RUBBER WASHER

8шт.

38

376332A1

WASHER,9mm ID x 60mm OD x 3.4mm Thk

60 mm OD; Black

4шт.

39

832-10508

NUT,M8 x 1.25, Cl 8

4шт.

40

368147A1

HANDLE

Slam Latch; Prior to Crenlo Cab S/N 65494

1шт.

40

87344860

HANDLE

Slam Latch; Crenlo Cab S/N 65494 and After

1шт.

41

391849A1

ROD

Used With 100-39001 Ring; 391849A1 Rod No Longer Available, Order 87534372 Rod & 87534717 Push-On Nut

1шт.

42

906086R1

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

1шт.

43

100-39001

SNAP RING,#X31, Ext, E-Type

1шт.

44

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

45

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Nylon

2шт.

46

368146A1

LATCH

Slam Latch; Prior to Crenlo Cab S/N 65494

1шт.

46

87344859

LATCH

Slam Latch; Crenlo Cab S/N 65494 and After

1шт.

47

142-103

SCREW,Phil Oval Hd, Csk, #10 - 24 x 3/4"

2шт.

48

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64")

6шт.

49

F45165

SPECIAL NUT,#10-24

No. 10

4шт.
