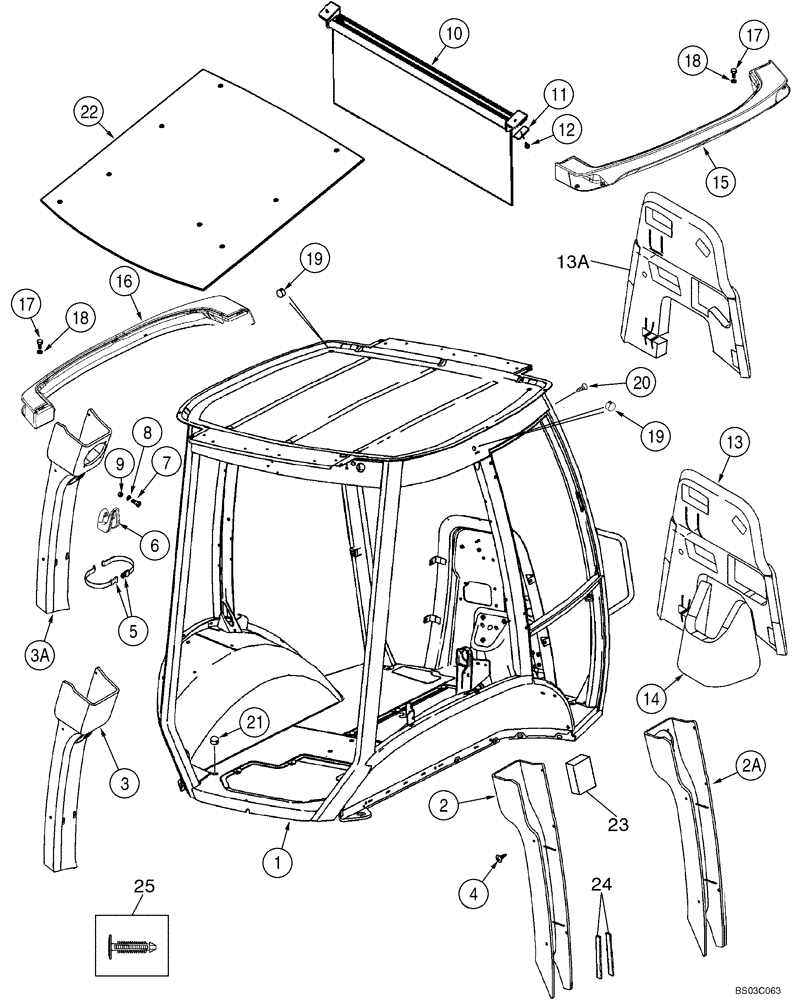

Запчасти Case 580SM (09-55) - CAB - FRAME AND COVERS (09) - CHASSIS/ATTACHMENTS

1

341733A2

FRAME ASSY

Single Door; Replaces 341733A1

1шт.

1

364058A2

FRAME ASSY

Two Door; Replaces 364058A1

1шт.

2

360267A3

COVER

Plastic; Right-Hand Post; Standard Interior

1шт.

2a

379425A3

COVER

Vinyl; With Speaker Holes; Right-Hand Post; Deluxe Interior

1шт.

3

360266A2

COVER

Plastic; Left-Hand Post; Standard Interior

1шт.

3a

379424A2

COVER

Vinyl; With Speaker Holes; Left-Hand Post; Deluxe Interior

1шт.

4

401949A1

FASTENER

10шт.

5

378227A1

STRAP,500mm L

Garment Strap

1шт.

6

114549A1

COAT HOOK

1шт.

7

540-720

SCREW,Cross Pan Hd, M4 x 16

2шт.

8

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

2шт.

9

832-10404

NUT,M4 x 0.7, Cl 8.8

2шт.

10

364180A1

VISOR, SUN

1шт.

11

409618A1

PLATE

1/4 in Mounting Hole; Replaces 376159A1 Plate With 7/32 in Mounting Hole

2шт.

12

396516A1

SCREW,POINTED

No. 10 x 1; With Washer; Phillips

3шт.

13

390601A3

COVER

Firewall; No Longer Available; Order 390601A5, Ref 13A

1шт.

13a

390601A5

COVER

Firewall

1шт.

14

390602A1

COVER

Firewall, Lower

1шт.

15

360247A2

LIGHT ASSY.

Right-Hand

1шт.

16

360246A2

LIGHT ASSY.

Left-Hand

1шт.

17

84270430

SCREW,Torx, Truss HD, M6 x 1 x 20mm

M6 x 20; Replaces 394863A1

10шт.

18

395387A1

SEALING WASHER,6.4mm ID x 22.3mm OD x 1.6mm Thk

6.4 ID; Nylon

10шт.

19

395388A1

PLUG

3шт.

353-415

PLUG,Dome, 1.500" hole, Nylon

Cab Roof; Models Without Radio Antenna

1шт.

353-410

PLUG,Dome, .875" hole, Nylon

Upper Windshield Frame; Models without Radio Antenna

1шт.

353-407

PLUG,Dome, .687" hole, Nylon

Rear Filter Plate on Models without Windshield Washer

1шт.

353-425

PLUG,0.437 Hole OD

7/16 in dia

2шт.

353-421

PLUG,Dome, .187" hole, Nylon

1шт.

353-405

PLUG,Dome, .562" hole, Nylon

9/16

1шт.

353-408

PLUG,Dome, .750" hole, Nylon

1шт.

20

402610A1

FASTENER

Cab Frame; Models Without Exterior Mirrors

8шт.

21

382298A1

PLUG

2шт.

22

368809A1

INSULATOR

Insulation

1шт.

REF

INSTRUCTION

Deluxe or Standard

1шт.

23

412285A1

STRIP

Foam; Adhesive Back; B-Post

1шт.

24

414939A1

SEAL,200mm L

Adhesive Back; B Post

2шт.

25

411399A1

FASTENER

For 1/4 in dia Hole; Christmas Tree Clip; If Used

1шт.
