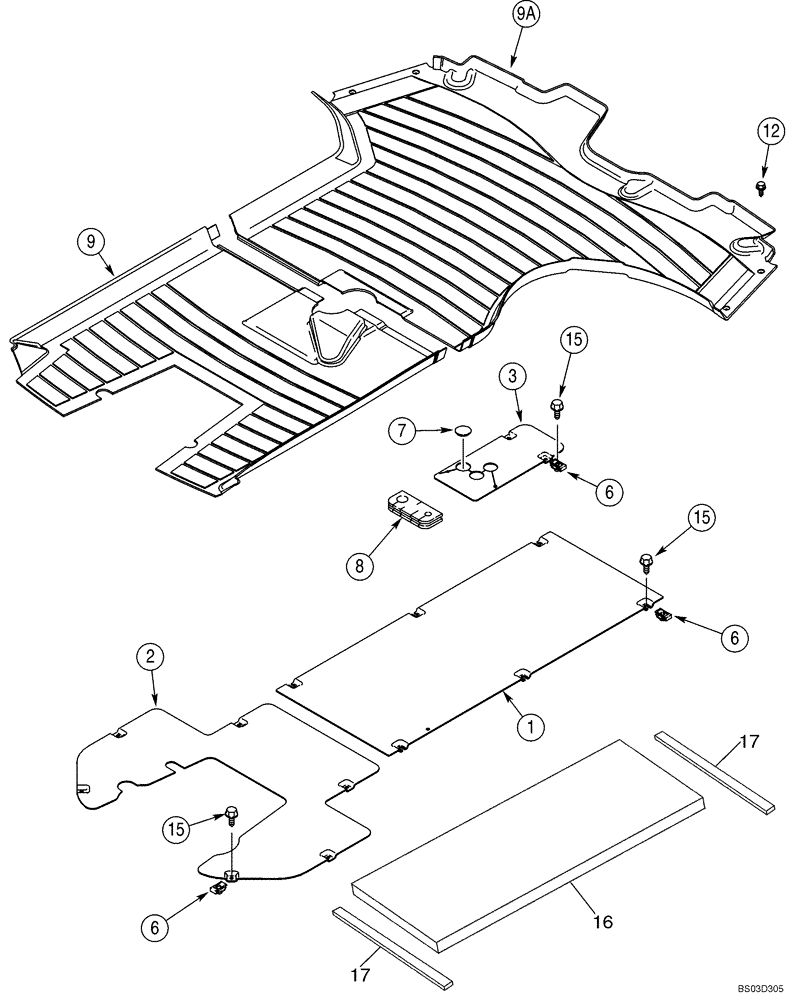

Запчасти Case 580SM (09-43) - PLATES, FLOOR - FLOORMATS (09) - CHASSIS/ATTACHMENTS
3
15
17
6
6
12
16
17
6
2
1
8
15
9
15
9a
7
№
Артикул
Название
Примечание
Количество
1
355984A2
FLOOR
Front
1шт.
2
355983A3
LARGE PLATE
PLATE, LARGE Rear
1шт.
3
127377A1
LARGE PLATE
PLATE, LARGE Loader Control Lever
1шт.
6
833-40406
NUT,M6, U
16шт.
7
353-422
PLUG,Dome, 1.250" hole, Nylon
Models without Clam Bucket
1шт.
8
393623A1
GROMMET
Floor
1шт.
9
390552A1
FLOOR MAT
Rear
1шт.
9a
390551A2
FLOOR MAT
Front
1шт.
12
280-16516
SELF-TAP SCREW,Hex Wash Hd, #10 x 1"
No. 10 x 1
4шт.
15
87310096
BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer
M6 x 25
16шт.
16
411074A1
FOAM INSULATION
Cab Models
1шт.
17
181981A1
SEALING STRIP
Foam; Adhesive Back; Cab Models
2шт.
Выбрано товаров: 12
