Запчасти Case 580SM (09-40) - BAFFLE - PLATE (MODELS WITH AIR CONDITIONING) (09) - CHASSIS/ATTACHMENTS

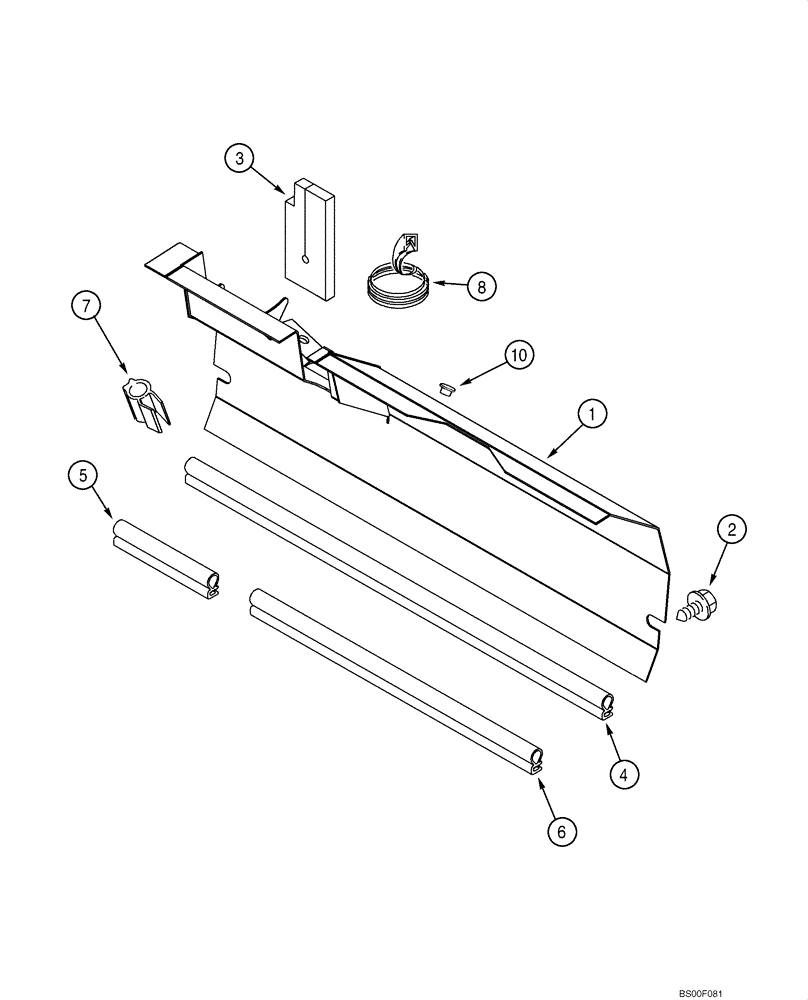

Схема запчастей Case 580SM - (09-40) - BAFFLE - PLATE (MODELS WITH AIR CONDITIONING) (09) - CHASSIS/ATTACHMENTS
10
6
4
2
7
5
1
3
8

Артикул

Название

Примечание

Количество

1

313534A1

PLATE

1,4 mm thk; If Used

1шт.

1

313534A2

PLATE ASSY.

3 mm thk; If Used

1шт.

2

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

M10 x 30

2шт.

3

305690A1

SEAL

Foam; Adhesive Back

1шт.

4

245450A1

RUBBER SEAL,571mm L

571 mm (22-1/2 in)

1шт.

5

246063A1

SEAL

170 mm (6-11/16 in); Cut From 233749A1

1шт.

6

246064A1

SEAL

365 mm (14-3/8 in); Cut From 233749A1

1шт.

7

185493A1

SEAL

160 mm (6-5/16 in); Cut From 137315A1

2шт.

8

D36179

LINING

108 mm (4-1/4 in); Cut From F42827

1шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

If Used

1шт.

Выбрано товаров: 10
