(09-29) - BUCKET, UNIVERSAL BACKHOE (457 MM (18 INCH) WIDE)

Запчасти Case 580SM (09-29) - BUCKET, UNIVERSAL BACKHOE (457 MM (18 INCH) WIDE) (09) - CHASSIS/ATTACHMENTS

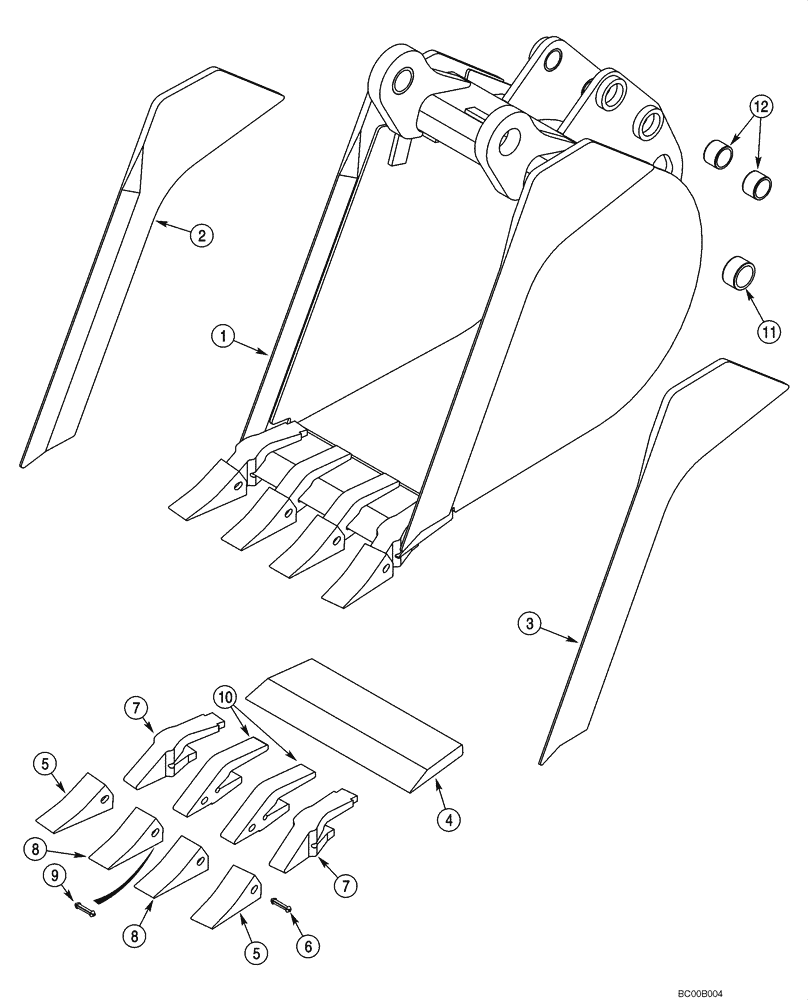

Схема запчастей Case 580SM - (09-29) - BUCKET, UNIVERSAL BACKHOE (457 MM (18 INCH) WIDE) (09) - CHASSIS/ATTACHMENTS
3
6
1
10
9
7
11
12
5
5
2
7
4
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

376384A1

BUCKET

457 mm (18 in), With 4 Teeth; Order Through Parts Marketing; Incl. Ref 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

Edge; Right-Hand

1шт.

3

NSS

NOT SOLD SEPARAT

Edge; Left-Hand

1шт.

4

NSS

NOT SOLD SEPARAT

Edge

1шт.

D139851

BUCKET TOOTH

Outer; Incl. Ref 5 - 7

2шт.

5

D51750

BUCKET TOOTH POINT

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

7

D138157

SHANK

1шт.

D139849

BUCKET TOOTH

Center; Incl. Ref 8 - 10; Order Ref 8 - 10

2шт.

8

D51750

BUCKET TOOTH POINT

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

10

D48212

SHANK

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.
