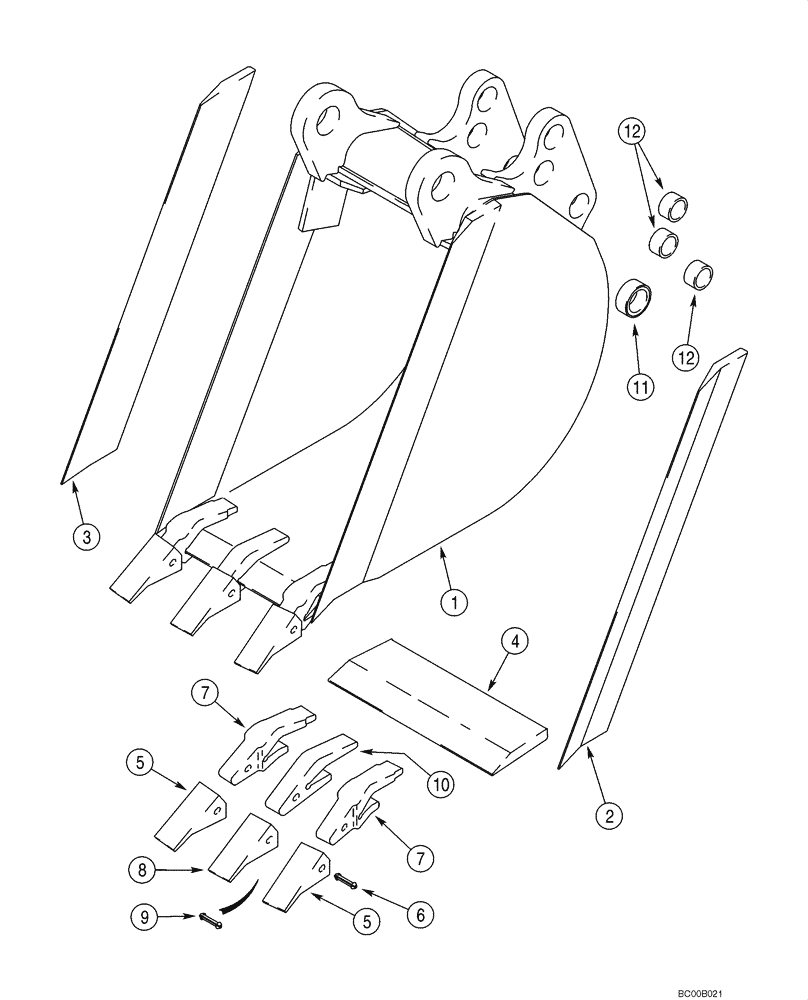

Запчасти Case 580SM (09-28) - BUCKET, UNIVERSAL BACKHOE (406 MM (16 INCH) WIDE) (09) - CHASSIS/ATTACHMENTS

1

388843A1

BUCKET

406 mm (16 in), With 3 Teeth; Order Through Parts Marketing; Incl. Ref 2 - 12

1шт.

2

D146421

EDGE, CUTTING

Right-Hand

1шт.

3

D146420

EDGE, CUTTING

Left-Hand

1шт.

4

D147249

EDGE

1шт.

D139851

BUCKET TOOTH

Outer; Incl. Ref 5 - 7

2шт.

5

D51750

BUCKET TOOTH POINT

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

7

D138157

SHANK

1шт.

D139849

BUCKET TOOTH

Center; Incl. Ref 8 - 10; Order Ref 8 - 10

1шт.

8

D51750

BUCKET TOOTH POINT

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

10

D48212

SHANK

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

6шт.
