(02-13) - OIL FILTER AND COOLER - 4T-390 EMISSIONS CERTIFIED ENGINE

Запчасти Case 580SM (02-13) - OIL FILTER AND COOLER - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

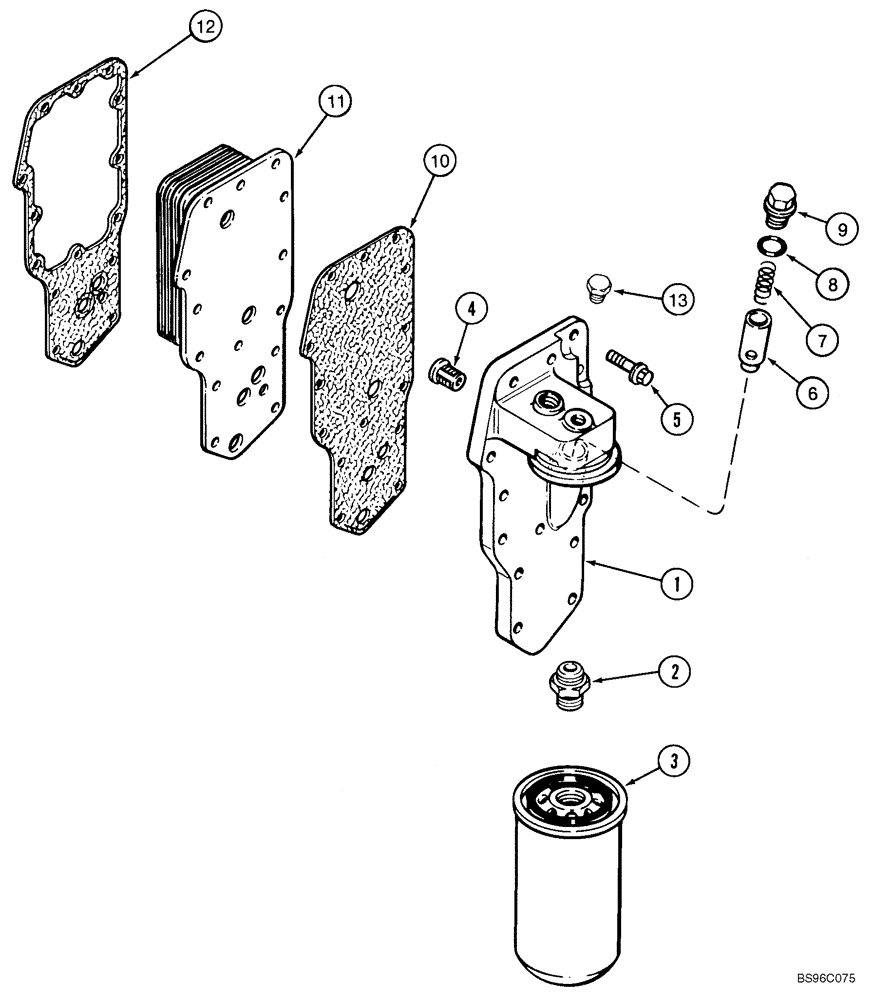

Схема запчастей Case 580SM - (02-13) - OIL FILTER AND COOLER - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
9
11
12
3
2
8
4
1
5
7
10
6
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

J918954

HEAD

Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

2

J909355

ADAPTER

1шт.

3

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

Standard, If Used

1шт.

3

J934429

ENGINE OIL FILTER

Premium, If Used

1шт.

4

J936365

VALVE PRESSURE RELIE

Replaces J933615

1шт.

5

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

6

J918428

PLUNGER

1шт.

7

J918427

SPRING

1шт.

8

J929457

O-RING

23/32 ID x 7/64

1шт.

9

J915787

PLUG

1шт.

10

J942915

GASKET

Replaces J929792

1шт.

11

87416027

OIL COOLER

Replaces J921557

1шт.

12

J942914

GASKET

1шт.

13

J906619

PLUG,1/8" - 27

1/8 PT

1шт.
