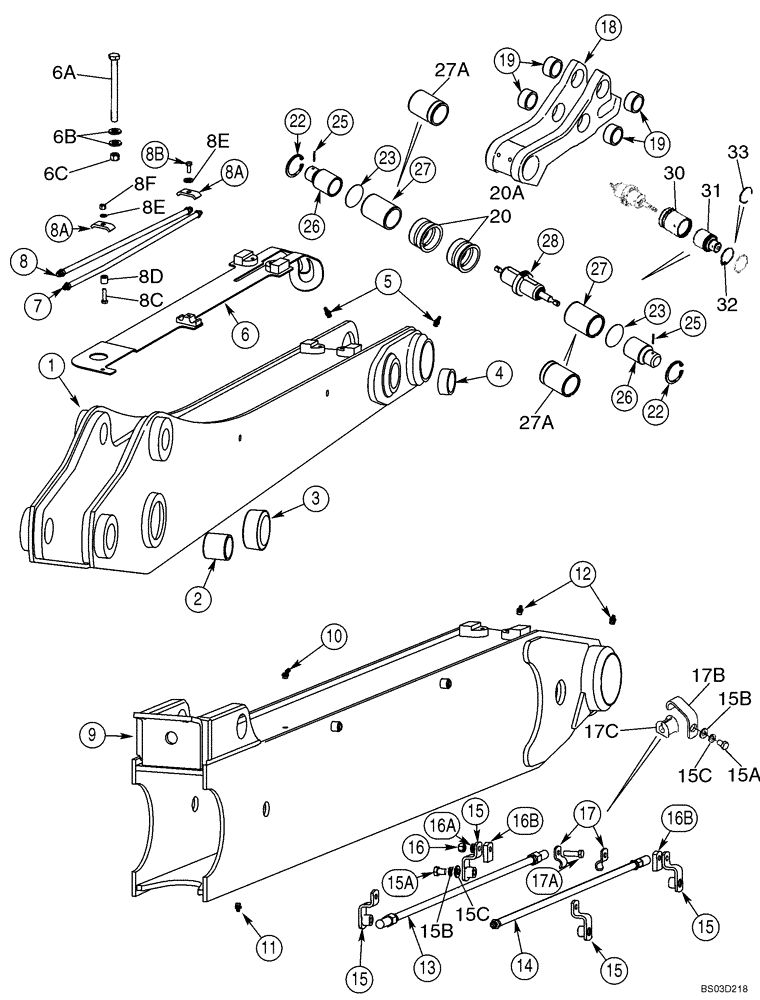

Запчасти Case 580SM (09-26) - DIPPER, BACKHOE - COUPLER, HYDRAULIC (MODELS WITH HYDRAULIC BACKHOE BUCKET COUPLER) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

Standard Dipper

1шт.

1

404807A1

DIPPER

Incl. Ref 2 - 5, 20A

1шт.

2

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm (2-1/8 in) lg

2шт.

3

D150121

BUSHING,70.19mm ID x 94mm OD x 40mm L

70 ID x 36 mm lg

2шт.

4

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

50 x 60 x 25.5 mm lg

2шт.

5

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

6

405716A1

PLATE

1шт.

6a

827-12240

BOLT,Hex, M12 x 1.75 x 240mm, Cl 10.9

1шт.

6b

378921A1

WASHER

2шт.

6c

829-1412

NUT,M12, Cl 10.9

1шт.

7

406168A1

TUBE

See Figure 08-25

1шт.

8

406172A1

TUBE

See Figure 08-25

1шт.

8a

D138055

CLAMP

2шт.

8b

607-8020

BOLT,Hex, M8 x 20mm, Cl 10.9

1шт.

8c

607-8035

BOLT,Hex, M8 x 35mm, Cl 10.9

1шт.

8d

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

1шт.

8e

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8f

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

REF

INSTRUCTION

Extendable Dipper

1шт.

9

392559A2

DIPPER

Outer; Incl. Ref 10 - 12, 20

1шт.

10

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

1шт.

11

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

403840A1

TUBE

See Figure 08-25

1шт.

14

403400A1

TUBE

See Figure 08-25

1шт.

15

404662A1

BRACKET

If Used

4шт.

15a

607-10020

BOLT,Hex, M10 x 20mm, Cl 10.9

4шт.

15b

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 2 mm

4шт.

15c

892-11010

LOCK WASHER,M10

4шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

If Used

4шт.

16a

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If Used

4шт.

16b

406569A1

BACK PLATE

If Used

4шт.

17

409462A1

CLIP

If used

4шт.

17a

607-8030

BOLT,Hex, M8 x 30mm, Cl 10.9

M8 x 30; Lock; If Used

4шт.

17b

445757A1

BRACKET

If Used

4шт.

17c

D67296

GROMMET

If Used

4шт.

REF

INSTRUCTION

Hydraulic Backhoe Bucket Coupler

1шт.

18

417681A1

COUPLING

Incl. Ref 19; Replaces 402528A3

1шт.

19

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

4шт.

20

400934A2

BUSHING,89.13mm ID x 105mm OD x 54mm L

Models With Extendable Dipper

2шт.

20a

400935A3

BUSHING

Models Without Extendable Dipper; Replaces 400935A2

2шт.

22

406624A1

RING,81.38mm OD, Ext

2шт.

23

401342A2

O-RING,76.71mm ID x 2.62mm Width

If Used

2шт.

25

135-1233

GROOVED PIN,5.56mm OD x 38.1mm L

2шт.

26

400932A3

PIN

Replaces 400932A2; No Longer Available; Order Ref 30 - 32

2шт.

27

404803A3

SLEEVE

No Longer Available; Order 407680A2, Ref 27A

2шт.

27a

417680A2

SLEEVE

No Longer Available; Order Ref 30 - 32

2шт.

28

402919A3

CYLINDER ASSY.

Coupler; See Figure 08-26; Replaces 402919A2

1шт.

28

84270939R

REMAN-HYD CYLINDER

Reman For New PN 402919A3

1шт.

28

84270939C

CORE-HYD CYLINDER

Return Number

1шт.

384853A2C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

384853A1C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

384853A3C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

395732A1C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

399910A1C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

402919A2C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

402919A3C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

402919A1C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

87615847C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

29

418070A1

SET SCREW,M10 x 20mm

M10 x 20; Hex Socket

4шт.

30

448676A1

HYD CYL SLEEVE,76.4mm ID x 88.8mm OD x 112.5mm L

2шт.

31

400932A4

PIN,76.2mm OD x 114.5mm L

2шт.

32

434891A1

WIPER SEAL

Wiper

2шт.

33

445364A1

SEALING RING,88mm OD

SEALRING Service Ring; Included In Coupler Cylinder Seal Kit

2шт.
