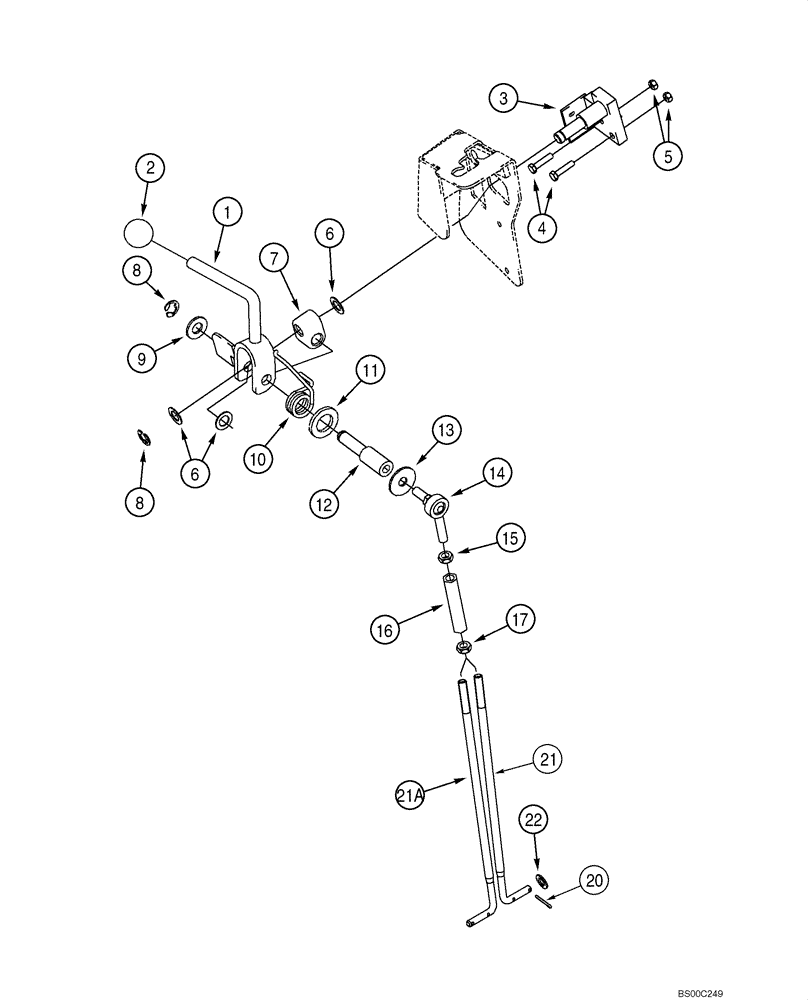

Запчасти Case 580SM (09-19) - CONTROLS - BACKHOE AUXILIARY HYDRAULICS (09) - CHASSIS/ATTACHMENTS

1

275820A3

CRANK LEVER

Auxiliary Control; Detent Lever; Uni-Directional Flow; Activates Flow To The Attachment Through The Use Of The Foot Switch; For Foot Switch, See Figure 04-20

1шт.

2

D59912

KNOB

1шт.

3

275677A1

PIVOT ASSY.

7 or 8 Spool Valve

1шт.

4

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

6

195-81013

WASHER,33/64" x 7/8" x .033"

Used As A Shim

3шт.

7

D136635

BLOCK

1шт.

8

103-3350

SNAP RING,#50, .392" Dia, E-Type

2шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

10

283226A1

SPRING

1шт.

11

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

1шт.

12

276070A1

SHAFT

1шт.

13

495-81002

WASHER,3/8"

7/16 x 1-3/8 x 5/64

1шт.

14

R47941

JOINT TURNING

1шт.

15

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

16

259410A1

TURNBUCKLE

1шт.

17

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

1шт.

20

432-612

COTTER PIN,3/32" x 3/4"

1-2шт.

21

333737A1

ROD

7 Spool Valve; If Used

1шт.

21a

333739A1

ROD

8 Spool Valve; If Used

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
