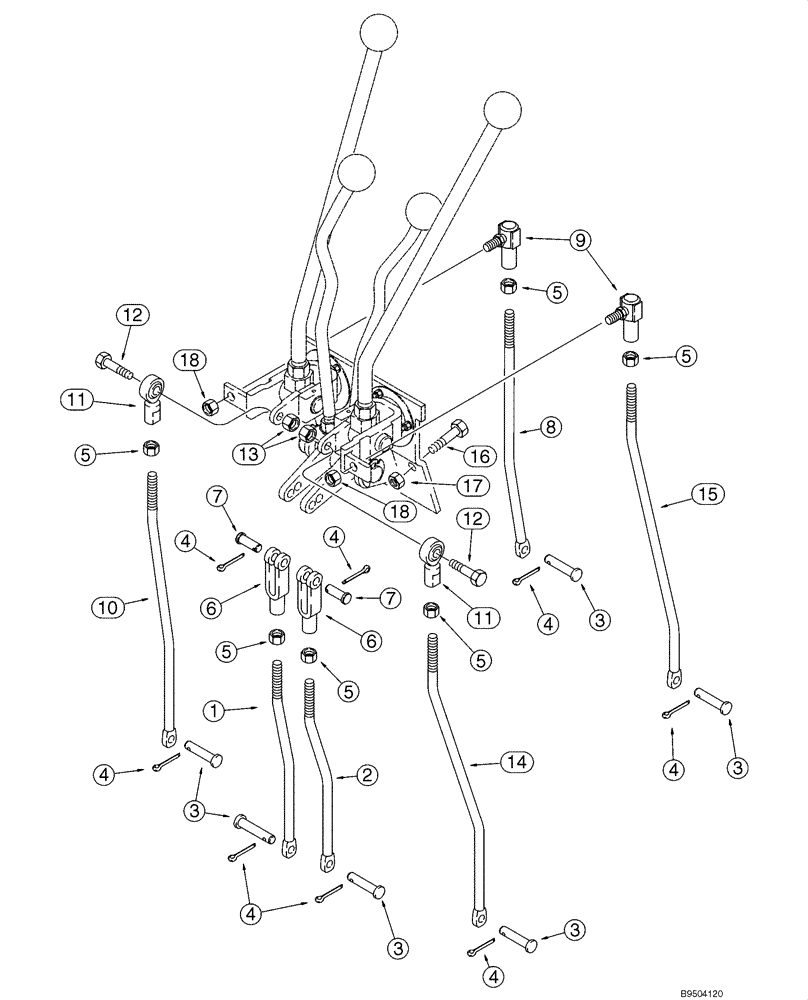

Запчасти Case 580SM (09-16) - CONTROLS - BACKHOE, WITH HAND SWING (MODELS WITHOUT EXTENDABLE DIPPER) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

Lower Control Levers

1шт.

1

185981A1

THREADED ROD

Right-Hand; Stabilizer

1шт.

2

185982A1

THREADED ROD

Left-Hand; Stabilizer

1шт.

3

D149287

PIN,7.9mm OD x 26.72mm L

6шт.

4

432-612

COTTER PIN,3/32" x 3/4"

8шт.

5

425-116

NUT,3/8" - 24, Gr 5

6шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

7

D149288

PIN,8.33mm OD x 30.66mm L

Special

2шт.

8

185977A1

THREADED ROD

Bucket

1шт.

9

D149295

BALL JOINT,3/8"

2шт.

10

185978A1

THREADED ROD

Dipper

1шт.

11

D136773

BALL JOINT

3/8 NF

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

185979A1

THREADED ROD

Boom

1шт.

15

185980A1

THREADED ROD

Swing

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

18

231-2446

NUT,3/8"-24, GB

2шт.
