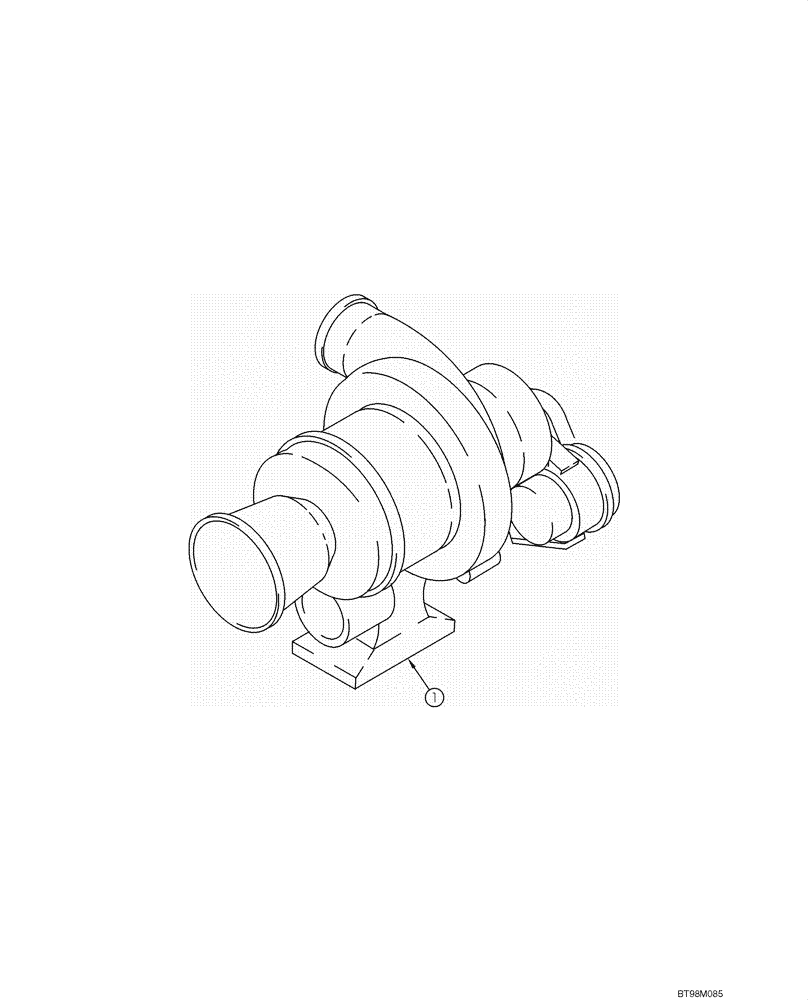

Запчасти Case 580SM (02-12) - TURBOCHARGER ASSY - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J806298

TURBOCHARGER

Kit, With Gaskets; Incl. 1 - 4; Repair Kit Including Wastegate Is Not Serviced by CNH. See a Cummins Distributor For Repair Kit Vendor Part Number 4031494

1шт.

73mm (approx 2.87") center to center hole spacing for mounting turbo with M8 studs (J934178) and nut (J929777)

1шт.

JR806298

REMAN-TURBOCHARGER

Remanufactured Turbocharger, With Gaskets

1шт.

JC596586

CORE-TURBOCHARGER

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

Housing Assy, Center

1шт.

2

J932475

GASKET

Not Illustrated, See Figure 02-11

1шт.

3

J934638

GASKET

Not Illustrated, See Figure 02-11

1шт.

4

J591893

HOSE,4.50 mm ID x 150.00 mm

Not Illustrated

1шт.

5

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Not Illustrated

2шт.

87497963

KIT

Wastegate Actuator, Not Illustrated

1шт.
