Запчасти Case 580SM (09-01) - CONTROLS - LOADER LIFT AND BUCKET (09) - CHASSIS/ATTACHMENTS

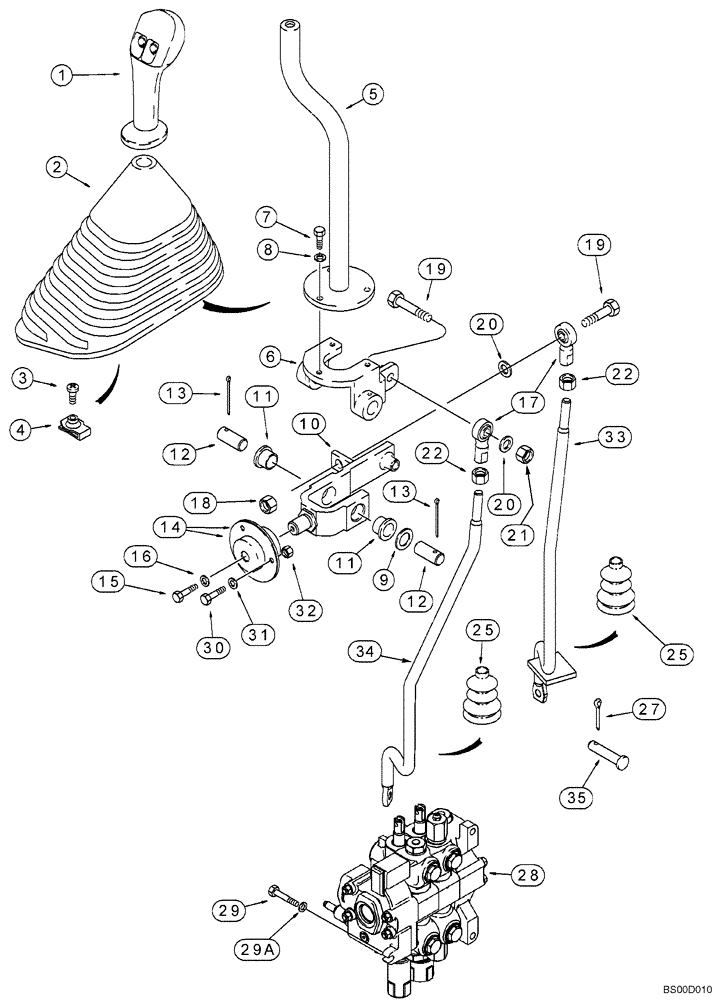

Схема запчастей Case 580SM - (09-01) - CONTROLS - LOADER LIFT AND BUCKET (09) - CHASSIS/ATTACHMENTS
10
7
8
20
17
6
35
34
11
5
30
16
25
29a
20
3
1
12
21
32
28
14
33
18
19
22
13
9
31
19
22
2
29
15
4
12
13
27
11
25

Артикул

Название

Примечание

Количество

1

292904A1

HANDLE

Loader Control Lever, Two Button, Declutch and Differential Lock Switches; Models Without Powershift Transmission

1шт.

1a

293262A1

HANDLE

Loader Control Lever, Two Button, Declutch and Differential Lock Switches; Models With Powershift Transmission; Not Illustrated

1шт.

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR

1шт.

258616A1

LOCK

1шт.

298176A1

PLUG

Not Used With Ref 1A

1шт.

345-133

GLUE

Superbonder 409, 1 ml

1шт.

2

133615A1

BOOT

1шт.

3

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

5

132661A1

LEVER

1шт.

6

195615A1

SUPPORT

1шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

8

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

9

495-81184

WASHER,21/32" x 1 1/2" x .030"

1шт.

10

176311A1

BELLCRANK

Incl. 11

1шт.

11

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

2шт.

12

102761A1

PIN,15.91mm OD x 35mm L

2шт.

13

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

14

112380A1

BEARING ASSY

Incl Ref 14A

2шт.

14a

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

1шт.

15

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

16

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

17

D136773

BALL JOINT

3/8 NF

2шт.

18

231-1446

NUT,3/8" - 16, Gr 5

1шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

425-116

NUT,3/8" - 24, Gr 5

2шт.

25

132931A1

BOOT

2шт.

189109A1

SPRING,Compression, 42mm OD

Boot Retainer; Cab Models

2шт.

27

432-612

COTTER PIN,3/32" x 3/4"

2шт.

28

358236A1

VALVE

Loader Control Valve, Two Spool; See Figure 08-28

1шт.

29

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

3шт.

29a

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

30

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

31

396-41028

WASHER,.281" x 7/8" x .098", HDN

3шт.

32

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

3шт.

33

301045A1

THREADED ROD,417mm L

Bucket Control

1шт.

34

382063A1

ROD

Lift Control

1шт.

35

D149287

PIN,7.9mm OD x 26.72mm L

2шт.

Выбрано товаров: 40
