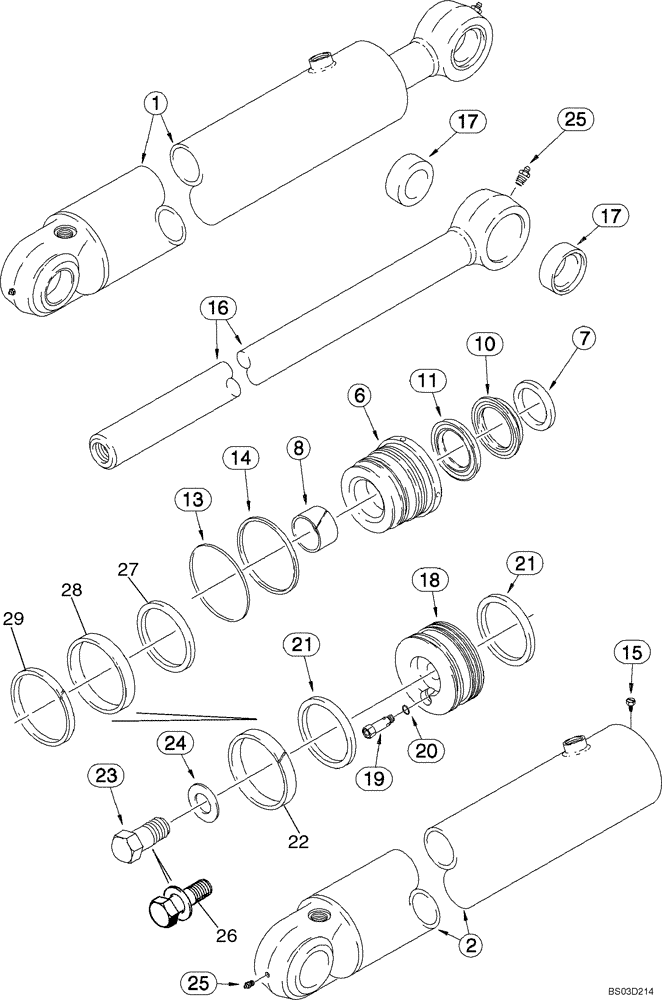

Запчасти Case 580SM (08-59) - CYLINDER ASSY - BACKHOE BOOM (08) - HYDRAULICS

1

310844A1

CYLINDER ASSY.

127 ID x 843 mm strk; 9,7 nom wall; Incl. Ref 2- 26; No Longer Used; Order 378031A1

1шт.

87408036R

REMAN-HYD CYLINDER

580SM, Reman For New P/N's 310844A1 & 87408036

1шт.

87408036C

CORE-HYD CYLINDER

Return Number

1шт.

1

378031A1

CYLINDER ASSY.

127 ID x 843 mm strk; 11,1 nom wall; Incl. Ref 2 - 26; Replaces 310844A1, 9,7 nom wall; If Used

1шт.

87408036R

REMAN-HYD CYLINDER

580SM, Reman For New P/N's 378031A1 & 87408036

1шт.

87408036C

CORE-HYD CYLINDER

Return Number

1шт.

1

87408036

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 842.5mm Stroke

127 ID x 843 mm strk; 11,1 nom wall; Includes Tube Seal, Incl. Ref 2 - 25; If Used

1шт.

87408036R

REMAN-HYD CYLINDER

580SM

1шт.

87408036C

CORE-HYD CYLINDER

Return Number

1шт.

2

304957A1

TUBE,126.87 mm ID, 134.14 mm OD, 1069.8 mm Length

No Longer Used; Order 378030A1

1шт.

2

378030A1

HYD CYL SLEEVE,126.8 mm ID, 149 mm OD, 1069.8 mm Length

Includes Tube Seal; Replaces 304957A1

1шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. Ref 6 - 14

1шт.

6

1542918C3

GLAND

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Incl. Ref 10, 11, (1) G102426 Bearing, Rod; Not Serviced Separately; Order 1542919C2 Seal Kit

1шт.

10

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1542919C2 Seal Kit

1шт.

11

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1542919C2 Seal Kit

1шт.

13

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

14

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

16

123405A6

PISTON ROD

57 mm (2-1/4 in) dia; Incl. Ref 17

1шт.

17

123407A1

BUSHING,60.19mm ID x 70mm OD x 28mm L

2шт.

18

1346018C2

JACK PISTON

If Used

1шт.

18

87408047

JACK PISTON

Piston With 5 in Bore; Used With 87408036 Cylinder Assembly

1шт.

19

1958028C1

VALVE

Cartridge; Component Parts Not Serviced Separately; Incl. Ref 20

1шт.

21

G110269

SEAL,112.5mm ID x 126.88mm OD x 7.29mm Thk

2шт.

22

G102090

RING,127mm OD, Ext

If Used

1шт.

23

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

No Longer Used; Order 86982441, Ref 26

1шт.

24

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

No Longer Used; Order 86982441, Ref. 26

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

26

86982441

SPECIAL BOLT,Hex, 12, 1 1/4 x 3"

1,25 x 3,00 in, Includes Washer; Replaces Ref. 23 and 24

1шт.

27

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

If Used

1шт.

28

336030A1

SEAL,123.8mm ID x 128.52mm OD x 6.96mm Thk

Piston; If Used

1шт.

29

87402622

RING

Cast Iron Ring With 5 in Bore; Used With 87408036 Cylinder Assembly

1шт.

1542919C2

SEAL KIT

Incl. Ref 7 - 14, 21, 22; No Longer Available; Order 1542919C3 Seal Package

1шт.

1542919C3

SEAL KIT

Seal; Incl. Ref 7 - 14, 27, 28, G108712 Wiper, Not Used In This Application; No Longer Used; Order 1542919C4

1шт.

1542919C4

SEAL KIT

Incl. Ref 7 - 14, 27, 28, G108712 Wiper, Not Used In This Application

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.
