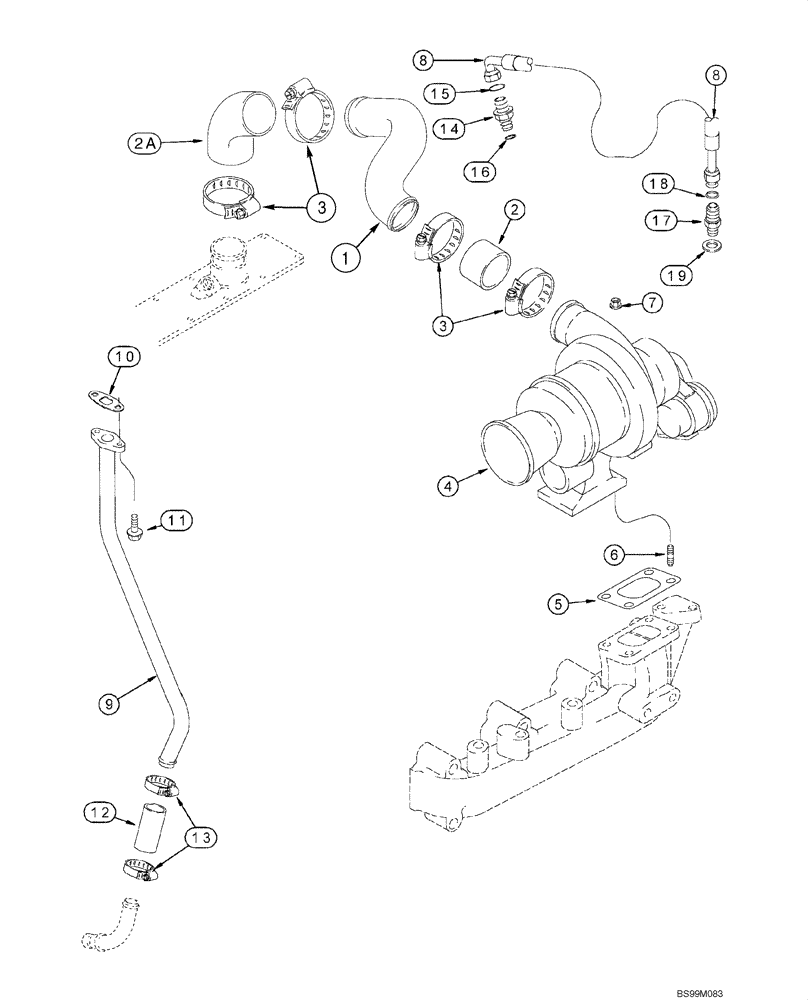

Запчасти Case 580SM (02-11) - TURBOCHARGER SYSTEM - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J931784

TUBE,50.8 mm OD x 255.98 mm L

1шт.

2

J916438

INTAKE AIR HOSE

80 mm (3-1/8 in)

1шт.

2a

CASJ933026

LARGE HOSE

HOSE, 76 mm (3 inch) long, air intake

1шт.

3

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

4

REF

INSTRUCTION

Turbocharger Assy; See Figure 02-12

1шт.

5

J932475

GASKET

1шт.

6

J934178

STUD

M8

4шт.

7

J929777

NUT

M8

4шт.

8

J282159

FLEXIBLE HOSE

1шт.

9

J934459

PIPE ASSY.,19 mm OD

1шт.

10

J934638

GASKET

1шт.

11

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

12

J286499

HOSE

76 mm (3 in); Replaces J931970

1шт.

13

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

Replaces 214-1416

2шт.

14

J922789

HYD CONNECTOR

12mm Incl. 15

1шт.

15

J678603

O-RING,2.2mm Thk x 9.3mm ID

7/16 ID x 1/16

1шт.

16

313262A1

O-RING,0.07" Thk x 0.364" ID

3/8" OD

1шт.

17

J932445

UNION

10mm

1шт.

18

238-7012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

1шт.

19

J932484

WASHER

1шт.
