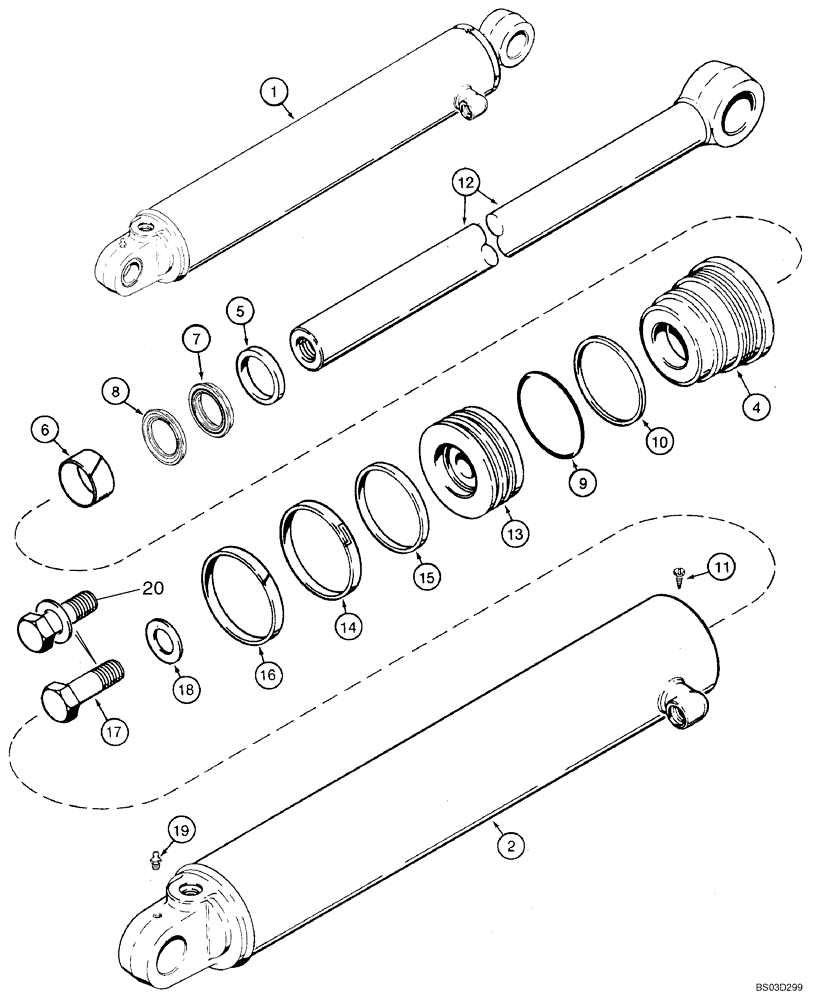

Запчасти Case 580SM (08-57) - CYLINDER ASSY - BACKHOE STABILIZER (08) - HYDRAULICS

1

199720A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

108 ID x 553 mm strk; RH, Incl Ref 2- 20

1шт.

1

199720A1R

REMAN-HYD CYLINDER

Reman For New PN 199720A1

1шт.

1

199720A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

199721A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

108 ID x 553 mm strk; Left-Hand; Incl. Ref 2 - 20

1шт.

1

199721A1R

REMAN-HYD CYLINDER

Reman for New PN 199721A1

1шт.

1

199721A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

199722A1

BARREL,107.82 mm OD

Right-Hand

1шт.

2

199723A1

BARREL,107.82 mm OD

LH

1шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. Ref 4 - 10

1шт.

4

297284A1

GLAND

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

1542876C1

SEAL KIT,50.8mm Rod

Incl Ref 7, 8; Not Serviced Separately; Order 1543275C1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1543275C1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1543275C1 Seal Kit

1шт.

9

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

123726A1

PISTON ROD

51 mm (2 in) dia

1шт.

13

123732A1

PISTON

1шт.

14

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

1шт.

15

G110529

RING

1шт.

16

G110530

RING,108mm OD, Ext

1шт.

17

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

No Longer Used; Order 86982441, Ref 20

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

No Longer Used; Order 86982441, Ref. 20

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

20

86982441

SPECIAL BOLT,Hex, 12, 1 1/4 x 3"

1,25 x 3,00 in, Includes Washer; Replaces Ref 17 and 18

1шт.

1543275C1

SEAL KIT

Incl Ref 5 - 10, 14 - 16 and P/N 1542876C1 and an instruction sheet

1шт.

84155085

SEAL KIT,Reapir, 108.0 x 50.8

Incl Ref 5, 6, 14, 15, 16 and P/N 1542876C1 and an instruction sheet

1шт.
