Запчасти Case 580SM (08-54) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

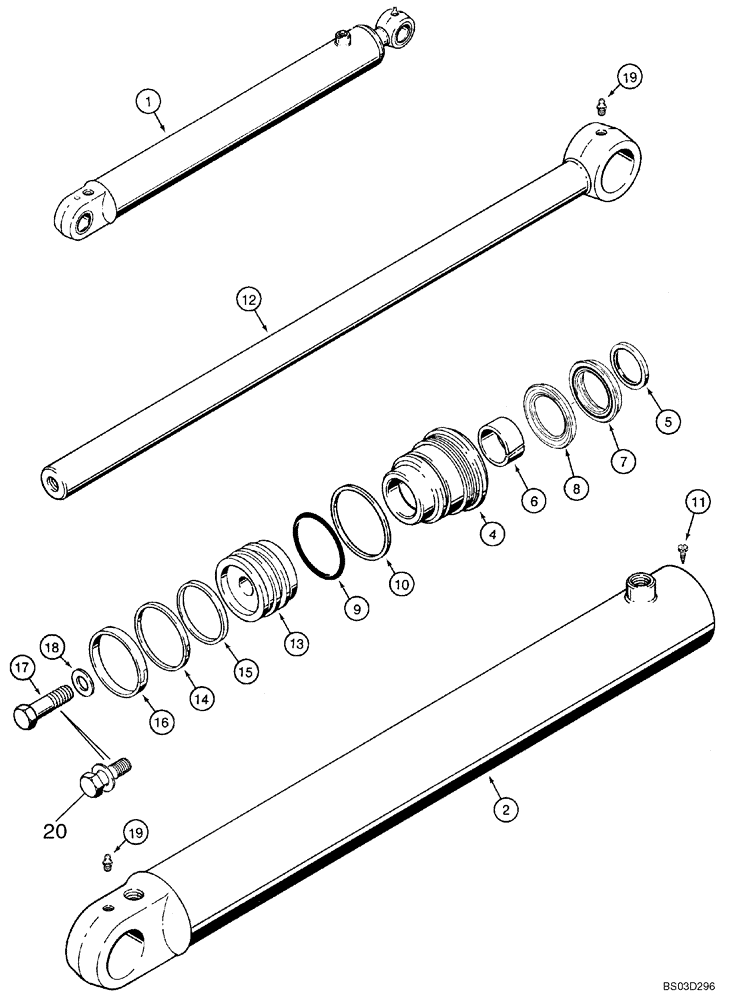

Схема запчастей Case 580SM - (08-54) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS
20
19
11
12
9
7
4
14
16
8
15
6
19
1
17
10
2
18
5
13

Артикул

Название

Примечание

Количество

1

384240A1

LIFT CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

82.6 ID x 766 mm strk; Loader; Incl. Ref 2 - 20

2шт.

1

384240A1R

REMAN-HYD CYLINDER

Lift Cylinder

2шт.

1

384240A1C

CORE-HYD CYLINDER

Return Number

2шт.

2

384241A1

TUBE,82.6mm Bore Dia

Without Bushings

1шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. Ref 4 - 10

1шт.

4

1980321C3

GLAND

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

1542875C1

SEAL KIT,44.4mm Rod

Incl Ref 7, 8; Not Serviced Separately; Order 1543260C1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1543260C1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1543260C1 Seal Kit

1шт.

9

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

133083A1

PISTON ROD

44 mm (1-3/4 in) dia

1шт.

13

135161A1

PISTON,82.07mm Bore, 44.5mm Rod, 50.65mm W

1шт.

14

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

1шт.

15

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

1шт.

16

S109445

RING,82.55mm OD, Ext

1шт.

17

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

No Longer Used; Order 86982437, Ref. 20

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

No Longer Used; Order 86982437, Ref. 20

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1543260C1

SEAL KIT

Incl Ref 5 - 10, 14 - 16

1шт.

20

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1 x 2,5 in; Includes Washer; Replaces Ref 17 and 18

1шт.

Выбрано товаров: 24
