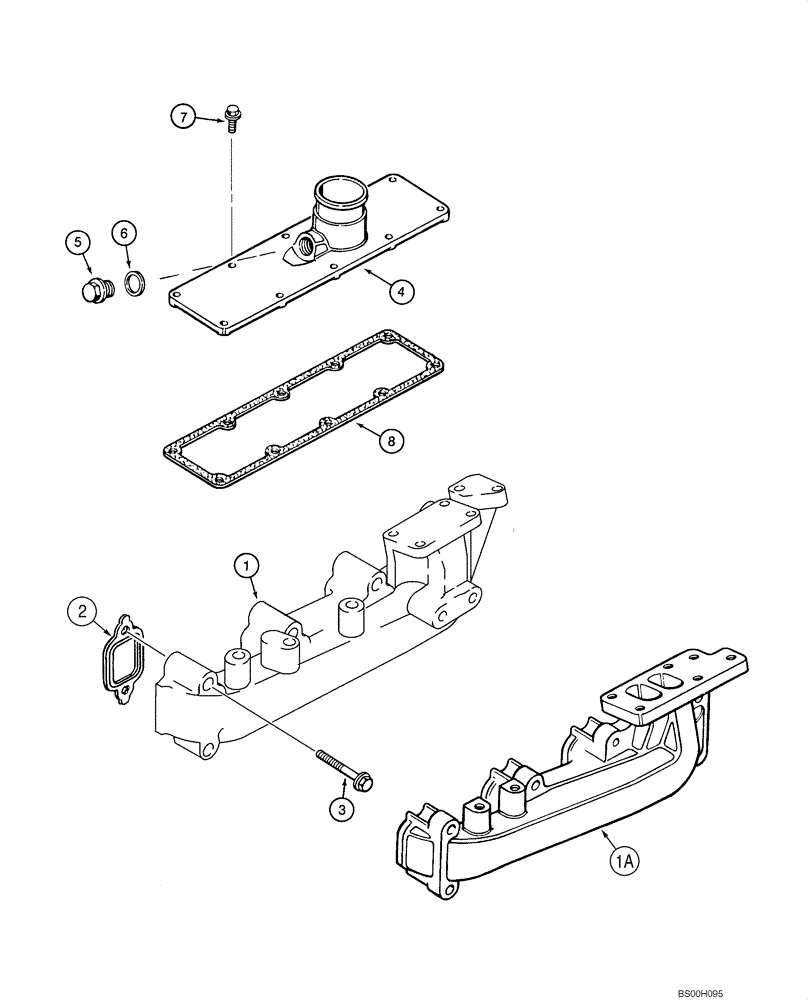

Запчасти Case 580SM (02-10) - MANIFOLDS - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J287119

EXHAUST MANIFOLD

Turbocharged, Replaces J932145

1шт.

73mm (approx 2.87") center to center hole spacing for mounting turbo with M8 studs (J934178) and nut (J929777)

1шт.

Use J901919 manifold with new J818823 - M10 studs, J818824 - M10 flange nut, J901356 gasket and new J802908 turbo. Refer to service via ASIST with any update concerns.

1шт.

1a

J901919

MANIFOLD

No Longer Used On 398153A1 Turbocharged, Engine, Order J287119, REF 1

1шт.

86mm (approx 3.385") center to center hole spacing for mounting turbo with M10 studs (J818823) and nut (J818824)

1шт.

2

J927154

GASKET,0.38mm Thk

4шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

8шт.

4

J904339

COVER

Intake

1шт.

5

J907185

PLUG

1шт.

6

J906773

WASHER

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

10шт.

8

J938153

MANIFOLD GASKET,0.8mm Thk

Replaces J938153

1шт.
