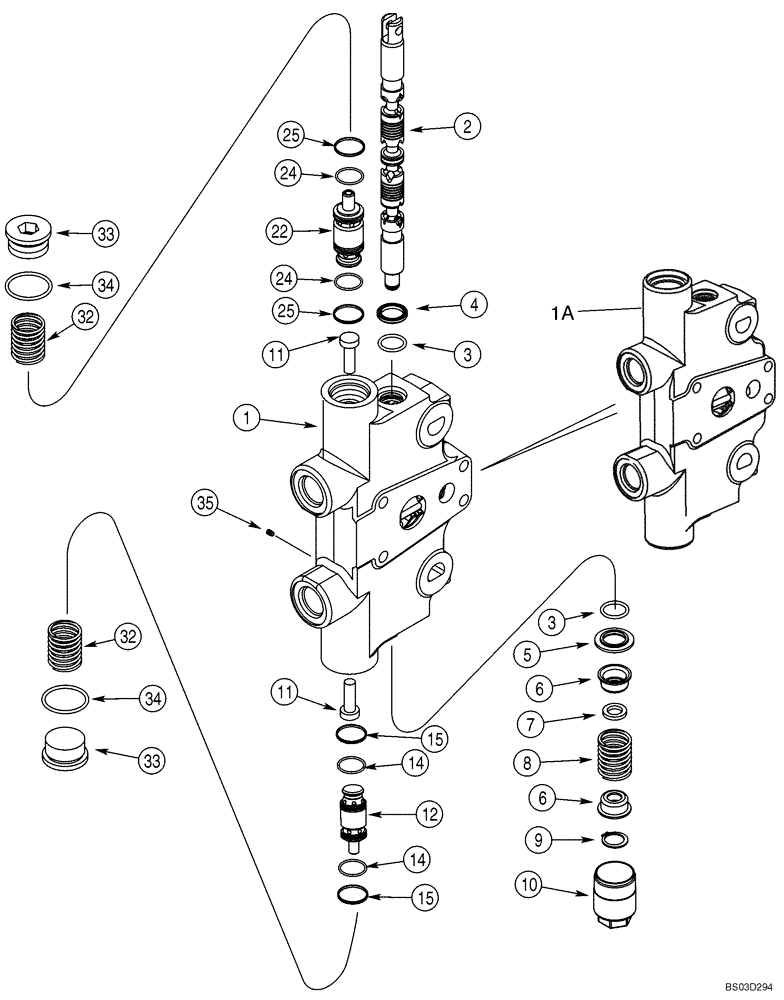

Запчасти Case 580SM (08-44) - VALVE SECTION - BACKHOE BOOM (08) - HYDRAULICS

375782A2

HYD VALVE SECTION

Boom; Incl. Ref 1 - 35

1шт.

375782A2R

REMAN-HYD VALVE

Reman - Boom; Incl. Ref 1 - 35

1шт.

375782A2C

CORE-VALVE HYD

Core Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

1a

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

7

332753A1

SPACER

1шт.

8

1994596C1

SPRING

Purple

1шт.

9

100-1647

SNAP RING,#47, Ext

1шт.

10

G33080

CAP

1шт.

345-601

LOCTITE

No. 203; 1 ml

1шт.

11

375787A2

PISTON

2шт.

12

355477A6

VALVE, CHECK

33,100 kPa; Relief and Anticavitation, Lower; Component Parts Not Serviced Separately; Incl. 14, 15; Replaces 355477A5

1шт.

14

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

Replaces 411401A1, Brown O-Ring

2шт.

15

345501A1

SEAL

2шт.

22

355473A5

VALVE, CHECK

22,100 kPa; Relief and Anticavitation, Upper; Component Parts Not Serviced Separately; Incl. 24, 25

1шт.

24

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

Replaces 411401A1, Brown O-Ring

2шт.

25

345501A1

SEAL

2шт.

32

411317A1

SPRING

2шт.

33

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Incl. Ref 34

2шт.

34

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

35

369263A1

PLUG,6mm OD x 4mm L

4 mm dia

8шт.
