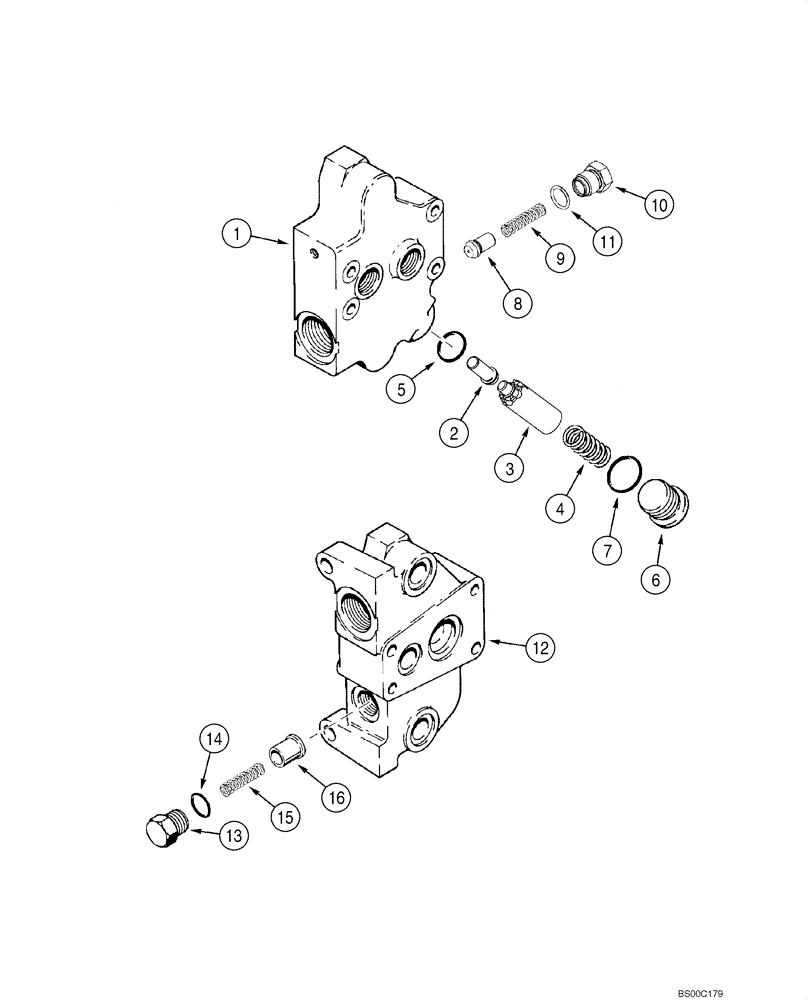

Запчасти Case 580SM (08-40) - VALVE SECTION - INLET AND OUTLET (08) - HYDRAULICS

REF

INSTRUCTION

Backhoe Control Valve Inlet and Outlet Sections

1шт.

REF

INSTRUCTION

Outlet Section

1шт.

400454A1

HYD VALVE SECTION

Outlet; With Hex Plug and Check Valve; Incl. Ref 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

Manifold

1шт.

2

321735A1

PISTON

1шт.

3

321350A1

SPOOL

1шт.

4

396992A1

COIL SPRING

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

365750A1

PLUG

Regeneration; Incl. Ref 6, 7

1шт.

6

327150A1

PLUG

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

8

283417A1

VALVE POPPET,7.14mm ID x 11.68mm OD x 25.4mm L

Check Valve

1шт.

9

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

1шт.

10

293787A1

PLUG,ORB

Incl. Ref 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

REF

INSTRUCTION

Inlet Section

1шт.

1542829C1

HYD VALVE SECTION

Inlet; Incl. Ref 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

Manifold

1шт.

1346221C3

VALVE

Anticavitation Valve; Incl. Ref 13 - 16

1шт.

13

332473A1

PLUG,Hex, 7/8" - 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

15

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

1шт.

16

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

1шт.
