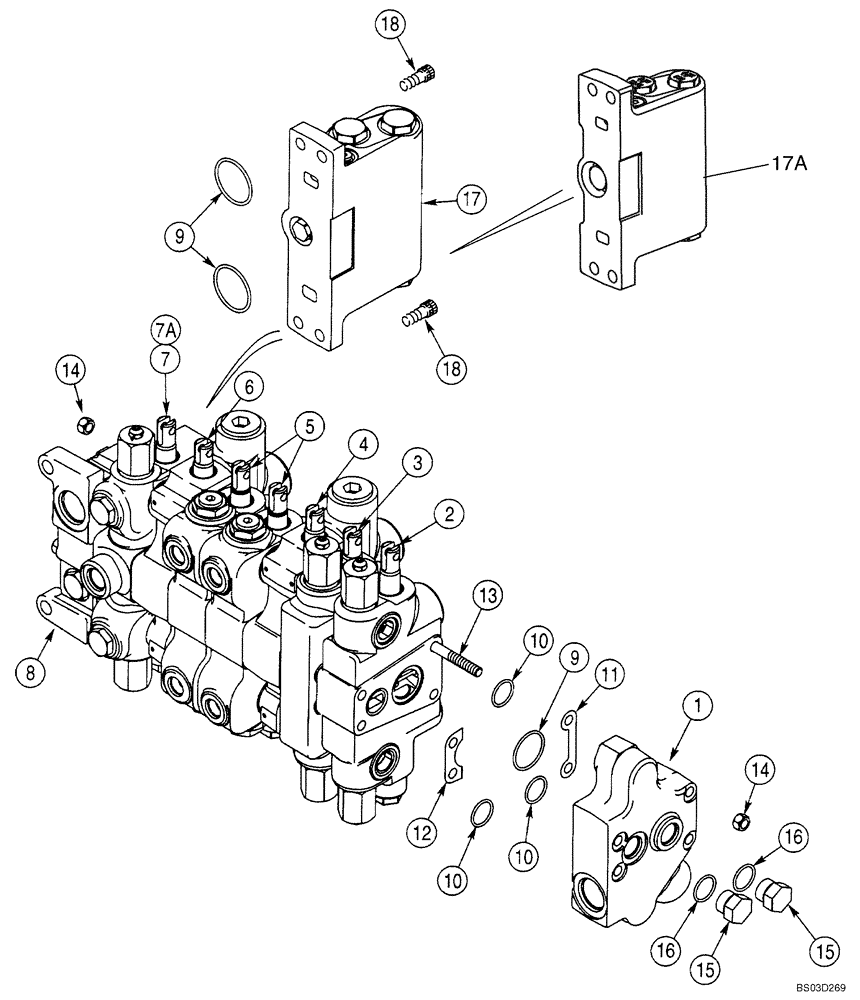

Запчасти Case 580SM (08-37) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (WITHOUT EXTENDABLE DIPPER AND WITH AUXILIARY HYDRAULICS) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
353806A3
VALVE, CONTROL
Foot Swing; Incl. Ref 1 - 7, 8- 18; If Used
1шт.
353807A3
VALVE, CONTROL
Hand Swing; Incl. Ref 1 - 6, 7A - 18; If Used
1шт.
1
400454A1
HYD VALVE SECTION
Outlet; See Figure 08-40
1шт.
2
396997A1
HYD VALVE SECTION
Options; Auxiliary Hydraulics; See Figure 08-48
1шт.
3
396919A1
HYD VALVE SECTION
Bucket; See Figure 08-41
1шт.
4
375783A2
HYD VALVE SECTION
Dipper; See Figure 08-42
1шт.
5
316416A1
VALVE BLOCK
Stabilizer; Left-Hand and Right-Hand; See Figure 08-43
2шт.
6
375782A2
HYD VALVE SECTION
Boom; See Figure 08-44
1шт.
6
375782A2R
REMAN-HYD VALVE
Reman - Boom; See Figure 08-44
1шт.
6
375782A2C
CORE-VALVE HYD
Core Return Number
1шт.
7
241088A5
HYD VALVE SECTION
Swing; Foot Swing Control Valve; See Figure 08-45
1шт.
7a
243145A5
HYD VALVE SECTION
Swing; Hand Swing Control Valve; See Figure 08-45
1шт.
8
1542829C1
HYD VALVE SECTION
Inlet; See Figure 08-40
1шт.
9
238-6127
O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro
10шт.
10
238-6119
O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro
24шт.
11
G107251
SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk
8шт.
12
G33965
SHIM,22.86mm OD x 0.06mm Thk
8шт.
13
G108899
ROD
3/8 x 18-15/16 in
4шт.
14
425-106
NUT,3/8"-16, Cl 5
8шт.
15
86512512
PLUG,7/8" - 14 ORB
Incl. Ref 16
2шт.
16
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Boss Seal
1шт.
17
387627A1
VALVE, CUSHION
Swing; See Figure 08-46; No Longer Available; Order 387627A2, Ref. 17A
1шт.
17a
387627A2
VALVE, CUSHION
Swing; See Figure 08-46
1шт.
18
863-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
M10 x 30; 12.9
4шт.
SEAL KIT
Seal; Incl. Ref 9, 10; Plus Additional O-Rings Not Required For This Application; No Longer Used; Order 437754A1, Seal Kit
1шт.
437754A1
SEAL KIT
Incl. Ref 9, 10; Plus Additional O-Rings Not Required For This Application; Replaces 1346107C2, Seal Kit
1шт.
Выбрано товаров: 26
