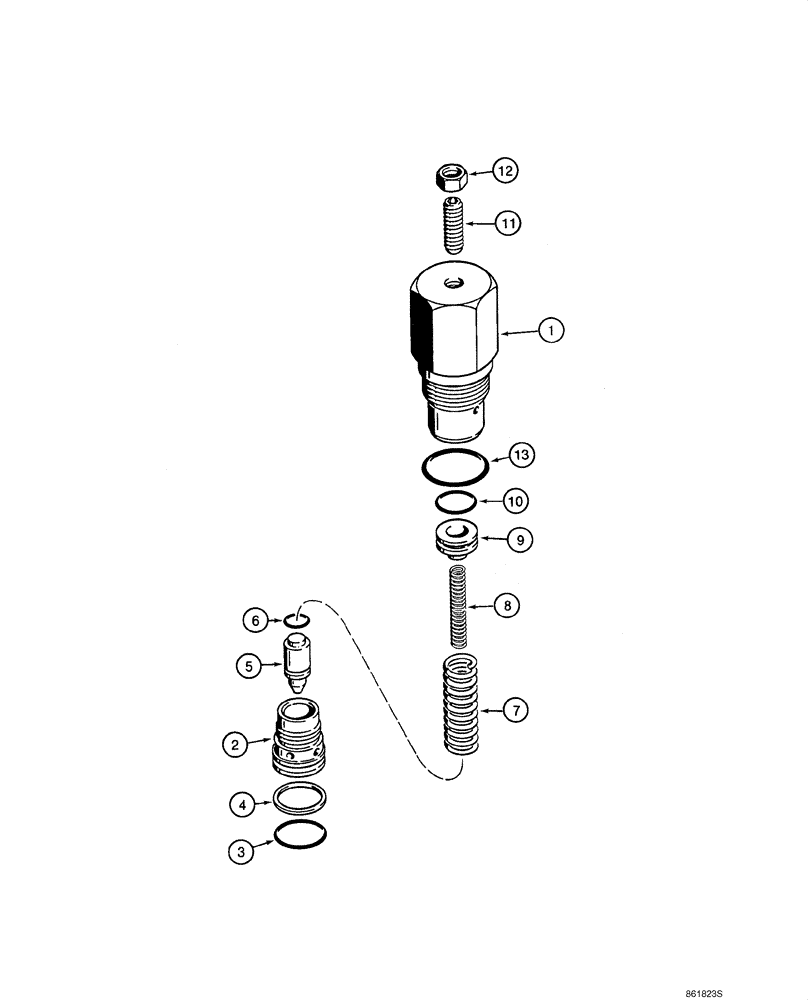

Запчасти Case 580SM (08-35) - VALVE ASSY - RELIEF, CIRCUIT (08) - HYDRAULICS

REF

INSTRUCTION

Bucket Section Circuit Relief Valve

1шт.

G109391

VALVE

3200 psi; Circuit Relief Valve; Incl. Ref 1 - 13; Used In Production; Order G109449 Circuit Relief Valve Kit For Service

2шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Seat

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

G109449

KIT

Service For G109391 Circuit Relief Valve; Kit Includes Instruction Sheet and G109447 Circuit Relief Valve; Which Is The Same As G109391 Except With A Different Pressure Setting

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Spring

1шт.

9

NSS

NOT SOLD SEPARAT

Piston

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

1шт.

12

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.
