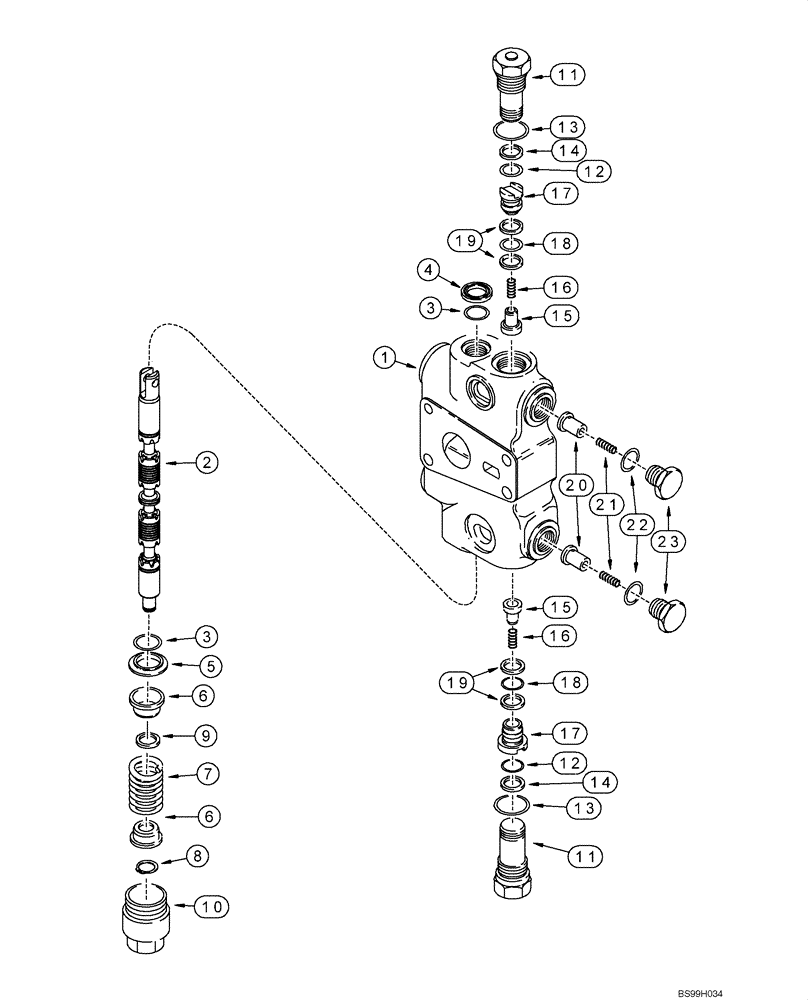

Запчасти Case 580SM (08-34) - VALVE SECTION - LOADER CLAM (08) - HYDRAULICS

332754A2

HYD VALVE SECTION

Clam; Incl. Ref 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

7

360361A1

SPRING

1шт.

8

100-1647

SNAP RING,#47, Ext

1шт.

9

332753A1

SPACER

1шт.

10

P0033080G

SCREW

1шт.

345-601

LOCTITE

No 203, 1 ml

1шт.

G33122

PLUG,ORB

Load Check Valve Port; Incl. Ref 11 - 14

2шт.

11

NSS

NOT SOLD SEPARAT

Plug

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

14

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

1346105C2

SEAL KIT

Seal; Incl. Ref 3, 4, 12 - 14, 18, 19; Plus Additional O-Rings Not Required For This Application

1шт.

1346219C3

VALVE, CHECK

Load Check Valve; Incl. Ref 15 - 19

2шт.

15

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

Hollow Poppet Pin With Orifice

1шт.

16

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

1шт.

17

1343708C1

PLUG

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

19

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

2шт.

1346221C3

VALVE

Anticavitation Valve; Incl. Ref 20 - 23

2шт.

20

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

1шт.

21

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

332473A1

PLUG,Hex, 7/8" - 14

1шт.
