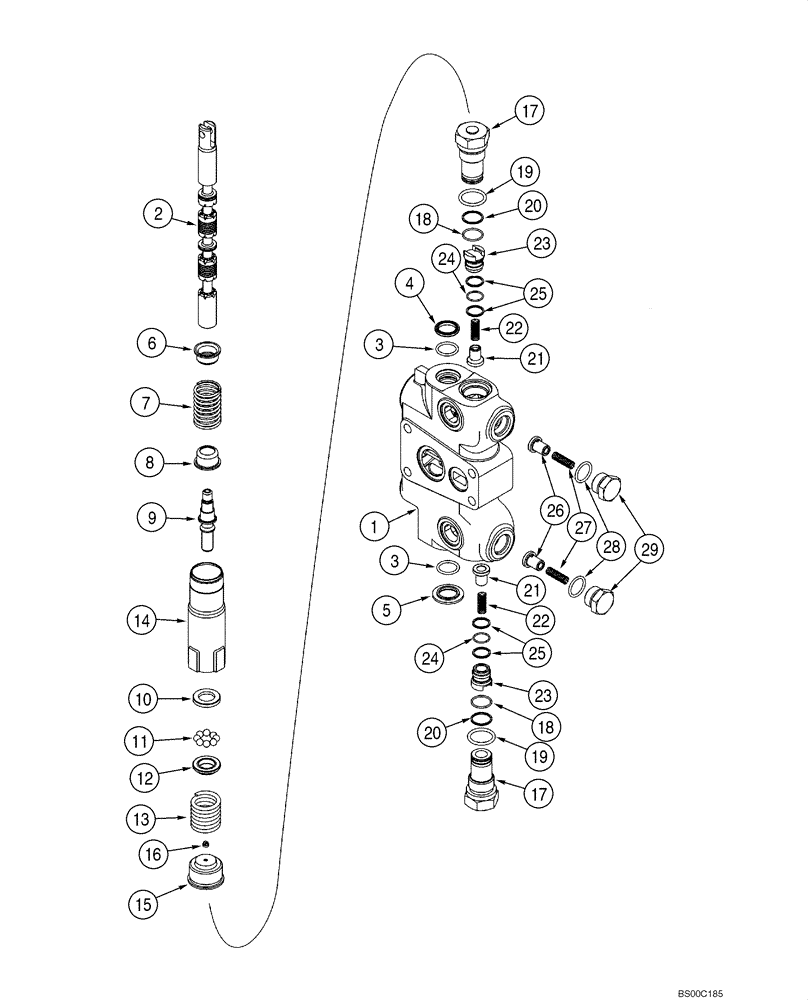

Запчасти Case 580SM (08-32) - VALVE SECTION - LOADER LIFT (08) - HYDRAULICS

357817A1

VALVE BLOCK

Lift; With Manual Detent; Incl. Ref 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

1шт.

7

1986612C1

SPRING,Compression, 28.575mm OD x 72.74mm L

1шт.

8

G106395

RETAINER,16mm ID, 27.9mm OD

1шт.

9

G106396

SHAFT,74.68mm L

Replaces 307215A1 Shaft, Used In Production

1шт.

10

G109127

WASHER,17.4mm ID x 28.9mm OD x 3.96mm Thk, MS450

1шт.

11

211-1009

BALL

9/32; 24,CRS

8шт.

12

G106398

RETAINER,16.76mm ID x 29.21mm OD x 6.48mm Thk

1шт.

13

1986568C1

SPRING,Compression, 31.24mm OD x 45.64mm L

1шт.

14

G106425

HOUSING,1-3/8" - 18 x 1-3/8" - 18

1шт.

1346105C2

SEAL KIT

Seal; Incl. Ref 3, 4, 18 - 20, 24, 25; Plus Additional O-Rings Not Required For This Application

1шт.

15

G109384

PLUG,3/8" - 18

Magnetic Detent

1шт.

16

G107780

VALVE, CHECK

1шт.

G33122

PLUG,ORB

Load Check Valve Port; Incl. Ref 17 - 20

2шт.

17

NSS

NOT SOLD SEPARAT

Plug

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

20

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

1346219C3

VALVE, CHECK

Load Check Valve; Incl. Ref 21 - 25

2шт.

21

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

Hollow Poppet Pin With Orifice

1шт.

22

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

1шт.

23

1343708C1

PLUG

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

25

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

2шт.

1346221C3

VALVE

Anticavitation Valve; Incl. 26 - 29

2шт.

26

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

1шт.

27

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

332473A1

PLUG,Hex, 7/8" - 14

1шт.

1346105C2

SEAL KIT

Seal; Incl. 3, 4, 18 - 20, 24, 25; Plus Additional O-Rings Not Required For This Application

1шт.
