Запчасти Case 580SM (02-08) - WATER PUMP SYSTEM - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

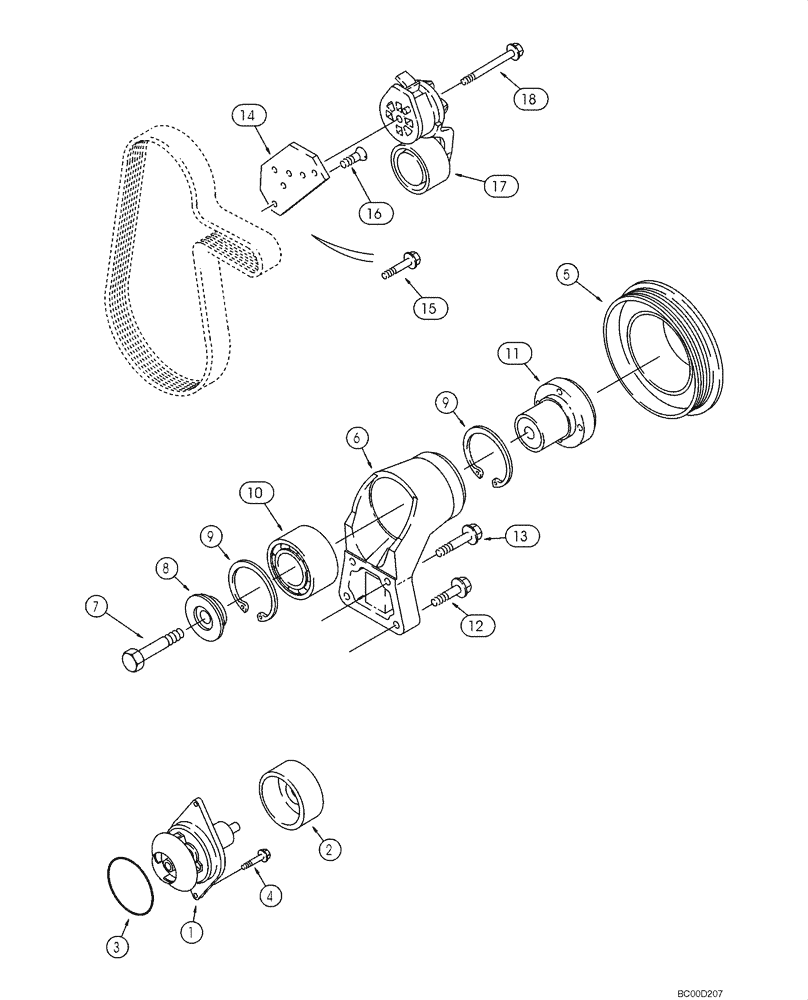

Схема запчастей Case 580SM - (02-08) - WATER PUMP SYSTEM - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
18
9
12
13
8
11
1
15
9
5
14
10
17
16
7
4
3
2
6

Артикул

Название

Примечание

Количество

J286277

PUMP, WATER

Incl. 1 - 3; Replaces J802970

1шт.

J286278R

REMAN-WATER PUMP

580SM

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

J802970 Kit

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16, J286277 Kit

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

Models Without Powershift Transmission

1шт.

5

J914459

PULLEY

Models With Powershift Transmission

1шт.

6

J911205

BRACKET

Incl. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

8

J923044

RETAINER

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

1шт.

12

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

2шт.

13

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

14

J925195

SUPPORT

Models Without Powershift Transmission

1шт.

14a

J934469

SUPPORT

Models With Powershift Transmission; Not Illustrated

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1-2шт.

17

J936203

BELT TENSIONER

Models Without Powershift Transmission

1шт.

17

J936209

TENSIONER

Models With Powershift Transmission

1шт.

18

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

Models without Powershift Transmission

1шт.

18

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

Models With Powershift Transmission

1шт.

Выбрано товаров: 26
