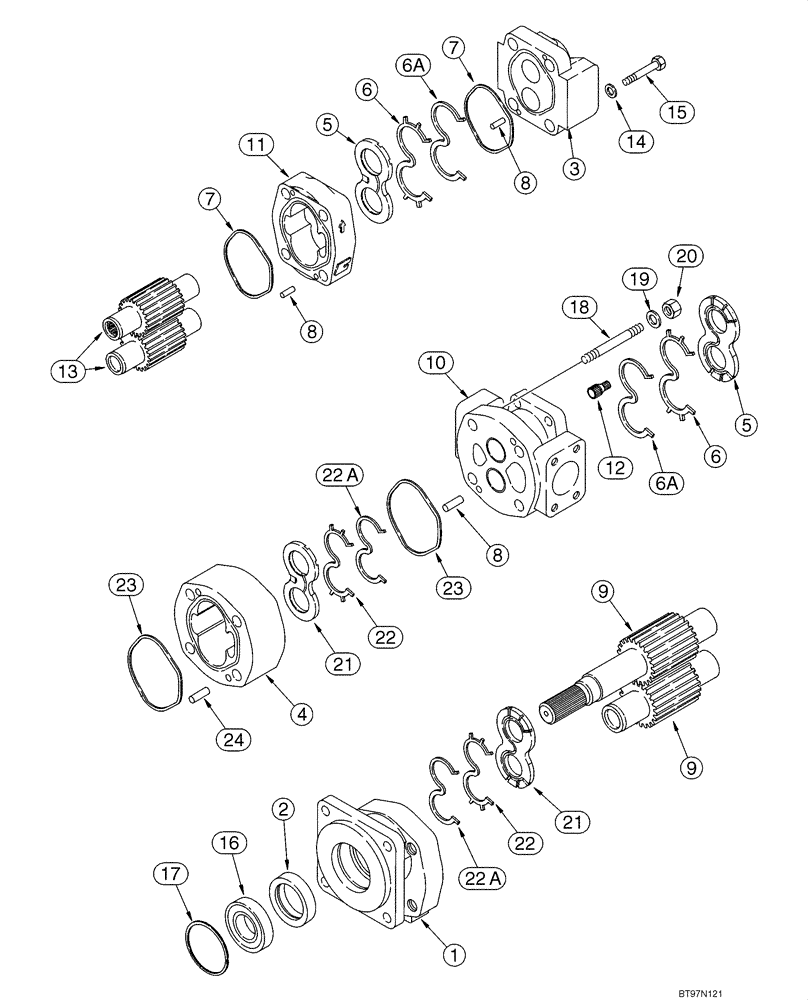

Запчасти Case 580SM (08-27) - PUMP, EQUIPMENT HYDRAULIC (08) - HYDRAULICS

257954A1

PUMP, HYDRAULIC

Incl. Ref 1 - 24; No Longer Available, Order 87433897 Complete Pump, 87437920 Coupling, 87429360 Adapter Plate

1шт.

See Service Bulletin NLB SB 002 2004 Before Installing

1шт.

87433897R

REMAN-HYD PUMP

580SM - LOADER BACKHOE (NORTH AMERICA) - Reman For New P/N 257954A1

1шт.

87433897C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Cover, Shaft End

1шт.

2

L32318

SEAL

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Closed End

1шт.

4

142733A1

HOUSING

1шт.

5

111594A1

LARGE PLATE

PLATE, LARGE

2шт.

6

293926A1

SEAL

2шт.

6a

293925A1

SEAL

2шт.

7

111596A1

SEAL

3-1/4 ID x 3/32 in

2шт.

8

111597A1

ELEC. TERMINAL PIN

1/4 x 1/16

4шт.

9

NSS

NOT SOLD SEPARAT

17 T, Gear, Set

1шт.

10

NSS

NOT SOLD SEPARAT

Housing

1шт.

11

142735A1

HOUSING

1шт.

12

111593A1

SHAFT

1шт.

13

NSS

NOT SOLD SEPARAT

Gear, Set

1шт.

14

111588A1

WASHER

17/32 x 15/16 x 3/16

4шт.

15

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

4шт.

16

S88754

BALL BEARING

1шт.

17

S88756

SNAP RING,#283, 3.009", Int, Spiral

1шт.

18

111583A1

STUD

4шт.

293924A1

SEAL KIT

Seal; Incl. Ref 2, 5 - 7, 21 - 23

1шт.

19

19-488

WASHER

11/16 x 1-11/32 x 3/16

4шт.

20

429-1010

NUT,5/8"-11, G8

4шт.

21

111589A1

LARGE PLATE

PLATE, LARGE

2шт.

22

293927A1

SEAL

2шт.

22a

293928A1

SEAL

2шт.

23

111592A1

SEAL,Square, 3.4mm Thk x 113.9mm ID

4-31/64 ID x 1/8 in

2шт.

24

W16323

DOWEL

4шт.

293924A1

SEAL KIT

Seal; Incl. Ref 2, 5 - 7, 21 - 23

1шт.
