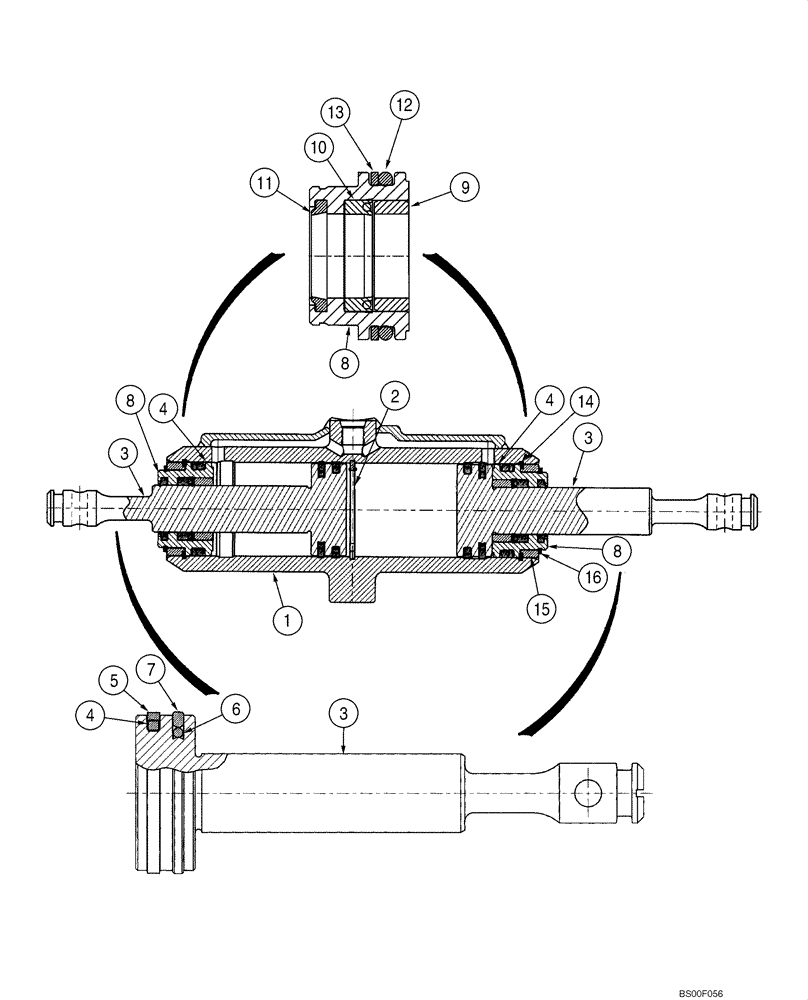

Запчасти Case 580SM (08-26) - CYLINDER - COUPLER, BACKHOE BUCKET (08) - HYDRAULICS

402919A3

CYLINDER ASSY.

Backhoe Bucket Coupler Cylinder; Incl. Ref 1 - 16, 390320A2; Replaces 402919A2

1шт.

84270939R

REMAN-HYD CYLINDER

Reman For New PN 402919A3

1шт.

84270939C

CORE-HYD CYLINDER

Return Number

1шт.

384853A2C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

384853A1C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

384853A3C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

395732A1C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

399910A1C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

402919A2C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

402919A3C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

402919A1C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only (580SM)

1шт.

1

402930A1

TUBE

Includes 369263A1

1шт.

369263A1

PLUG,6mm OD x 4mm L

4шт.

2

800-6138

SNAP RING,M38, Int

1шт.

NSS

NOT SOLD SEPARAT

Rod Assy; Incl. Ref 3 - 7

2шт.

3

399907A2

ROD,19.1mm Dia, 38.1mm Bore x 100.50mm L

1шт.

4

353078A1

RING,27.35mm ID x 29.97mm OD x 2.59mm W

1шт.

5

353079A1

SEAL,37.24mm Id x 39.09mm OD x 3.07mm W

38,1 dia; Replaces 404203A1, Seal Used On Some Cylinders

1шт.

6

395609A1

O-RING,26.7mm ID x 2.38mm Width

1шт.

7

384844A1

RING,35.46mm ID x 39.2mm OD x 2.7mm W

1шт.

311459A2

GLAND

Incl. Ref 8 - 13

2шт.

8

NSS

NOT SOLD SEPARAT

Gland, Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Bushing

1шт.

10

D83187

SEAL,19.05mm ID x 25.4mm OD x 7.18mm W

1шт.

11

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

1шт.

12

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

13

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

SEALRING

1шт.

14

102-23150

SNAP RING,#150, 1.591", Int, Spiral

2шт.

15

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

2шт.

16

102-12125

SNAP RING,#125, 1.188", Ext Spiral

2шт.

390320A4

SEAL KIT

Seal; Incl. Ref 4 - 16; Replaces 390320A3; Also Includes (2) 390317A1, Rings; (1) 445364A1, Service Ring For Cylinder Tube End Coupler Outer Sleeve End

1шт.
