Запчасти Case 580SM (02-07) - ENGINE - MOUNTING (02) - ENGINE

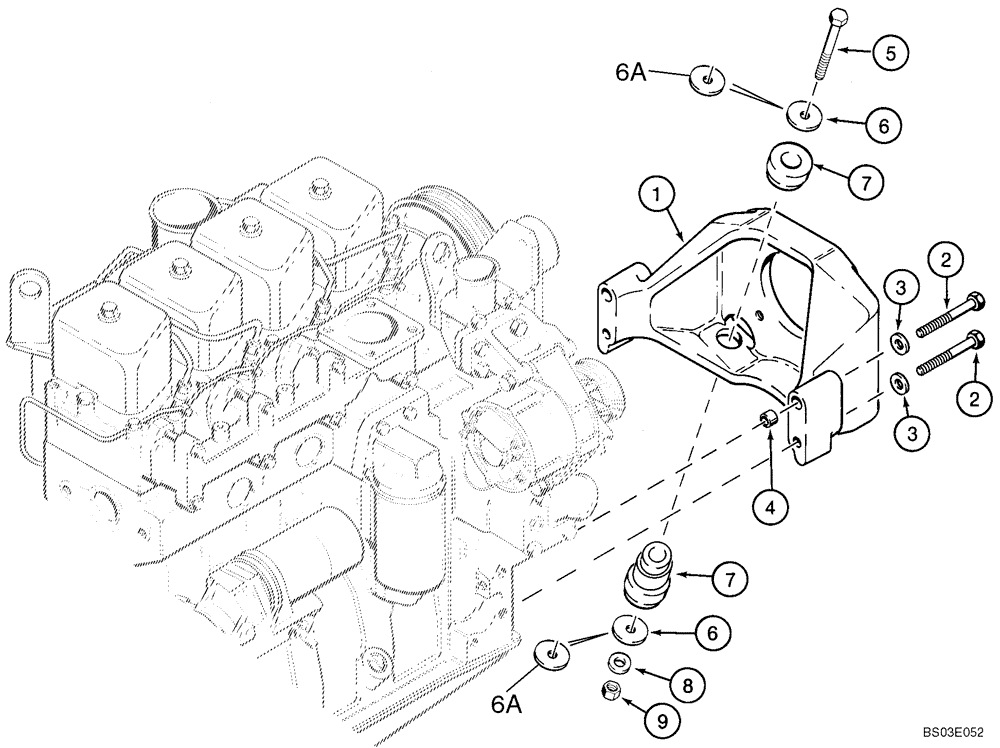

Схема запчастей Case 580SM - (02-07) - ENGINE - MOUNTING (02) - ENGINE
6a
1
2
3
7
2
7
8
3
6
5
6
4
9
6a

Артикул

Название

Примечание

Количество

1

175637A1

SUPPORT

1шт.

2

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

4шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

4

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

Dowel, Used as a Spacer, Upper Bolt Holes

2шт.

5

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

Without Blue 3M Scotch Grip; Used with 117844A1 Mount

2шт.

5a

86992193

BOLT

M12 x 90; With Blue 3M Scotch Grip; Used With 413153A1 Mount; Not Illustrated

2шт.

5b

87418165

BOLT

M12 x 95; With Blue 3M Scotch Grip; Not Illustrated

2шт.

6

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

33/64 x 2 x 1/8

2-4шт.

6a

195-81030

WASHER

17/32 x 1,5 x 3/16, If Used

2шт.

7

117844A1

MOUNTING PARTS

Front; Used With 814-12090 Bolt; No Longer Used, Order 87405487 Mount

2шт.

7a

413153A1

RUBBER MOUNTING

Front; Without Metal Sleeve; Used With 86992193 Bolt; No Longer Used, Order 87405487 Mount; Not Illustrated

2шт.

7b

87405487

RUBBER MOUNTING

Front; With Metal Sleeve; Used With 87418165, 95 mm Long Bolt; Not Illustrated

2шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

Выбрано товаров: 14
