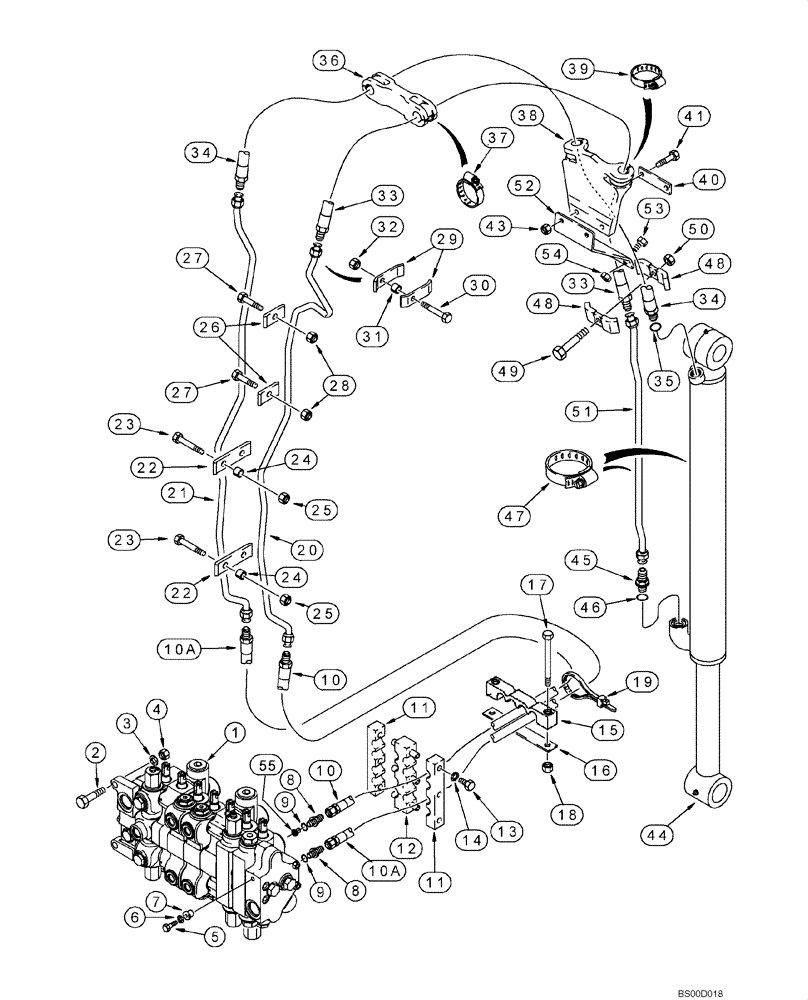

Запчасти Case 580SM (08-13) - HYDRAULICS - CYLINDER, BACKHOE BUCKET (MODELS WITH EXTENDABLE DIPPER) (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control; Backhoe Control Valve; For Correct Assembly and Components, See Figure(s) 08-38 - 08-39

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

10

393380A1

HYDRAULIC HOSE,15.88mm ID x 1295mm L

1295 mm (51 in)

1шт.

10a

393380A1

HYDRAULIC HOSE,15.88mm ID x 1295mm L

1295 mm (51 in)

1шт.

11

143439A1

CLAMP

2шт.

12

176226A1

CLAMP

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

14

892-11008

LOCK WASHER,8mm ID

6шт.

15

373833A1

CLAMP

1шт.

16

132212A1

PLATE

1шт.

17

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

20

187637A1

TUBE,19.05 mm OD, 1961, 224 mm Length

1шт.

21

187639A1

TUBE,19.05 mm OD, 1967, 60 mm Length

1шт.

22

133605A1

CLAMP

4шт.

23

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

8шт.

24

132930A1

SPACER

Replaces 360672A1

8шт.

25

832-10412

NUT,M12 x 1.75, Cl 8

8шт.

26

133604A1

CLAMP

4шт.

27

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

4шт.

28

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

29

D143426

CLAMP

4шт.

30

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

2шт.

31

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

2шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

33

108335A1

HYDRAULIC HOSE

1960 mm (77-1/8")

1шт.

34

108336A1

HYDRAULIC HOSE

1930 mm (76"); Incl Ref 35

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

36

103670A1

CLAMP,27mm ID

1шт.

37

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2,0 in; If Used

4шт.

37

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2,5 in; If Used

2шт.

38

184297A1

SUPPORT

1шт.

39

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2,0 in; If Used

2шт.

39

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2,5 in; If Used

2шт.

40

101479A1

SUPPORT

1шт.

41

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

43

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

44

235916A1

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 871.7mm Stroke

80 ID x 872 mm strk; Bucket Cylinder; See Figure 08-61

1шт.

44

235916A1R

REMAN-HYD CYLINDER

Reman New PN 235916A1

1шт.

44

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

45

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 46

1шт.

46

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

47

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

48

D40236

CLAMP

2шт.

49

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

50

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

51

314772A1

RIGID TUBE

1шт.

52

183736A1

SUPPORT

1шт.

53

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

54

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

55

182222A1

FITTING

Upper Valve Port

1шт.
