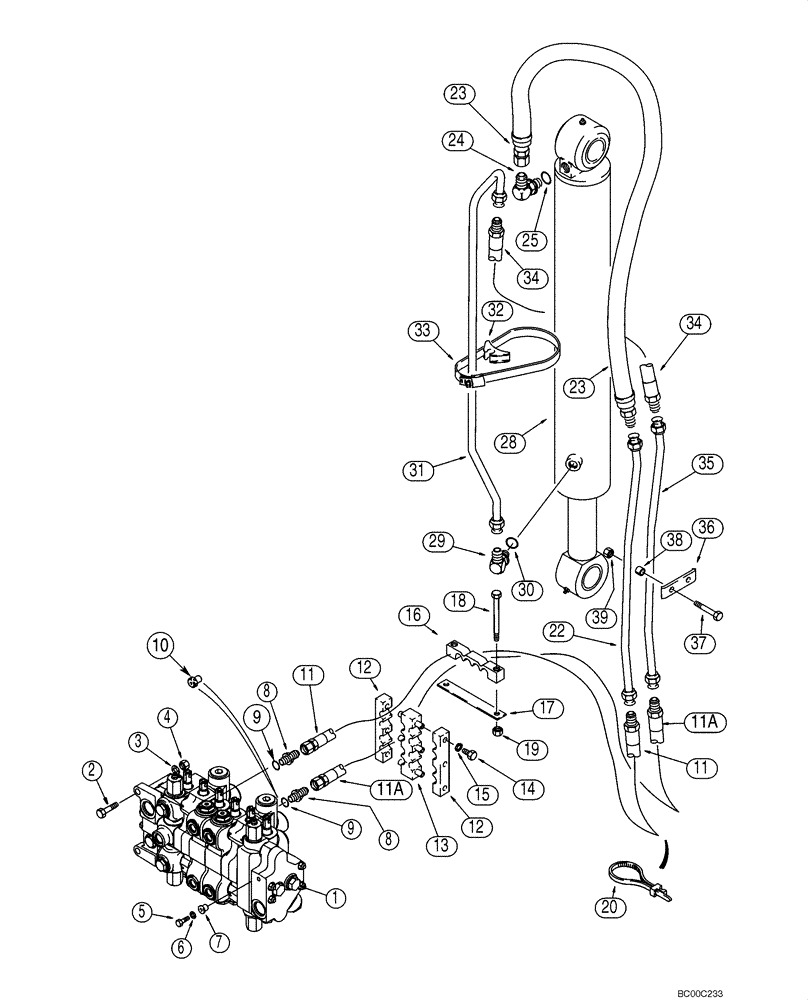

Запчасти Case 580SM (08-10) - HYDRAULICS - CYLINDER, BACKHOE BOOM (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control; Backhoe Control Valve; For Correct Assembly and Components, See Figure(s) 08-36 - 08-39

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

10

402331A1

RESTRICTOR

Lower Valve Port

1шт.

11

393378A1

HOSE ASSY.,15.88mm ID x 1248mm L

1248 mm (49-5/32 in); Upper Valve Port

1шт.

11a

393378A1

HOSE ASSY.,15.88mm ID x 1248mm L

1248 mm (49-5/32 in); Lower Valve Port

1шт.

12

143439A1

CLAMP

2шт.

13

176226A1

CLAMP

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

15

892-11008

LOCK WASHER,8mm ID

6шт.

16

373833A1

CLAMP

1шт.

17

132212A1

PLATE

1шт.

18

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

22

142120A1

HYD TUBE,19.05 mm OD, 726, 35 mm Length

1шт.

23

187845A1

HOSE,15.88mm ID x 1000mm L

1000 mm (39-3/8 in)

1шт.

24

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

28

378031A1

CYLINDER ASSY.

127 ID x 843 mm strk, 11,1 nom. wall; Tube Has Welded Spud; Boom Cylinder; Replaces 310844A1, 9,7 nom. wall; See Figure 08-59; If Used

1шт.

87408036R

REMAN-HYD CYLINDER

580SM, Reman For New P/N's 378031A1 & 87408036

1шт.

87408036C

CORE-HYD CYLINDER

Return Number

1шт.

28

87408036

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 842.5mm Stroke

127 ID x 843 strk; Includes Tube Seal; Boom Cylinder; See Figure 08-59; If Used

1шт.

87408036R

REMAN-HYD CYLINDER

580SM

1шт.

87408036C

CORE-HYD CYLINDER

Return Number

1шт.

29

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16 fl x 7/8 Or; Incl. Ref 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

31

142815A1

HYD TUBE,19.05 mm OD, 881, 157 mm Length

1шт.

32

D142787

SPACER

1шт.

33

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

34

177634A1

HOSE,15.88mm ID x 440mm L

440 mm (17-3/8 in)

1шт.

35

142122A1

HYD TUBE,19.05 mm OD, 775 mm Length

1шт.

36

133605A1

CLAMP

2шт.

37

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

38

132930A1

SPACER

Replaces 360672A1

4шт.

39

832-10412

NUT,M12 x 1.75, Cl 8

4шт.
