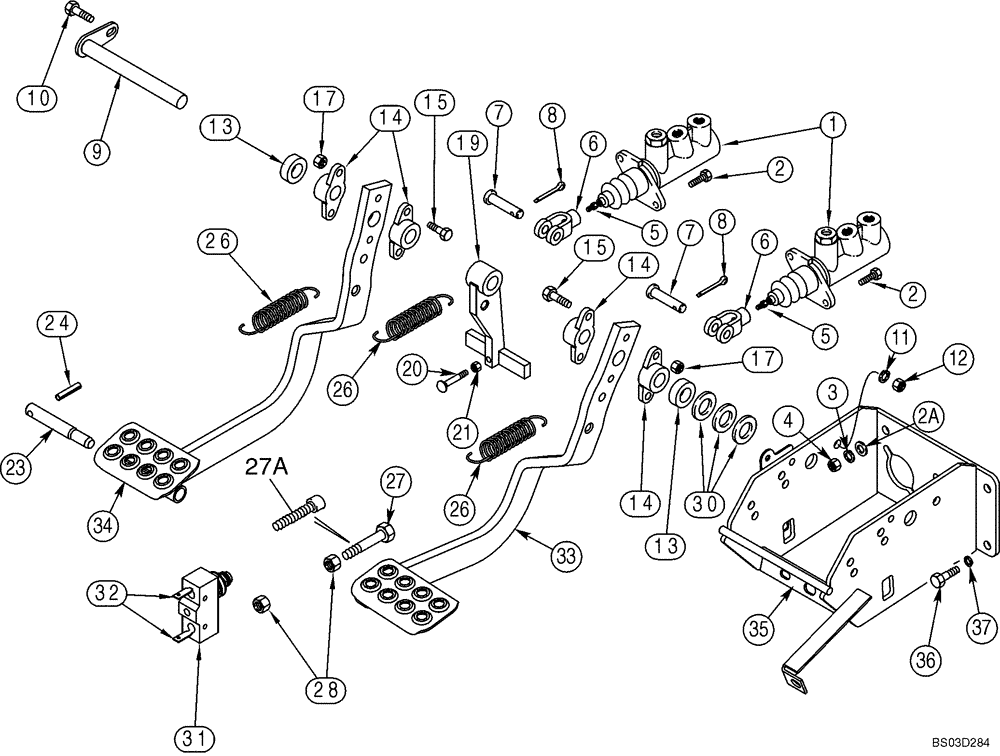

Запчасти Case 580SM (07-03) - BRAKE - PEDALS (07) - BRAKES

1

182445A1

MASTER CYLINDER,104.8mm Stroke

CYLINDER,MASTER See Figure 07-05

2шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

2a

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

892-11008

LOCK WASHER,8mm ID

4шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

5

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

6

D137077

CLEVIS

2шт.

7

L26209

PIN,11.07mm OD x 39.75mm L

3/8

2шт.

8

432-612

COTTER PIN,3/32" x 3/4"

2шт.

9

D140035

SHAFT,180mm L

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

11

892-11010

LOCK WASHER,M10

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

13

D124529

SPACER,19.5mm ID x 35mm OD x 12mm Thk

2шт.

14

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

4шт.

15

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

4шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

19

D124528

LEVER

Brake Lamp

1шт.

20

121-145

FLANGE BOLT,Elevator, Flat Csk, 5/16" - 18 x 2 1/2", Gr 2

1шт.

21

425-105

NUT,5/16"-18, G5

1шт.

23

D124530

PIN,15.85mm OD x 111mm L

1шт.

24

438-12040

LOCK PIN,5/16" x 2 1/2", Slotted

5/16" x 2 1/2", Slotted

1шт.

26

230973A1

SPRING,Extension, 23.876mm OD x 93.47mm L

3шт.

27

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

If Used

2шт.

27a

413870A1

ISOLATOR

Rubber Head, M8 x 45, Brake Pedal, If Used

2шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

30

495-81261

WASHER,13/16" x 1 1/2" x .067", HDN

13/16 x 1-1/2 x 1/16

1шт.

31

D148108

SWITCH

Push Button, Brake Lamp, Attaches To Front Console Wiring Harness

1шт.

32

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

Male

2шт.

33

339047A3

PEDAL ASSY.

Right-Hand; Replaces 339047A2

1шт.

34

339046A3

PEDAL ASSY.

Left-Hand; Replaces 339046A2

1шт.

35

338886A4

BRACKET

Brake Pedal and Brake Master Cylinder Mounting

1шт.

36

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

37

892-11008

LOCK WASHER,8mm ID

4шт.
