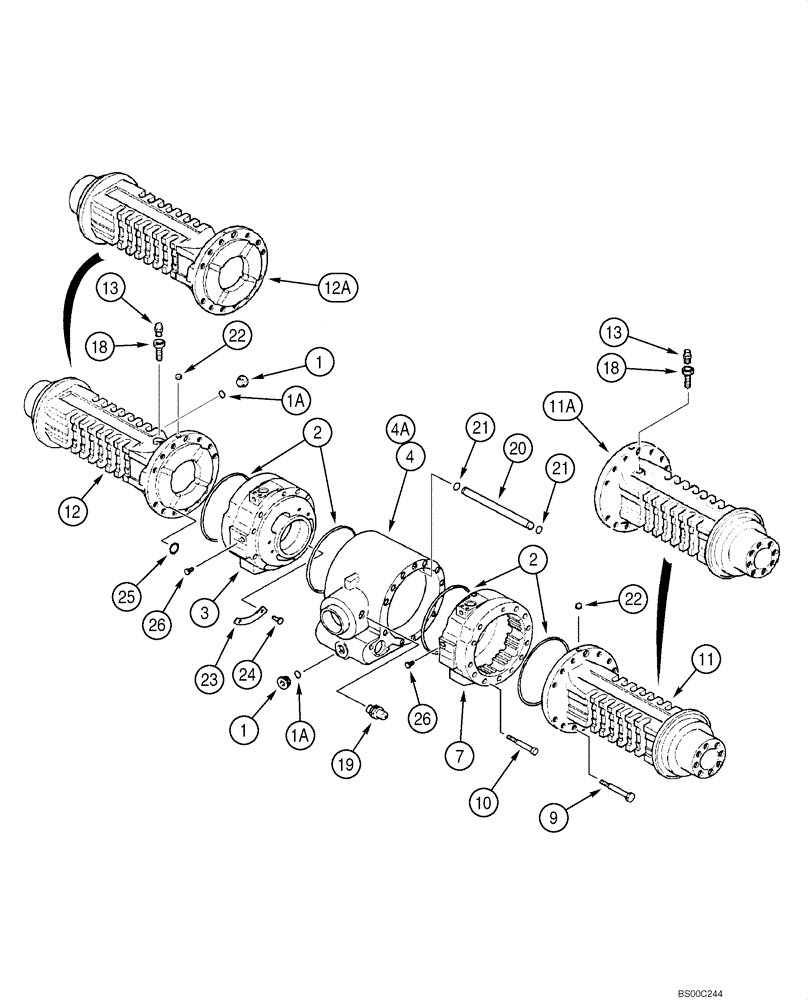

Запчасти Case 580SM (06-40) - AXLE, REAR DRIVE - HOUSING (06) - POWER TRAIN

384956A1

AXLE, REAR

AXLE REAR Models Without Powershift Transmission, Incl. Ref 1 - 26; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384956A1R

REMAN-REAR AXLE

REMANUFACTURED - Axle Rear, w/o Powershift Transmission

1шт.

384956A1C

CORE-REAR AXLE

Return Number, Rear, w/o Powershift Transmission

1шт.

384958A1

AXLE, REAR

AXLE REAR Models With Powershift Transmission, Incl. Ref 1 - 26; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384958A1R

REMAN-REAR AXLE

Remanufactured, Rear, w/Powershift Transmission

1шт.

384958A1C

CORE-REAR AXLE

Return Number, Rear, w/Powershift Transmission

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

Incl. Ref 1A

2шт.

1a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

2

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

1-1/16 ID x 3/32

4шт.

3

445266A1

FLANGE

Brake Cylinder, Right-Hand

1шт.

4

346585A1

HOUSING

Center, 384956A1 Axle

1шт.

4a

367195A1

HUB

HOUSING, Center, 384958A1 Axle

1шт.

7

445267A1

FLANGE

Brake Cylinder, Left-Hand

1шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

M12 x 130

2шт.

11

358279A1

HUB

Left-Hand, Without Breather Port, 384958A1 Axle

1шт.

11a

358280A1

HUB

Left-Hand, With Breather Port, 384956A1 Axle

1шт.

12

358281A1

HUB

Right-Hand, With Breather Port, 384958A1 Axle

1шт.

12a

358279A1

HUB

Right-Hand, Without Breather Port, 384956A1 Axle

1шт.

13

1966149C2

BREATHER

1шт.

18

E135750

AXLE PIN

Breather Extension

1шт.

19

393826A1

TEMPERATURE SENDER,3/6" - 16

Oil Temperature, Incl. 237-8008

1шт.

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

20

346584A1

TUBE

Internal

1шт.

21

346583A1

O-RING

2шт.

22

D142898

PLUG,M10 x 1

10 x 1 mm

2шт.

23

347959A1

PLATE

2шт.

24

347960A1

RIVET

4,8 x 6 mm

4шт.

25

P2230493

SEAL

8шт.

26

294245A1

CAP

7/16, If Used

2шт.
