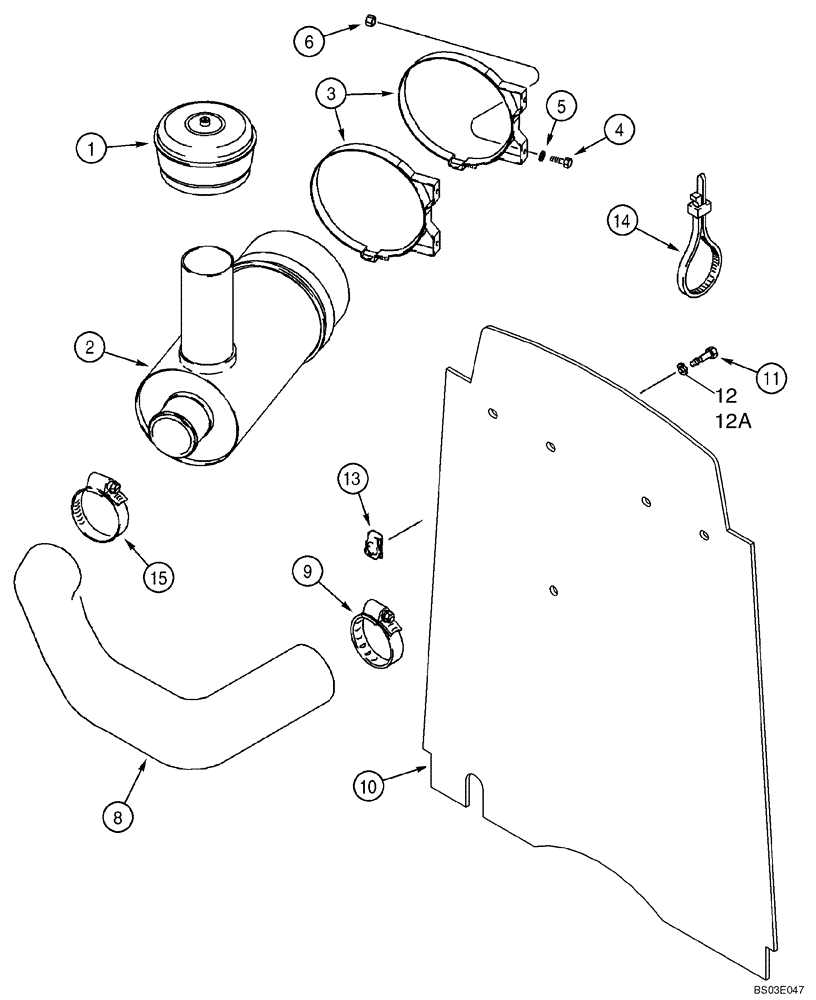

Запчасти Case 580SM (02-03) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

228120A1

PRECLEANER

See Figure 02-04

1шт.

2

293571A1

AIR CLEANER

See Figure 02-04

1шт.

3

70973

BRACKET

2шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

8

223944A1

INTAKE AIR HOSE,76.20 mm ID, SAE J200 or SAE J200

1шт.

9

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

1шт.

10

398315A1

CURTAIN

Barrier, Heat and Noise Reduction

1шт.

11

806-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9

4шт.

12a

495-81001

WASHER,5/16"

9,5 x 29 x 1,6 mm, If Used

4шт.

13

833-40408

NUT,M8, U

4шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

15

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Used

4шт.
