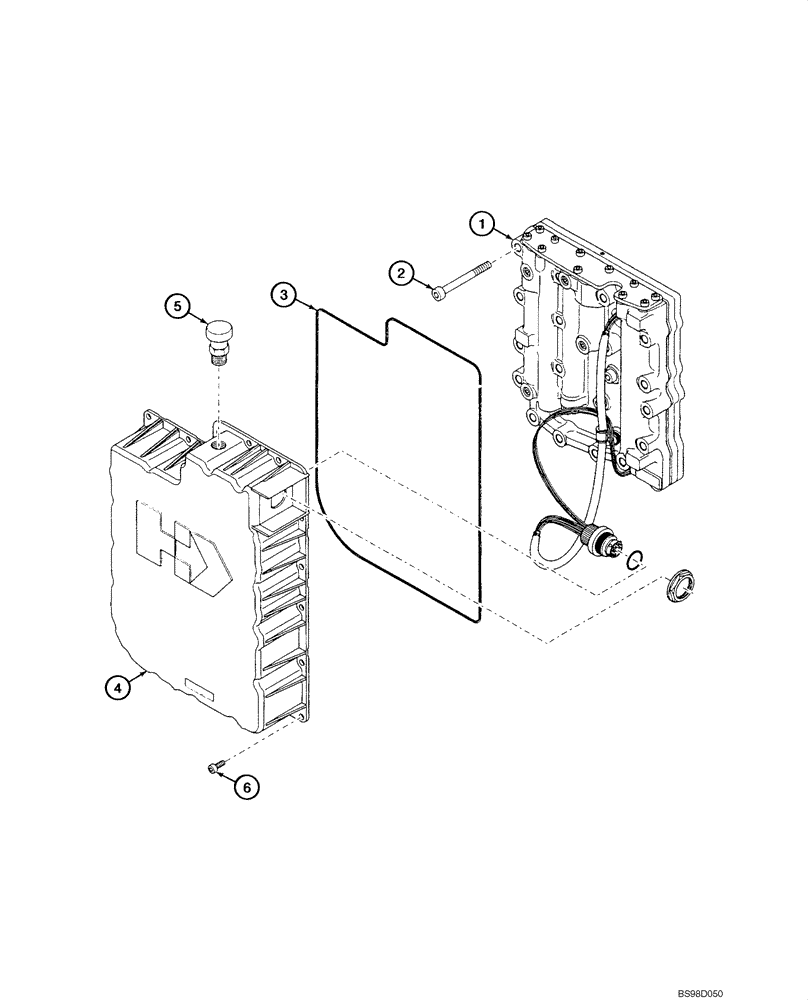

Запчасти Case 580SM (06-34) - TRANSMISSION ASSY, POWERSHIFT - MOUNTING, VALVE (06) - POWER TRAIN

336896A1

GEARBOX ASSY

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 6; Also Includes Parts On Figures 06-25 - 06-36; No Longer Available, Order 445174A1 Transmission

1шт.

87420798R

REMAN-TRANSMISSION

Reman, Transmission, Powershift; Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

445174A1

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 6; Also Includes Parts On Figures 06-25 - 06-36

1шт.

1

380005A1

CONTROL VALVE

Transmission Control Valve, See Figure 06-35

1шт.

2

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

M8 x 65

17шт.

3

291545A1

SEAL

1шт.

4

291577A1

HOUSING

Incl. Ref 5

1шт.

5

294013A1

BREATHER

1шт.

6

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

20шт.
