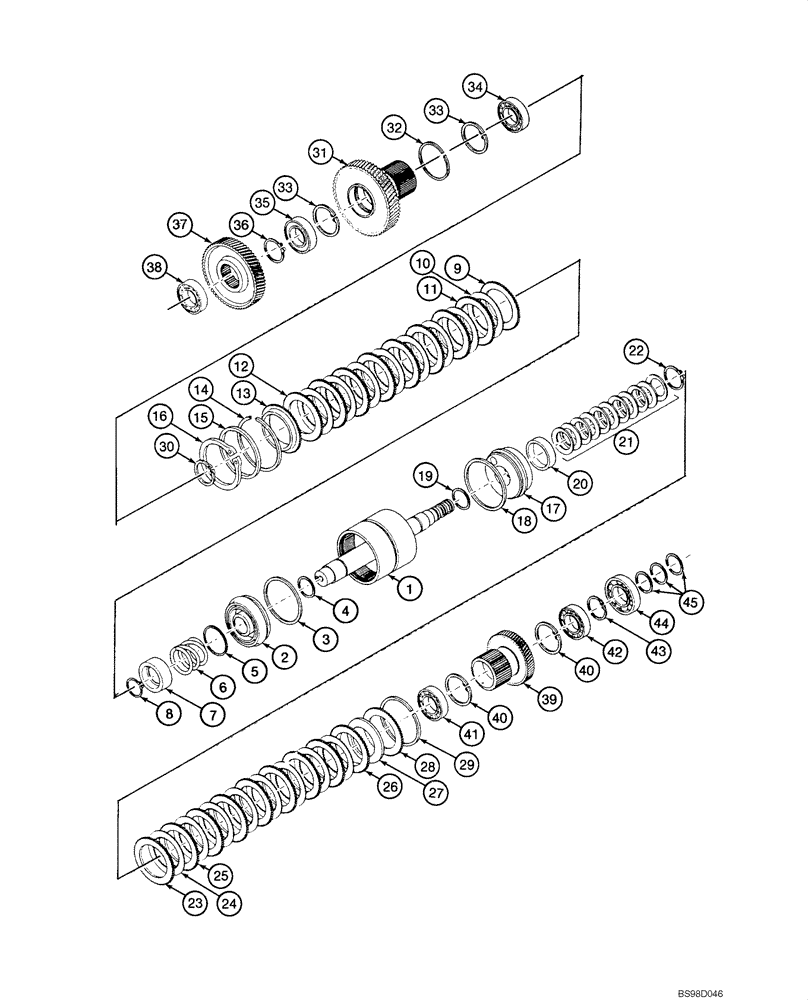

Запчасти Case 580SM (06-30) - TRANSMISSION ASSY, POWERSHIFT - CLUTCH, REVERSE DRIVE (06) - POWER TRAIN

REF

INSTRUCTION

First Gear - Reverse Drive, Clutch and Pinions

1шт.

336896A1

GEARBOX ASSY

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 45; Also Includes Parts On Figures 06-25 - 06-36; No Longer Available, Order 445174A1 Transmission

1шт.

87420798R

REMAN-TRANSMISSION

Reman, Transmission, Powershift; Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

445174A1

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 495 Also Includes Parts On Figures 06-25 - 06-36

1шт.

1

305727A1

SHAFT

Drum, First Gear - Reverse; 336896A1 Transmission

1шт.

1

445314A1

SHAFT ASSY.

Drum, First Gear - Reverse; 445174A1 Transmission

1шт.

2

291520A1

PISTON

Incl. Ref 3, 4

1шт.

3

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

Ring

1шт.

4

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

1шт.

5

291529A1

RING

Wear Ring

1шт.

6

291531A1

SPRING

1шт.

7

291530A1

RETAINER

Seat

1шт.

8

100-11196

SNAP RING,#196, Ext

1шт.

9

291578A1

DISC

Friction

1шт.

10

291580A1

DISC

Friction

8шт.

11

291579A1

DISC

Friction

7шт.

12

291578A1

DISC

Friction

1шт.

13

291566A1

DISC

Backing Plate

1шт.

14

292415A1

RING, SNAP

RING SNAP Retaining Ring

1шт.

15

291567A1

SPACER

336896A1 Transmission; If Used

1шт.

16

800-11115

SNAP RING,M115, Ext

1шт.

17

291520A1

PISTON

Incl. Ref 18, 19

1шт.

18

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

Ring

1шт.

19

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

1шт.

20

305730A1

PLATE

Wear Ring

1шт.

21

291591A1

KIT

Kit, Belleville Springs

1шт.

22

100-11196

SNAP RING,#196, Ext

1шт.

23

291578A1

DISC

Friction

1шт.

24

291580A1

DISC

Friction

8шт.

25

291579A1

DISC

Friction

7шт.

26

291578A1

DISC

Friction

1шт.

27

291533A1

WASHER

Spacer

1шт.

28

291571A1

DISC

Backing Plate

1шт.

29

292415A1

RING, SNAP

RING SNAP Retaining Ring

1шт.

30

800-1150

SNAP RING,M50, Ext

No. 50

1шт.

31

291558A1

PINION

Gear, Forward/Reverse Clutch, 54T

1шт.

32

291573A1

CIRCLIP

Retaining Ring

1шт.

33

800-2180

SNAP RING,M80, Int

2шт.

34

292426A1

BALL BEARING

1шт.

35

292431A1

BALL BEARING

1шт.

36

800-1150

SNAP RING,M50, Ext

No. 50

1шт.

37

291552A1

PINION

Gear, Reverse Driven, 50T

1шт.

38

292432A1

BALL BEARING

1шт.

39

291557A1

PINION

Gear, First Clutch, 30T

1шт.

40

800-2175

SNAP RING,M75, Int

No. 75

2шт.

41

292425A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.

42

292428A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.

43

800-1145

SNAP RING,M45, Ext

1шт.

44

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

45

291528A1

SEALING RING

SEALRING Seal Ring

3шт.
